Dimensions

External dimensions
External dimensions: 4,288mm long, 1,812mm wide, 1,615mm high, 2,644mm wheelbase, 1,488mm front track, 1,509mm rear track, 11,060mm turning circle (kerb to kerb), 11,480mm turning circle (wall to wall), 168.8 inches long, 71.3 inches wide, 63.6 inches hig
Fuel tanks
54 litre, 11.9 UK gallon main fuel tank
Internal dimensions
Internal dimensions: front headroom (mm): 1,019, front headroom (inches): 40.1, rear headroom (mm): 974, rear headroom (inches): 38.3, front leg room (mm): 1,034, front leg room (inches): 40.7, rear leg room (mm): 960, rear leg room (inches): 37.8, front

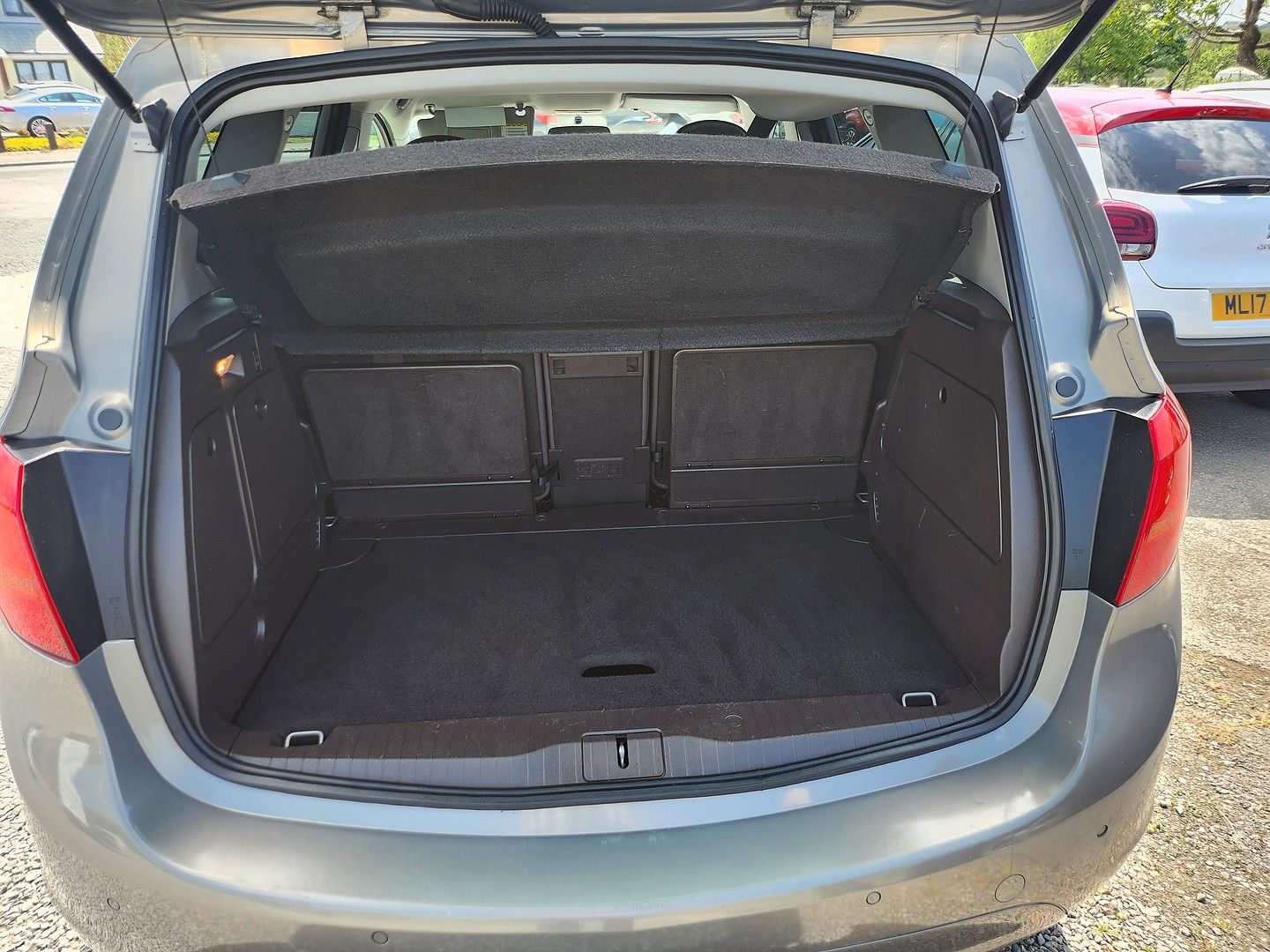

Load compartment capacity
Load compartment capacity: 397 litres with rear seats up filled to lower edge of window, 1,496 litres with rear seats down filled to ceiling, 14.0 cu ft with rear seats up filled to lower edge of window and 52.8 cu ft with rear seats down filled to ceilin
Weights
Weights: gross vehicle weight rating (kg): 2,046, gross vehicle weight rating (lbs): 4,511, curb weight (kg): 1,443, curb weight (lbs): 3,181, gross trailer weight braked (kg): 1,200, gross trailer weight braked (lbs): 2,646, gross trailer weight unbraked

Exterior

Aerial
Roof aerial
Bumpers
Painted front and rear bumpers
Day time running lights
Day time running lights
Door mirrors/cameras
Body colour power door mirrors ; heated
LED lights
LED high mounted brake light
Non-corrosive body
Galvanised body
Paint
Gloss paint
Rear windscreen
Rear windscreen with intermittent wiper
Tinted glass
Tinted glass
Tyre kit
Tyre kit
Tyres
Front and rear tyres: 16 inch diameter, 205mm wide, 55% profile, H rated ; Load index: 91 (official data)

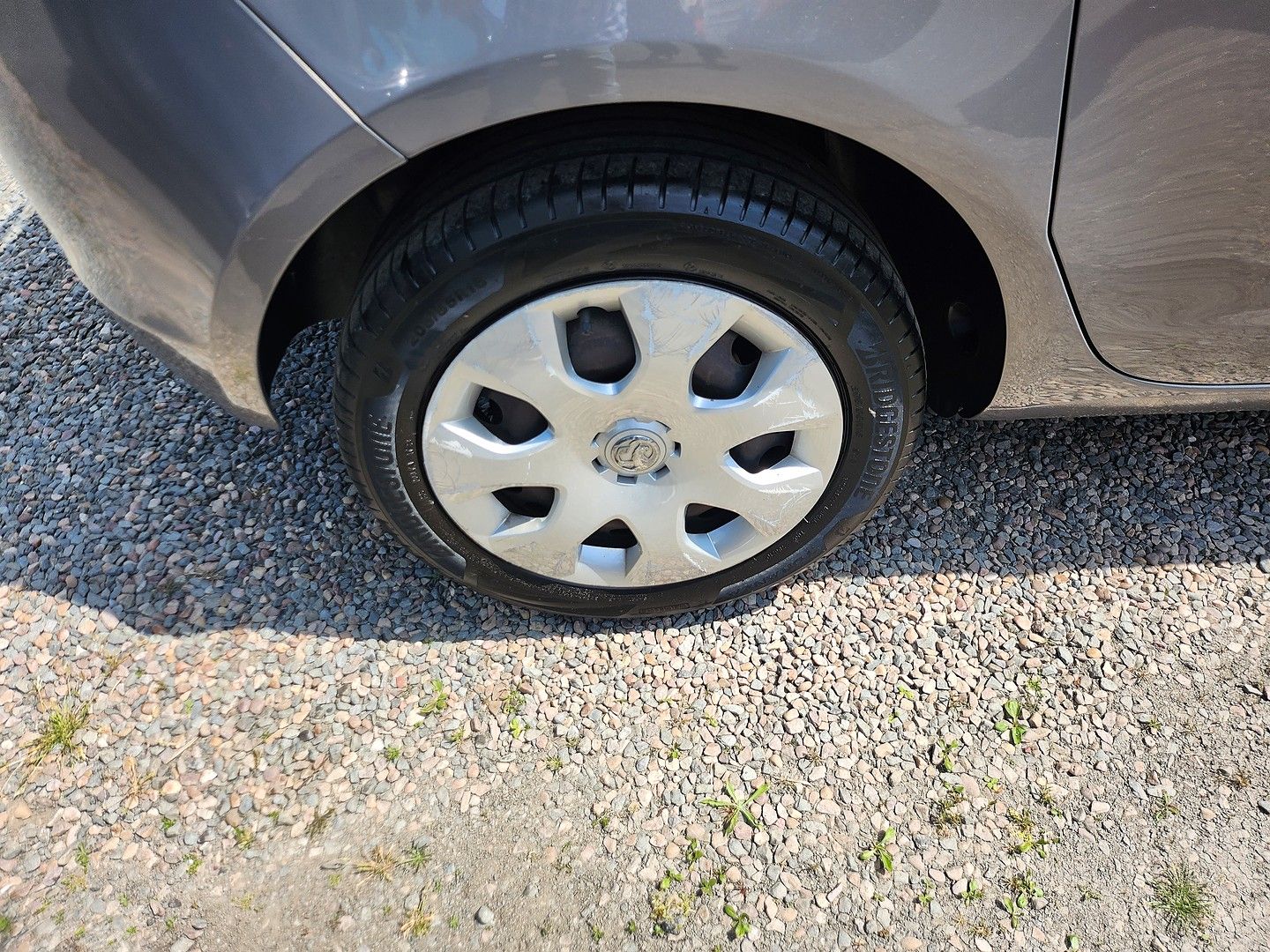

Wheels
Front and rear wheels: 16 inch steel rims ; width: 6.5 inches
Windscreen wipers
Windscreen wipers

Interior

12v power outlet
12v power outlet located in front section and rear section
Air conditioning
Air conditioning
Audio player

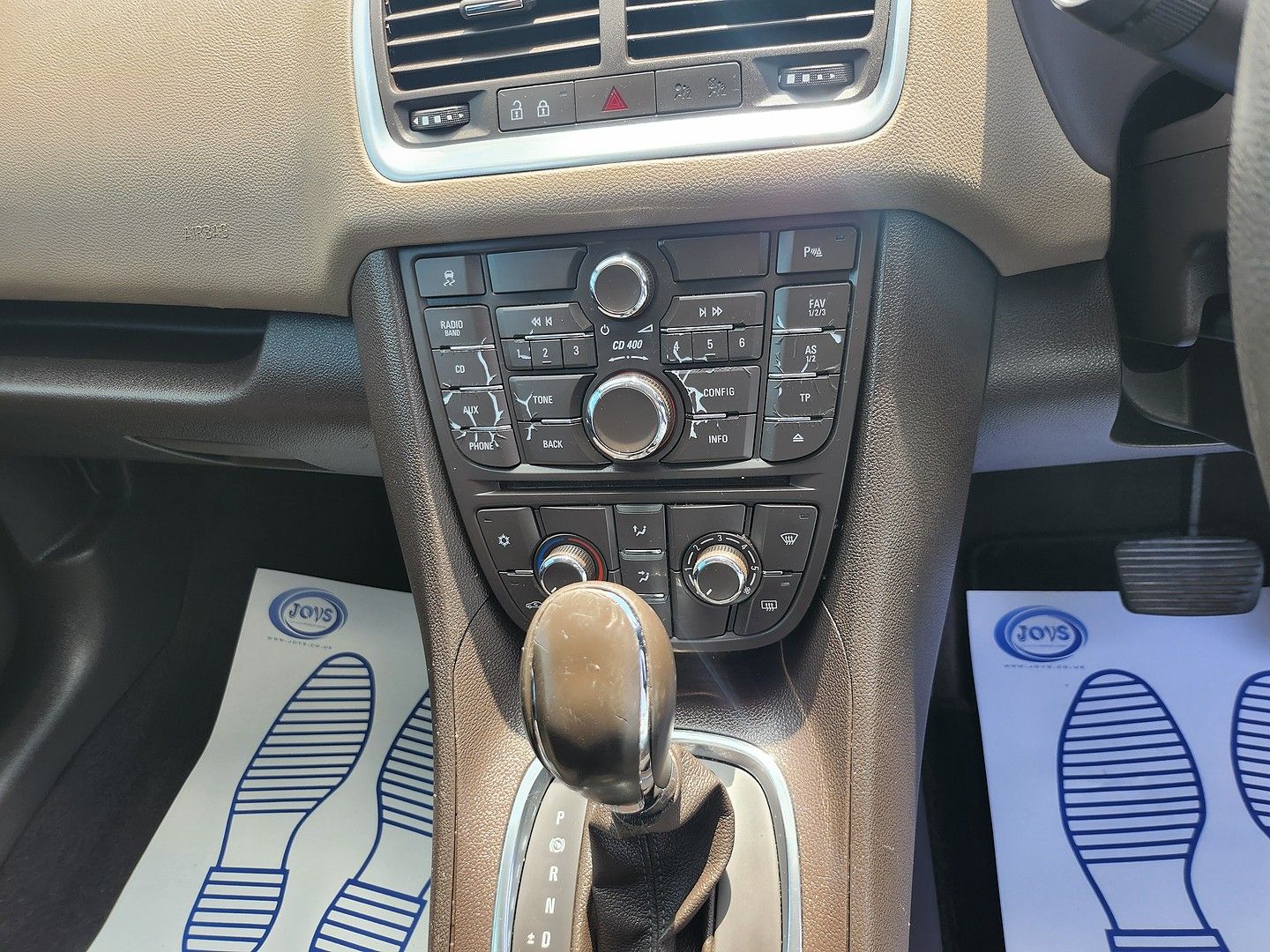

Audio system with CD player that reads MP3 CDs ; radio receives AM/FM and RDS
Central door locking
Central door locking: Operated by remote Includes dead bolt
Connection to ext.entertainment devices
Connections for USB and auxiliary audio devices
Console
Floor console
Cup holders
Cup holders for front seats
Doors
Front hinged drivers door, rear hinged rear door on drivers side, front hinged front passenger door, rear hinged rear door on passenger side
Electric windows
Front electric windows with one-touch on two windows
Electronic hand brake
Electronic hand brake
External temperature
External temperature
Front seat

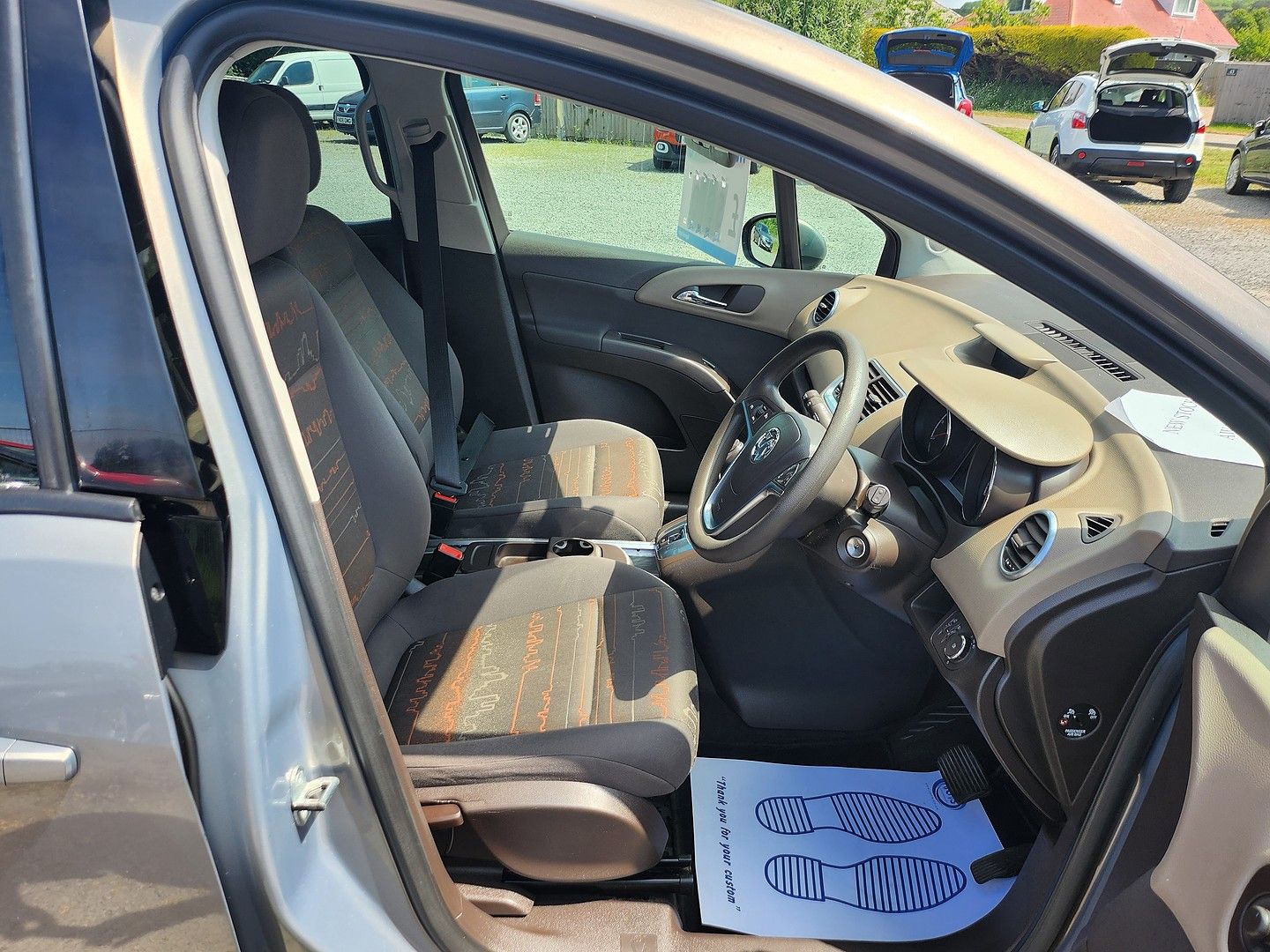

Driver seat: individual type adjustable height, passenger seat: individual type

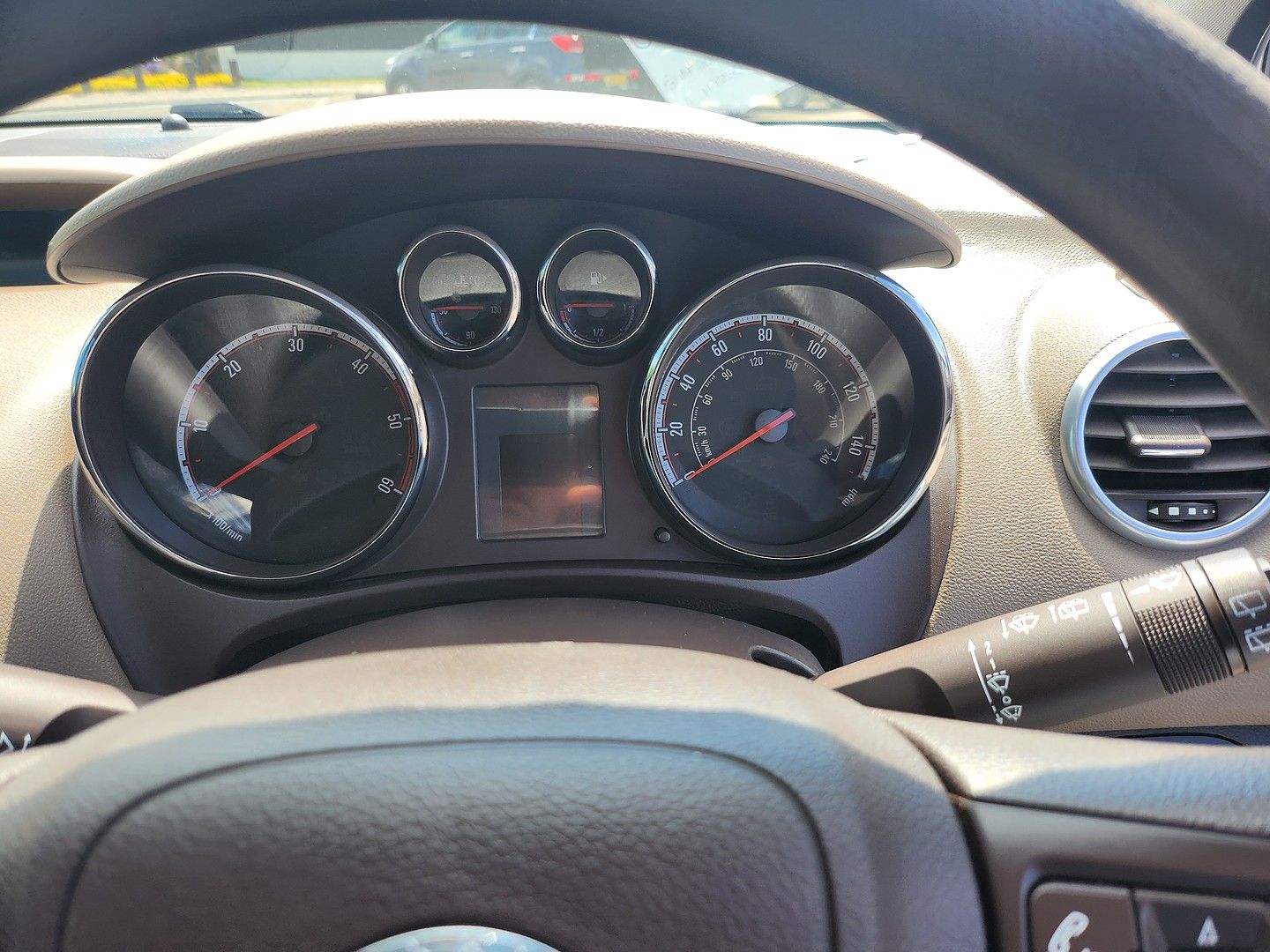

Instrument cluster
Analogue dashboard
Instrument panel
Analogue dashboard
Load area light
Load area light
Load restraint
Load restraint
Luxury trim
Alloy look trim on centre console and alloy & leather gearknob
Reading lights
Front reading lights
Rear door
Lifting gate rear door
Rear seats

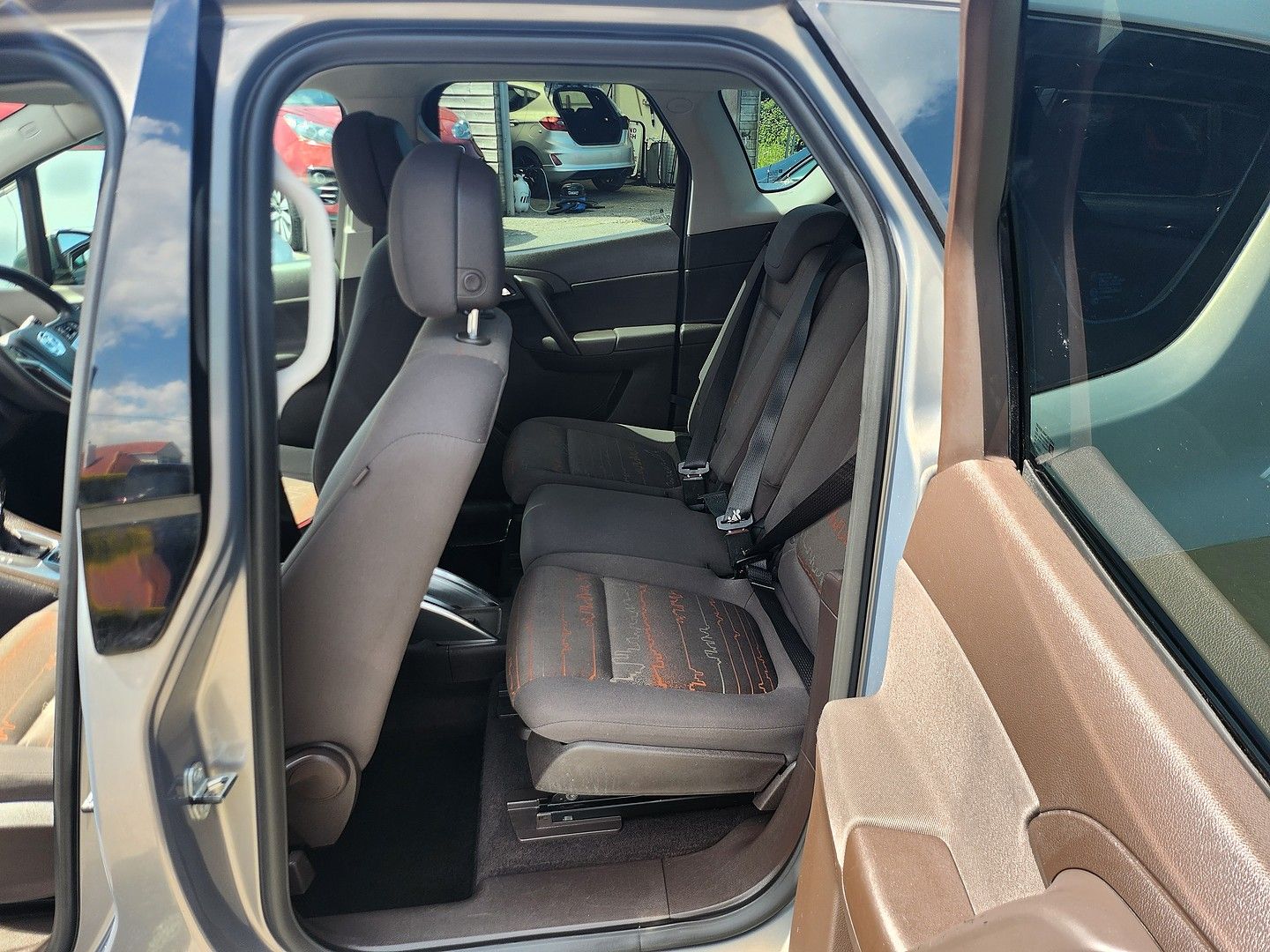

40/20/40 split folding rear seats: 40/20/40 type with space for three people; folds flat to floor with zero electric adjustments and reach adjustment
Rear view mirror
Rear view mirror
Rear view mirror/camera
Rear view mirror

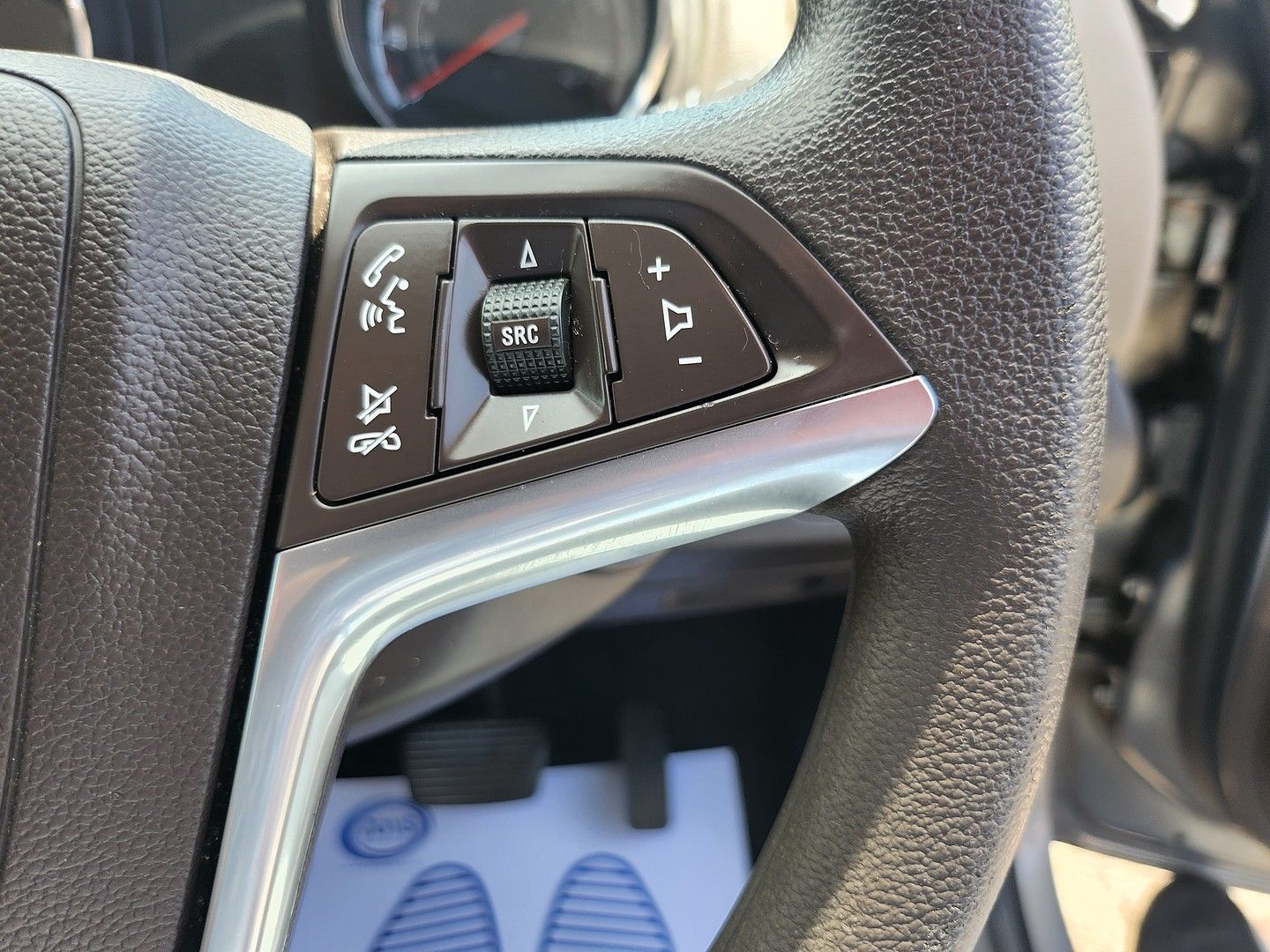

Remote audio controls
Steering wheel mounted remote audio controls
Seat upholstery
Cloth and cloth seat upholstery
Seating
Five seats configured 2+3
Service interval indicator
Service interval indicator
Speakers
Seven speakers
Steering wheel

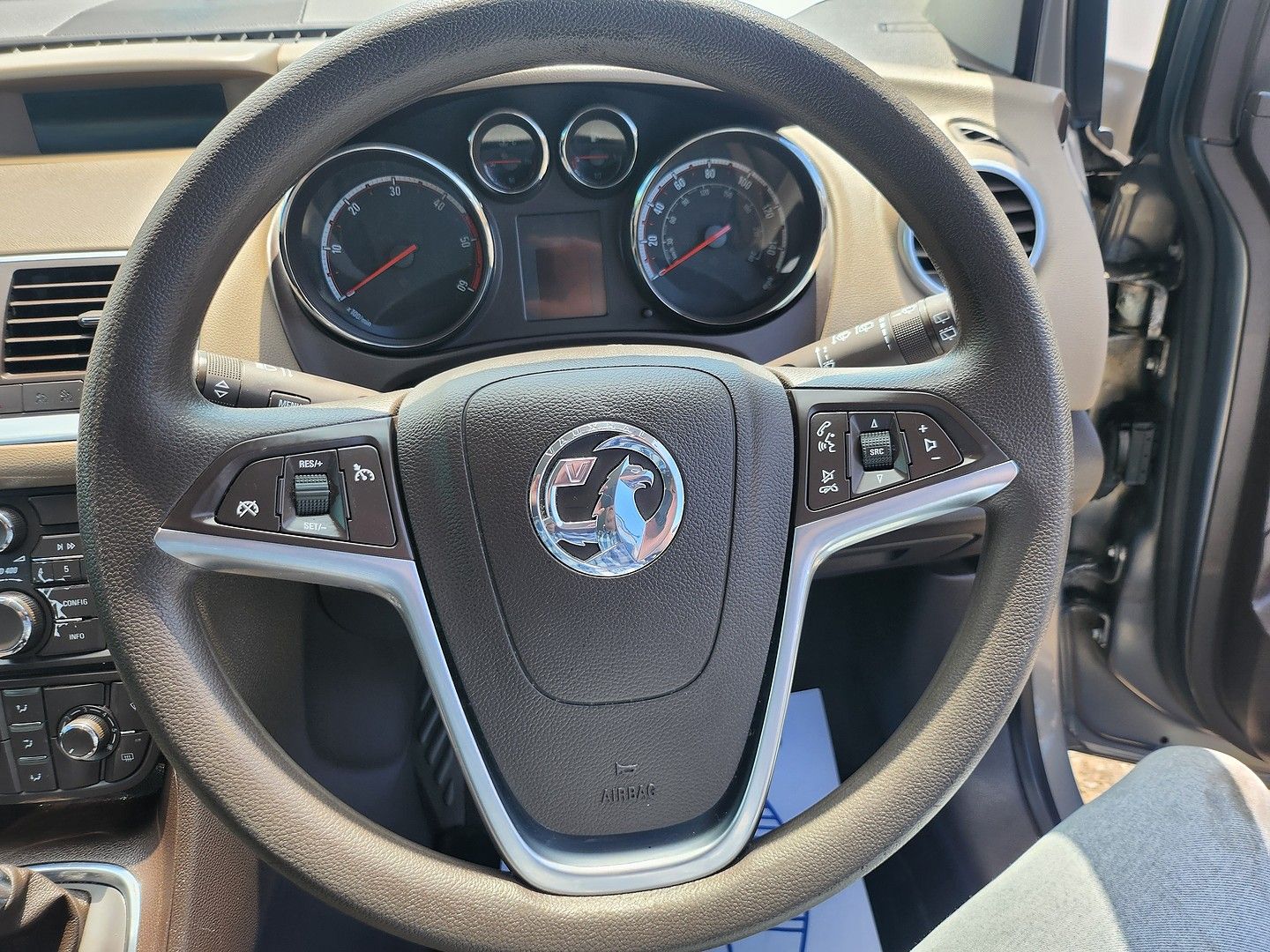

Plastic multi-function steering wheel with tilt adjustment and telescopic adjustment
Tachometer
Tachometer
Vanity mirror
Driver and passenger vanity mirror
Ventilation system
Ventilation system with air filter

Others

Body style

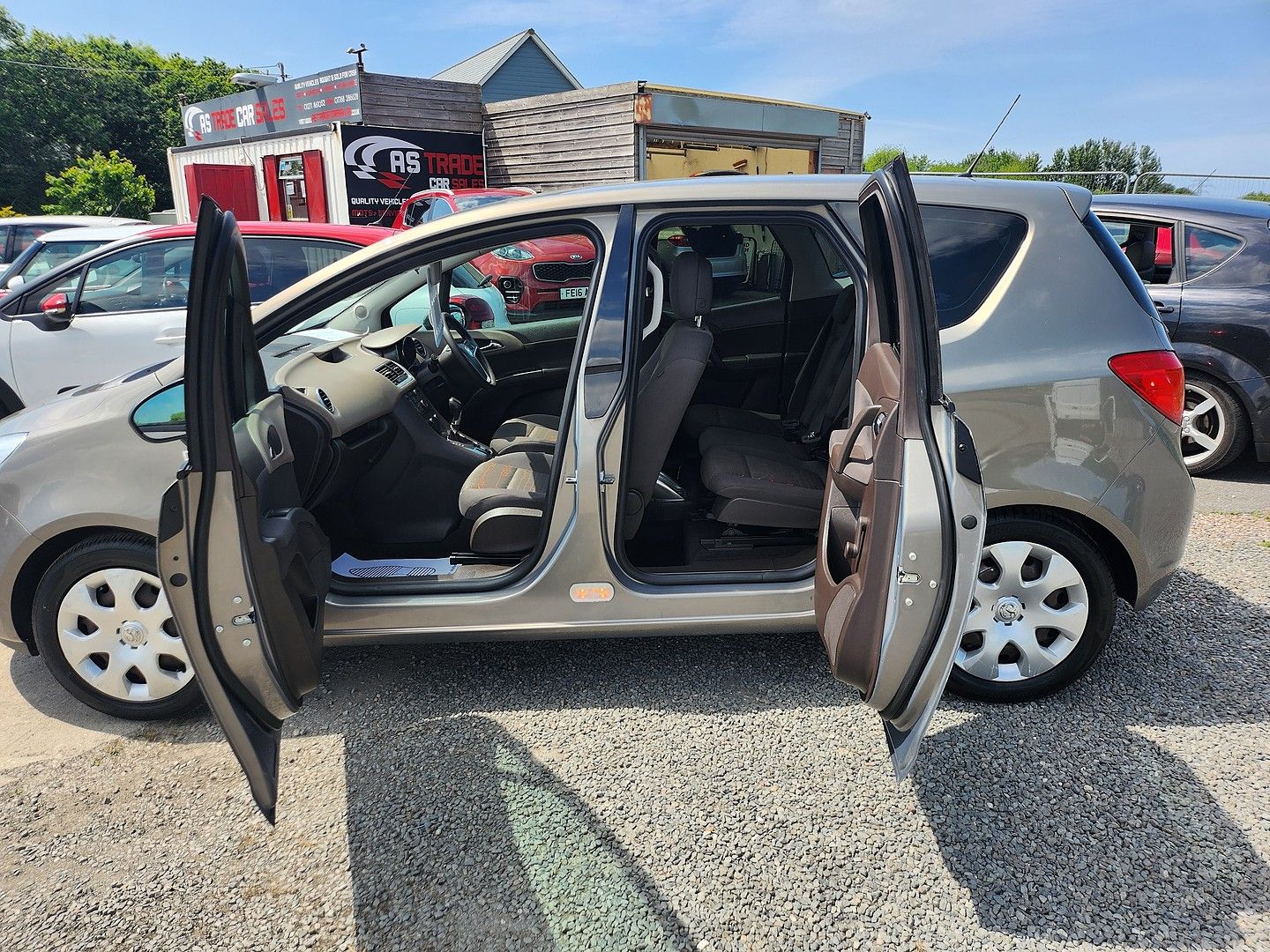

Five door mini MPV ; Platform code: SCCS, Right hand drive
Cargo area cover/rear parcel shelf
Rigid cargo area cover/rear parcel shelf
Charges
Charges: VAT [20%] = 3,380.00, VED (Band H) = 190.00, FRF = 55.00, Showroom Tax = 265.00
Data completeness
Data completeness: up to date pricing data, up to date data for key leasing items, specifications data from official documentation, up to date colour & trim data, up to date option pricing data, up to date option content data and up to date incentives dat
Date introduced
Date introduced: Model introduced 01/04/2010 and Version introduced 01/04/2010
Delivery charges
Fixed delivery charges: 700.00, 583.33 (excluding VAT) fuel included 0 litres includes number plates
Global segment
Global segment
Insurance
Insurance: 12E
Regional segment
Regional segment
Trim
EXCLUSIV trim level - JATO classification: L1
Warranty anti-corrosion
Anticorrosion warranty: 72 months, Unlimited miles, Unlimited km
Warranty paint
Paint warranty: 12 months, Unlimited miles, Unlimited km
Warranty powertrain - Total
Powertrain warranty: 999 months, 100,000 miles, 160,934 km
Warranty roadside assistance
Road-side assistance warranty: 12 months, Unlimited miles, Unlimited km
Warranty whole vehicle - Total
Vehicle warranty: 999 months, 100,000 miles, 160,934 km

Safety

ABS
ABS
Brake assist system
Brake assist system
Cornering brake control
Cornering brake control
Crash test results
Euro NCAP crash test results: Overall: 5.0, Adult occupant: 89.0, Child occupant: 77.0, Pedestrian: 55.0, Safety assist: 86.0, Version tested: Vauxhall Meriva 1.4 Enjoy 5dr MM, Date tested: 24/11/2010
Disc brakes
Four disc brakes including two ventilated discs
Electronic brake distribution
Electronic brake distribution
Electronic traction control
Electronic traction control
Front airbag
Drivers airbag, passengers airbag with de-activation switch
Front seat belts
Height adjustable seat belt with pre-tensioners on drivers seat and front passenger seat
Head restraints
Two active head restraints on front seats with height adjustment, three head restraints on rear seats with height adjustment
Headlight control
Headlight controlsystems: height adjustment
Headlights
Halogen headlights
Isofix preparation
Isofix preparation
Rear seat belts
Seat belt on driver side rear seat, seat belt on passenger side rear seat, 3-point seat belt on central rear seat
Side airbag
Front side airbag
Side curtain airbag
Front and rear side curtain airbags
Stability control
Stability controlsystem

Technical

Compressor
Turbo-charger
Cruise control

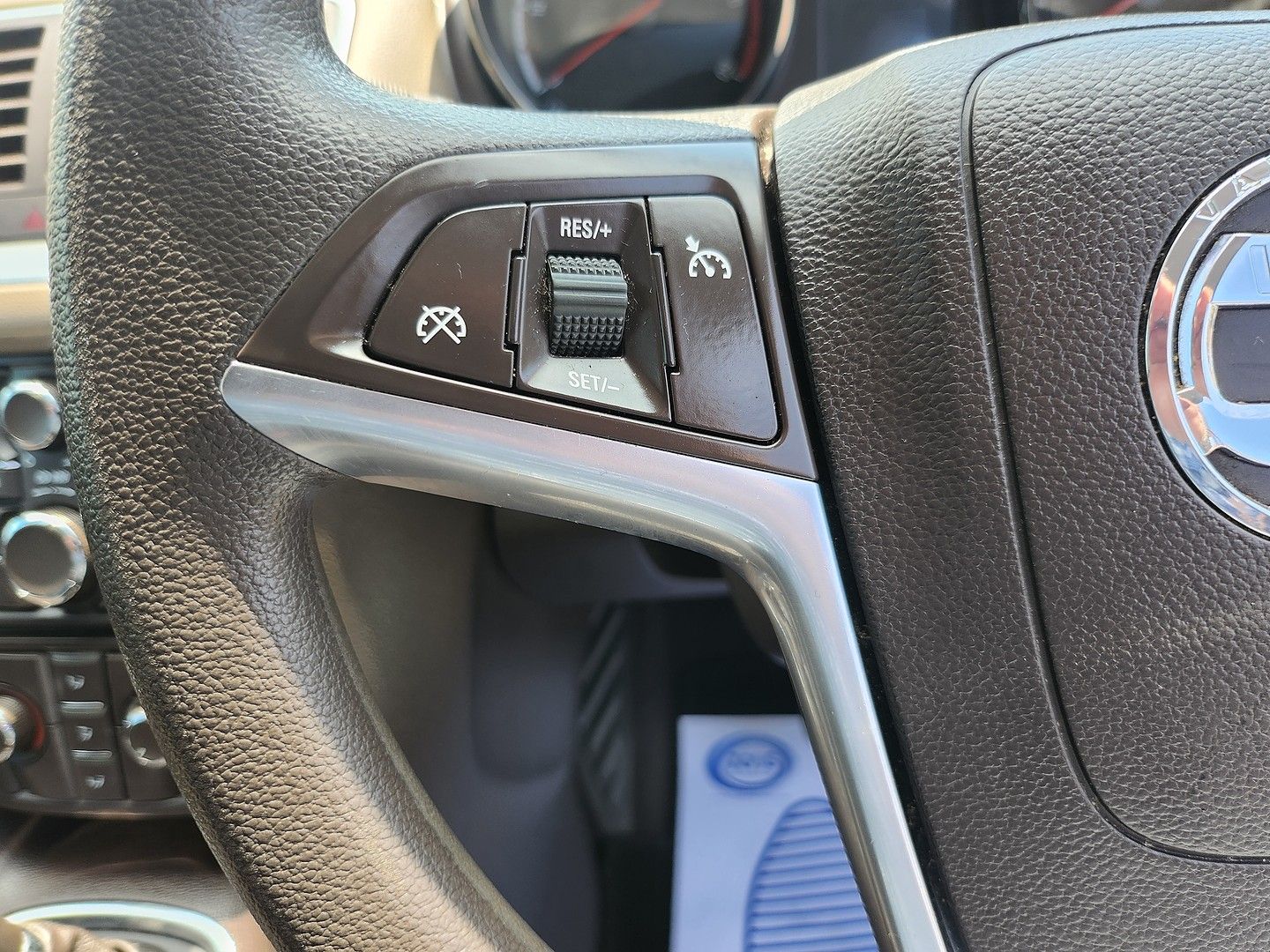

Cruise control
Drive
Front-wheel drive
Emission control level
Emissions: EU5 compliant, 168 g/km CO2 (min), 168 g/km CO2 (max), 0.040 g/km carbon monoxide, 0.176 g/km HC+NOx, 0.162 g/km NOx and 0.530 g/km particulate matter
Engine
1,686 cc 1.7 litres in-line 4 engine with 79.0 mm bore, 86.0 mm stroke, 18.0 compression ratio, double overhead cam and four valves per cylinder
Fuel
Primary fuel type: diesel
Fuel consumption
Fuel consumption: 8.6 l/100km (urban), 5.1 l/100km (country/highway), 6.4 l/100km (combined), 27 mpg (urban US), 46 mpg (country/highway US), 37 mpg (combined US), 11.6 km/l (urban), 19.6 km/l (country/highway), 15.6 km/l (combined), 33 mpg (urban UK), 55
Fuel system
Fuel system: common rail diesel
Main service
Main servicerequired after 32,187 km, 20,000 miles, 12 months
Particle filter system
Particle filter system
Performance
Performance: maximum speed 107 mph, 172 km/h acceleration 13.9 seconds (0-100 km/h)
Power
Power: (from primary fuel) 74 kW , 100 HP DIN @ 4,000 rpm; , 260 Nm @ 1,700 rpm
Power steering
Type speed proportional power steering
Powertrain
Powertrain: internal combustion engine
Powertrain type
Powertrain: internal combustion engine
Suspension
Independent strut front suspension with anti-roll bar and coil springs, semi-independent torsion beam rear suspension with coil springs
Traffic light coding
Traffic light A-G coding: efficiency label H
Transmission
Automatic six-speed transmission with manual mode, shift lever on floor, 4.150:1 first gear ratio, 2.370:1 second gear ratio, 1.560:1 third gear ratio, 1.160:1 fourth gear ratio, 0.860:1 fifth gear ratio, 0.690:1 sixth gear ratio and 3.390:1 reverse gear
