Dimensions

4X4 specifics
22.4 degree maximum slope approach angle and 27.8 degree maximum slope departure angle
External dimensions
External dimensions: 4,440mm long, 1,855mm wide, 1,640mm high, 172mm ground clearance, 2,640mm wheelbase, 1,614mm front track, 1,615mm rear track, 10,580mm turning circle (kerb to kerb), 174.8 inches long, 73.0 inches wide, 64.6 inches high, 6.8 inch grou
Fuel tanks
58 litre, 12.8 UK gallon main fuel tank
Internal dimensions
Internal dimensions: front headroom (mm): 992, front headroom (inches): 39.1, rear headroom (mm): 977, rear headroom (inches): 38.5, front hip room (mm): 1,364, front hip room (inches): 53.7, rear hip room (mm): 1,246, rear hip room (inches): 49.1, front
Load compartment capacity
Load compartment capacity: 465 litres with rear seats up filled to lower edge of window, 1,353 litres with rear seats down filled to ceiling, 16.4 cu ft with rear seats up filled to lower edge of window and 47.8 cu ft with rear seats down filled to ceilin
Ramp angles
22.4 degree maximum slope approach angle and 27.8 degree maximum slope departure angle
Weights
Weights: Kerb weight (kg): 1,676, Kerb weight (lbs): 3,695, Kerb weight includes driver, Gross vehicle weight rating (kg): 2,140, Gross vehicle weight rating (lbs): 4,718, Gross trailer weight braked (kg): 1,600, Gross trailer weight braked (lbs): 3,527,

Exterior

Aerial
Aerial
Bumpers
Front and rear bumpers
Chrome/bright trim
Chrome/bright trim around side windows and on bumpers
Cornering lights/kerb illumination
Cornering lights/kerb illumination
Day time running lights
Day time running lights
Door mirrors/cameras
Body colour power door mirrors ; heated with integrated indicator lights
Electrically foldable mirrors
Electrically foldable mirrors
Front fog lights
Front fog lights
Glass roof
Glass roof
Headlight cleaners
Headlight cleaners
LED lights
LED brake lights, side indicator lights, day time running lights and rear lights
Paint
Gloss paint

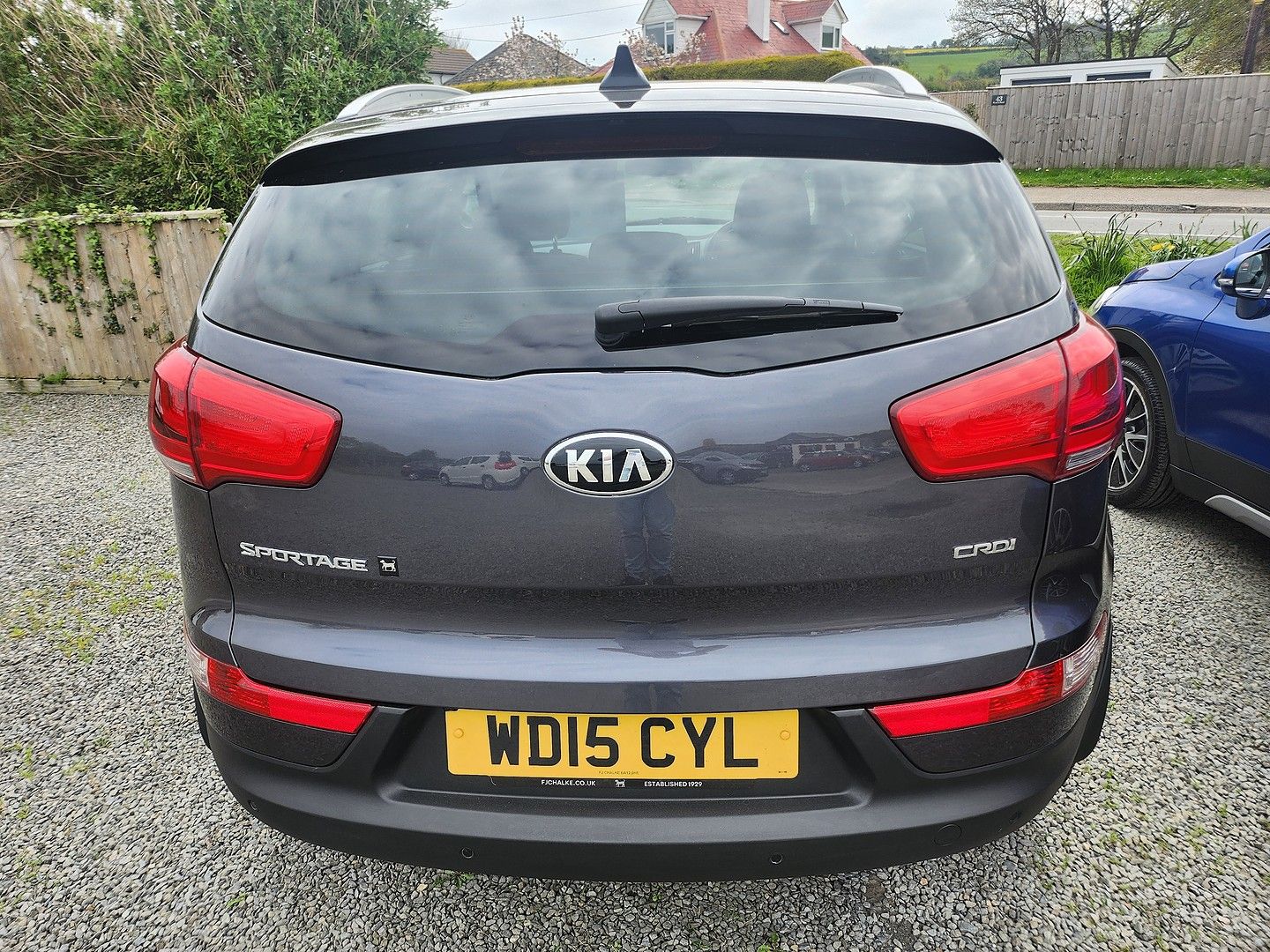

Rear windscreen
Rear windscreen with intermittent wiper
Roof rails
Chrome/silver roof rails
Spare wheel
Full size alloy spare wheel
Spoiler
Roof spoiler
Tinted glass
Tinted glass

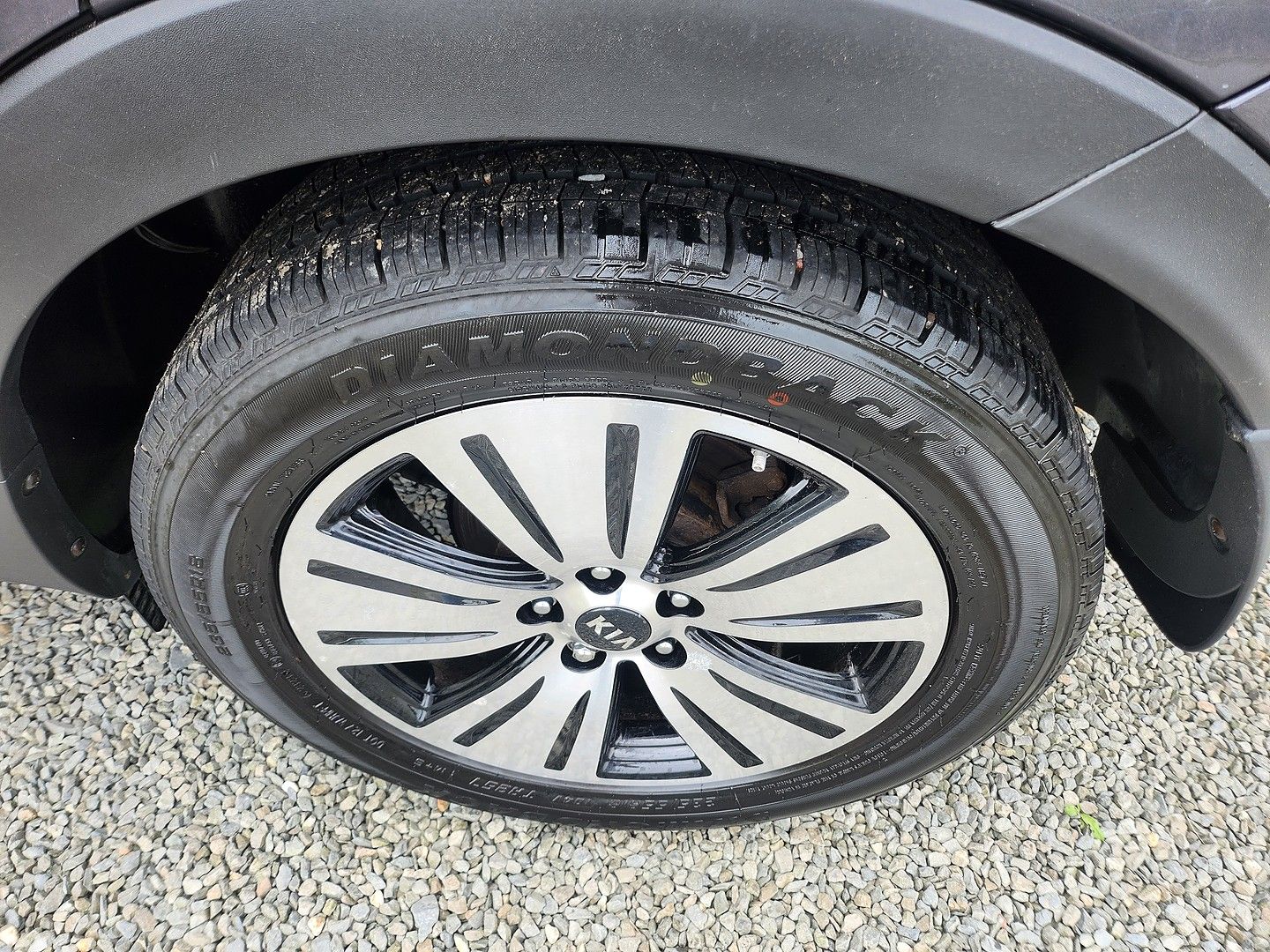

Tyres
Front and rear tyres: 18 inch diameter, 235mm wide, 55% profile, H rated ; Load index: 100 (official data)
Wheels
Front and rear wheels: 18 inch alloy rims ; width: 7.0 inches
Windscreen wipers
Rain sensing windscreen wipers
Zone tinted windscreen
Zone tinted windscreen

Interior

12v power outlet
12v power outlet located in cargo section and front section
Air conditioning

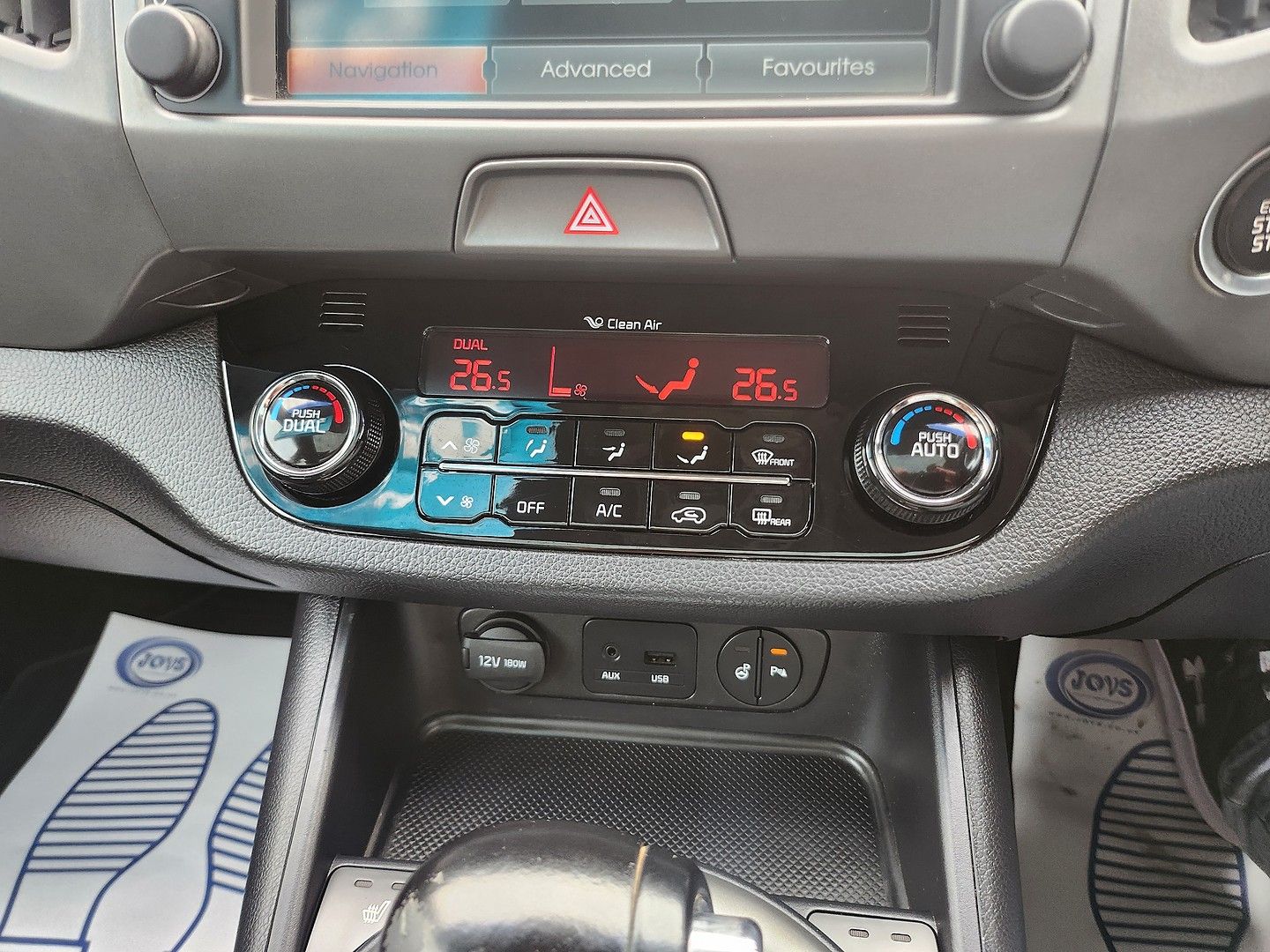

Automatic air conditioning with two climate control zones
Audio player
Audio system with touch screen and CD player that reads MP3 CDs ; radio receives AM/FM/LW and RDS colour screen
Bluetooth
Bluetooth includes phone connection and music streaming
Central door locking
Central door locking: Operated by card key Includes dead bolt
Computer
Computer includes average speed, average fuel consumption, instantaneous fuel consumption and range for remaining fuel
Connection to ext.entertainment devices
Connections for USB (front) and auxiliary audio devices (front)
Console
Floor console

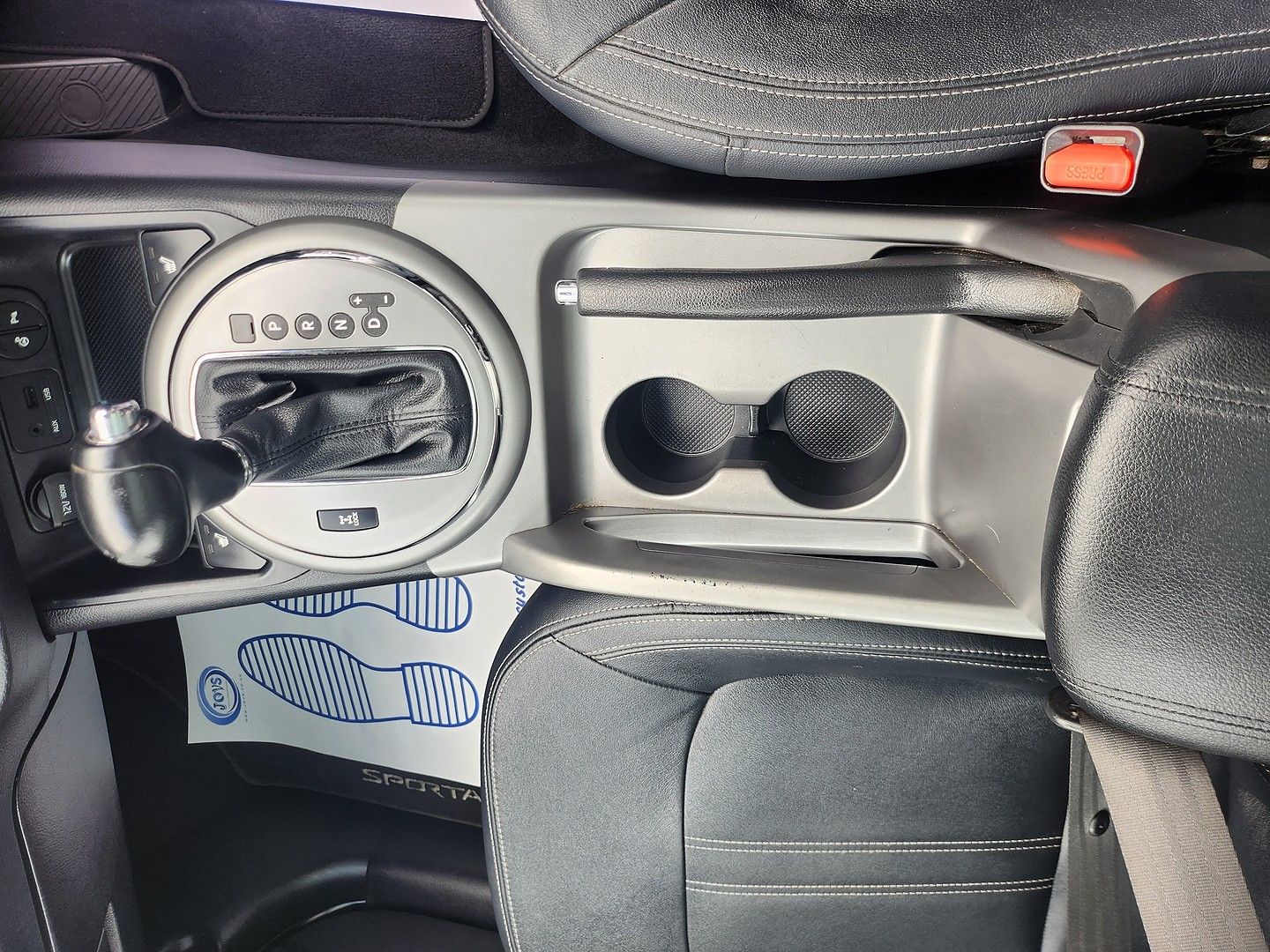

Cup holders
Cup holders for front seats and rear seats
Display screen
Single 7.0 inch touch sensitive multi-function display screen(s)
Doors
Front hinged drivers door, rear door on drivers side, front passenger door and rear door on passenger side
Dynamic steering
Dynamic steering

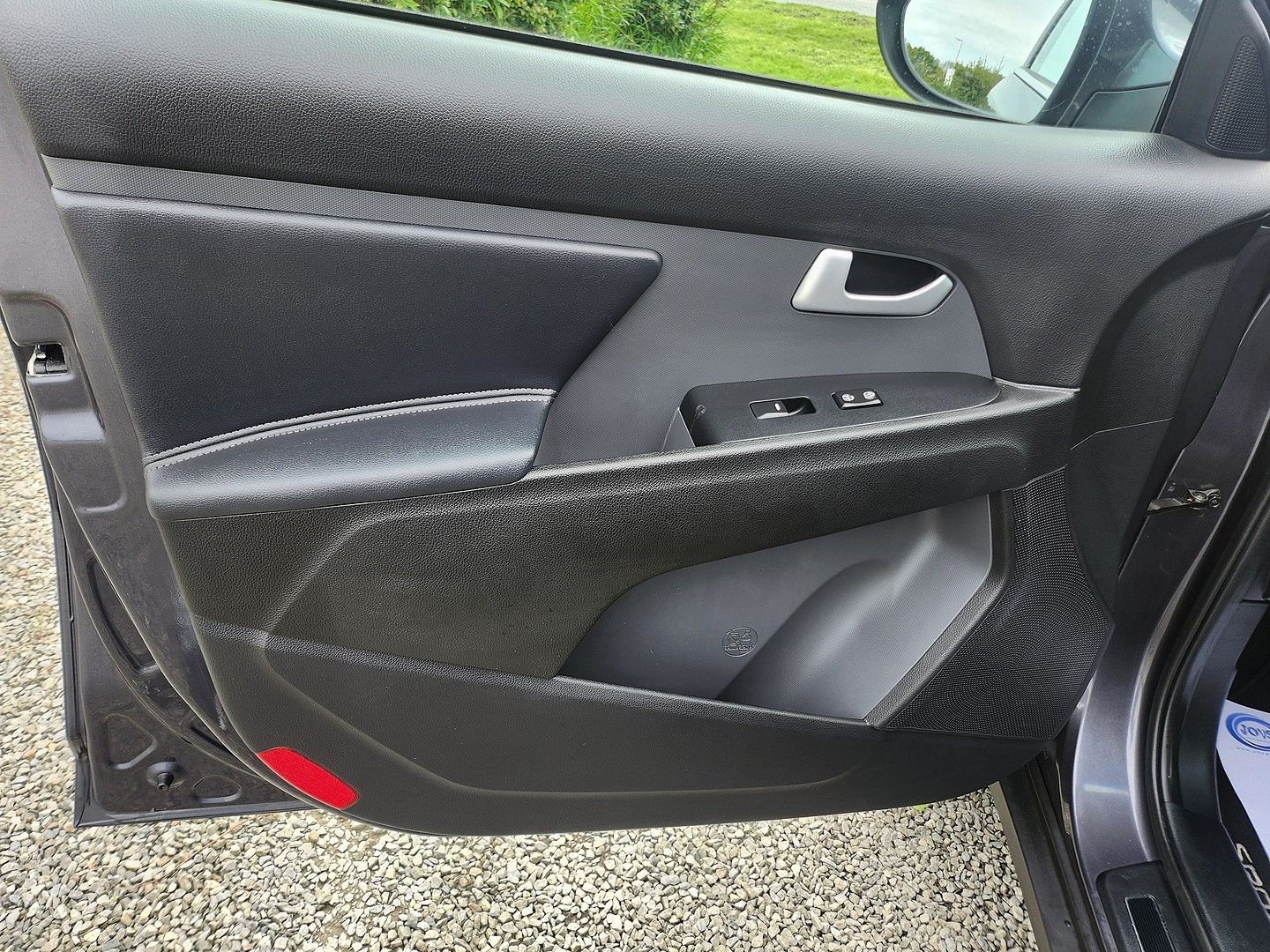

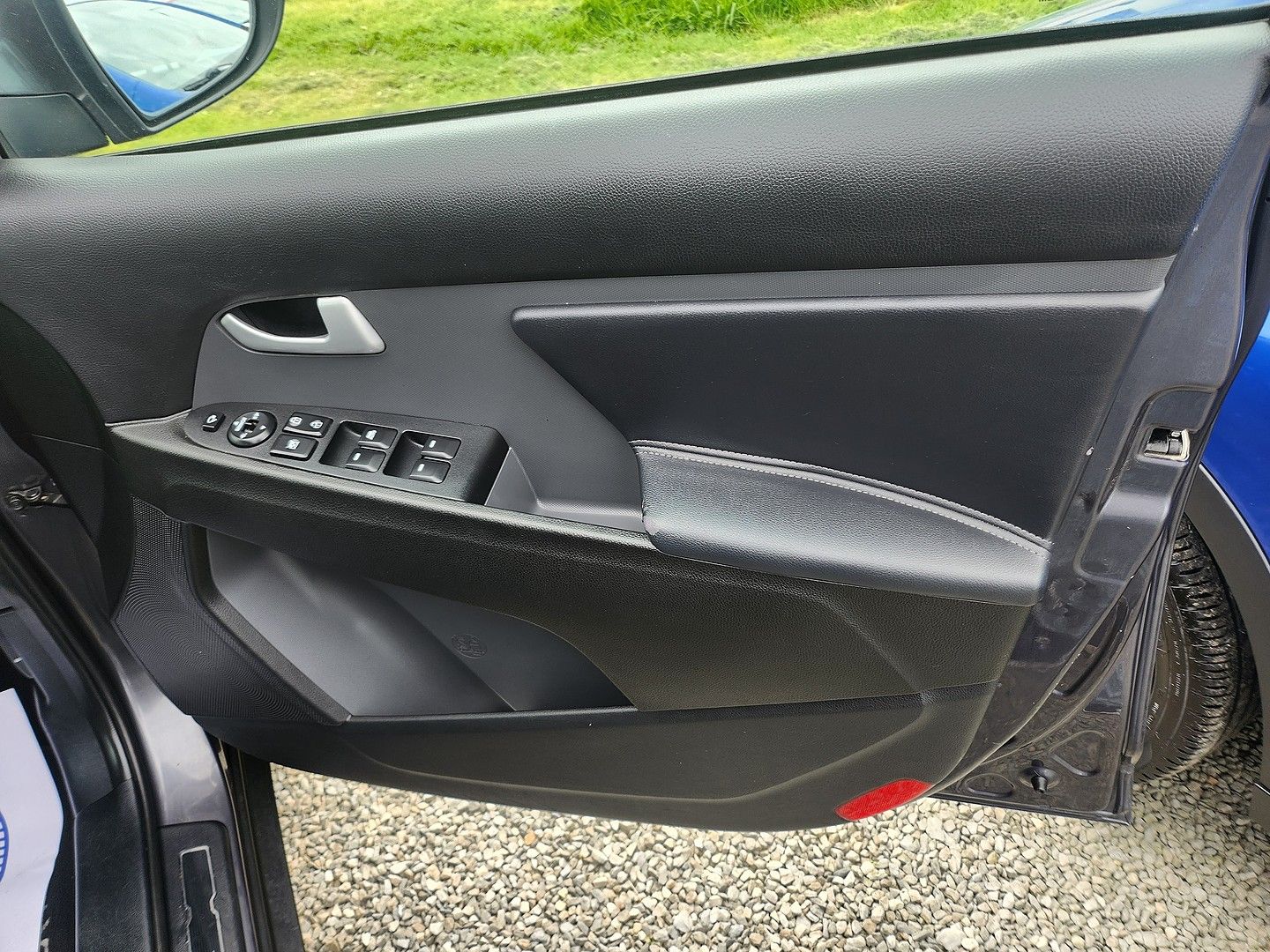

Electric windows

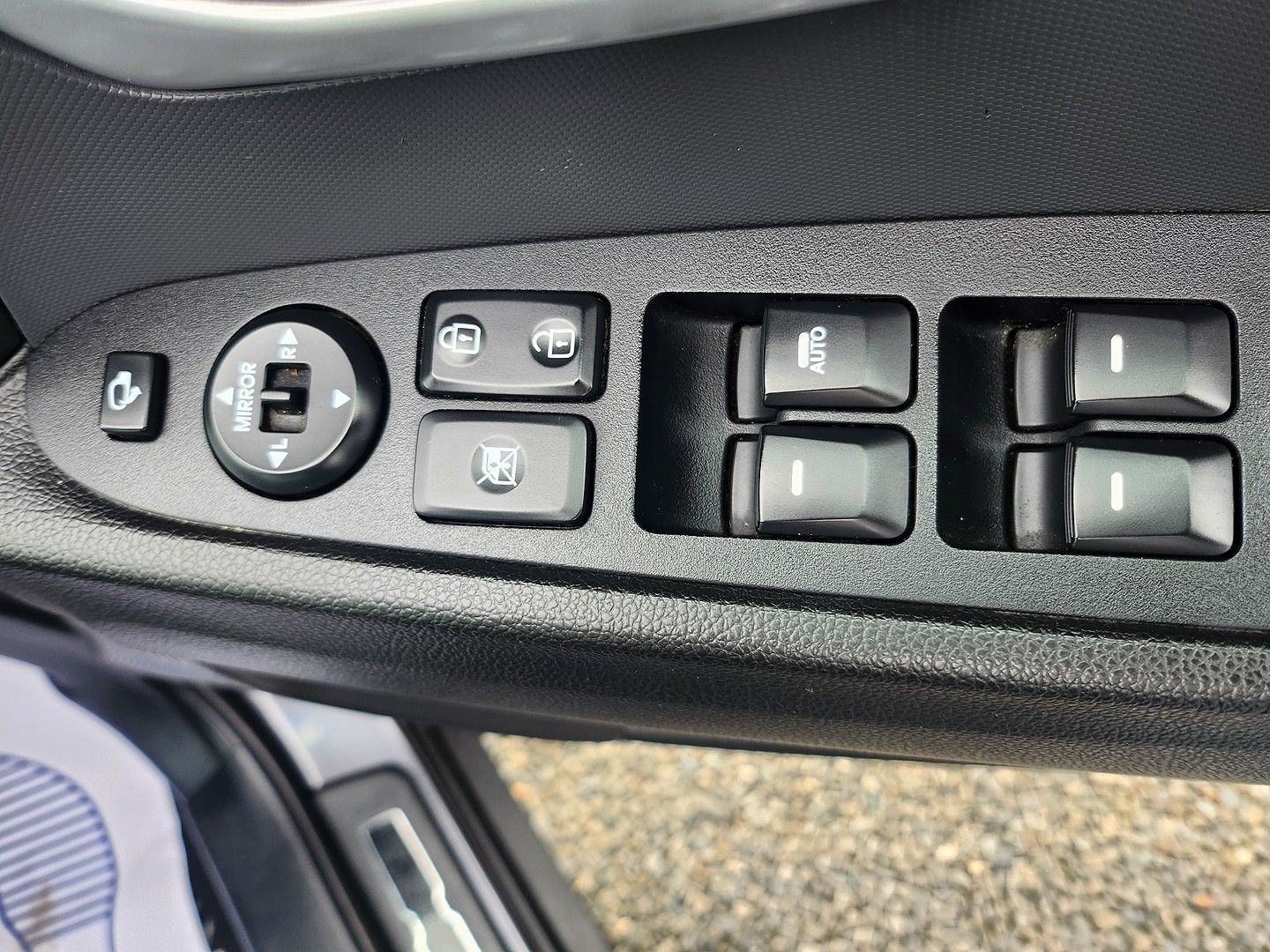

Front and rear electric windows with one-touch on two windows
External temperature
External temperature

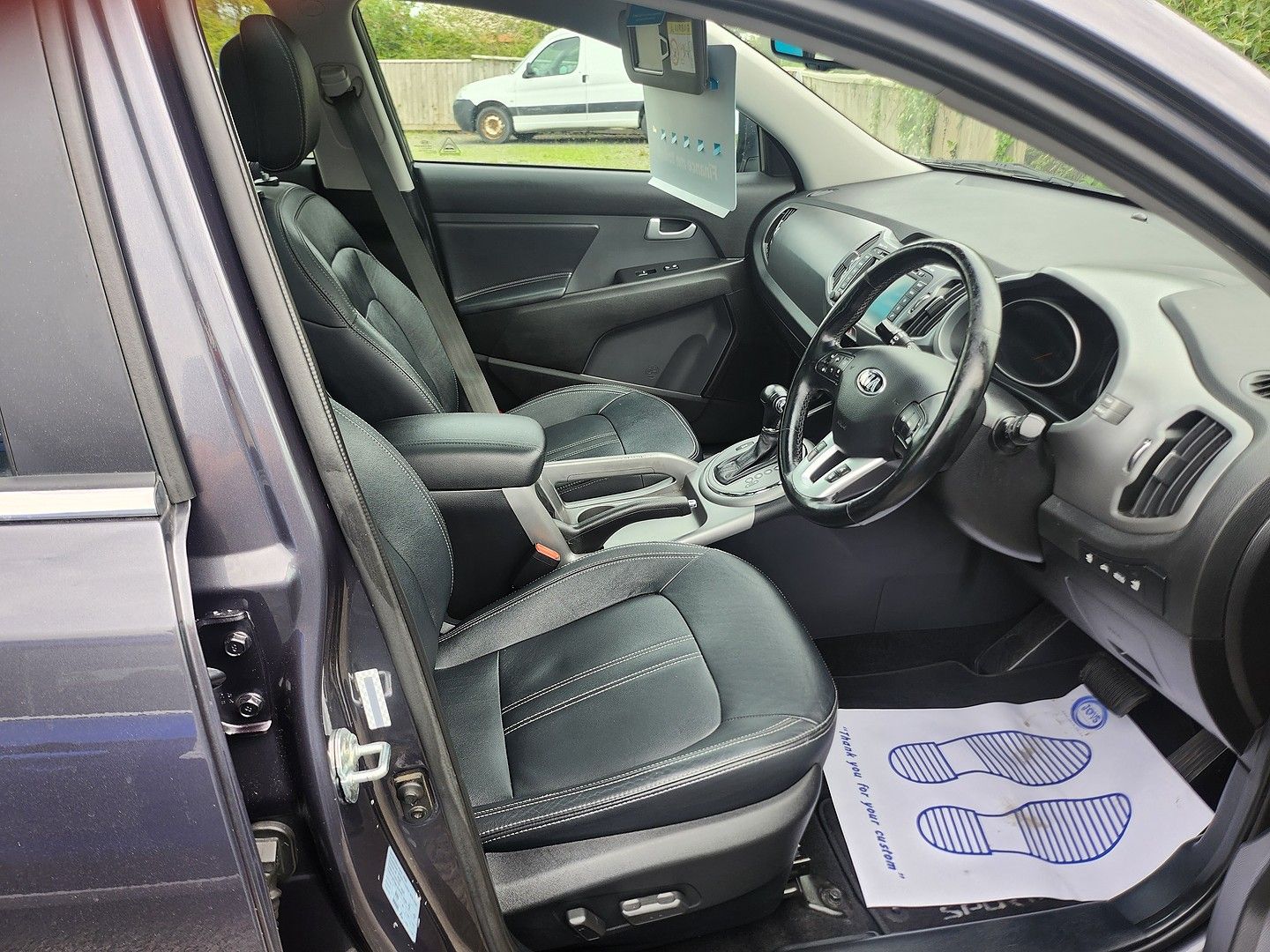

Front seat
Driver seat: individual type, heated, electrically adjustable, three electrical adjustments, passenger seat: individual type, heated
Front seat centre armrest
Centre armrest between front seats
Instrument cluster

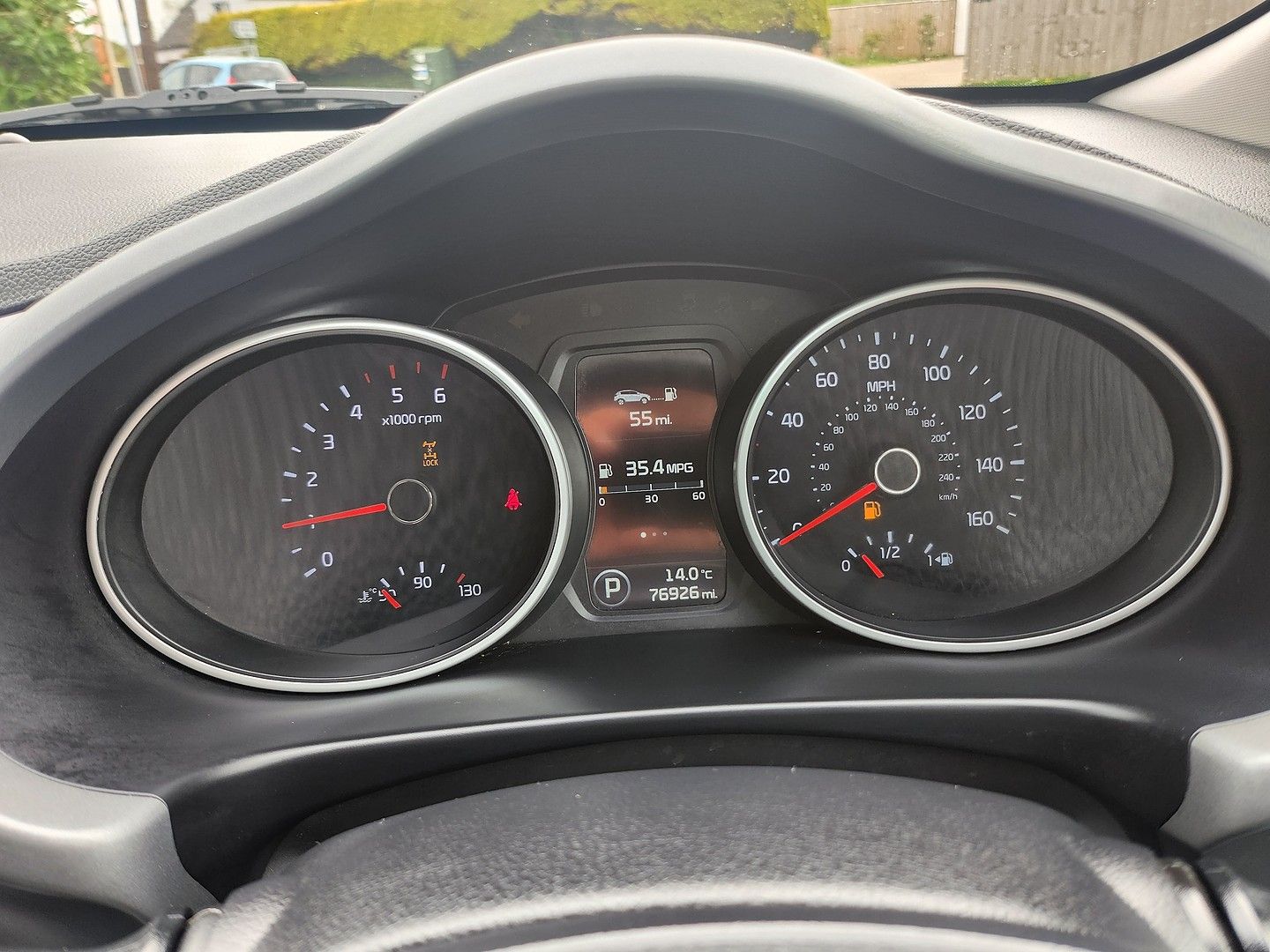

Analogue & TFT dashboard
Instrument panel
Analogue & TFT dashboard
Load area light
Load area light
Load restraint
Load restraint
Luxury trim
Alloy look trim on dashboard, alloy look trim on doors and leather gearknob
Mobile phone preparation
Cellular phone preparation
Multi-function display screen
Single 7.0 inch touch sensitive multi-function display screen(s)
Navigational systems

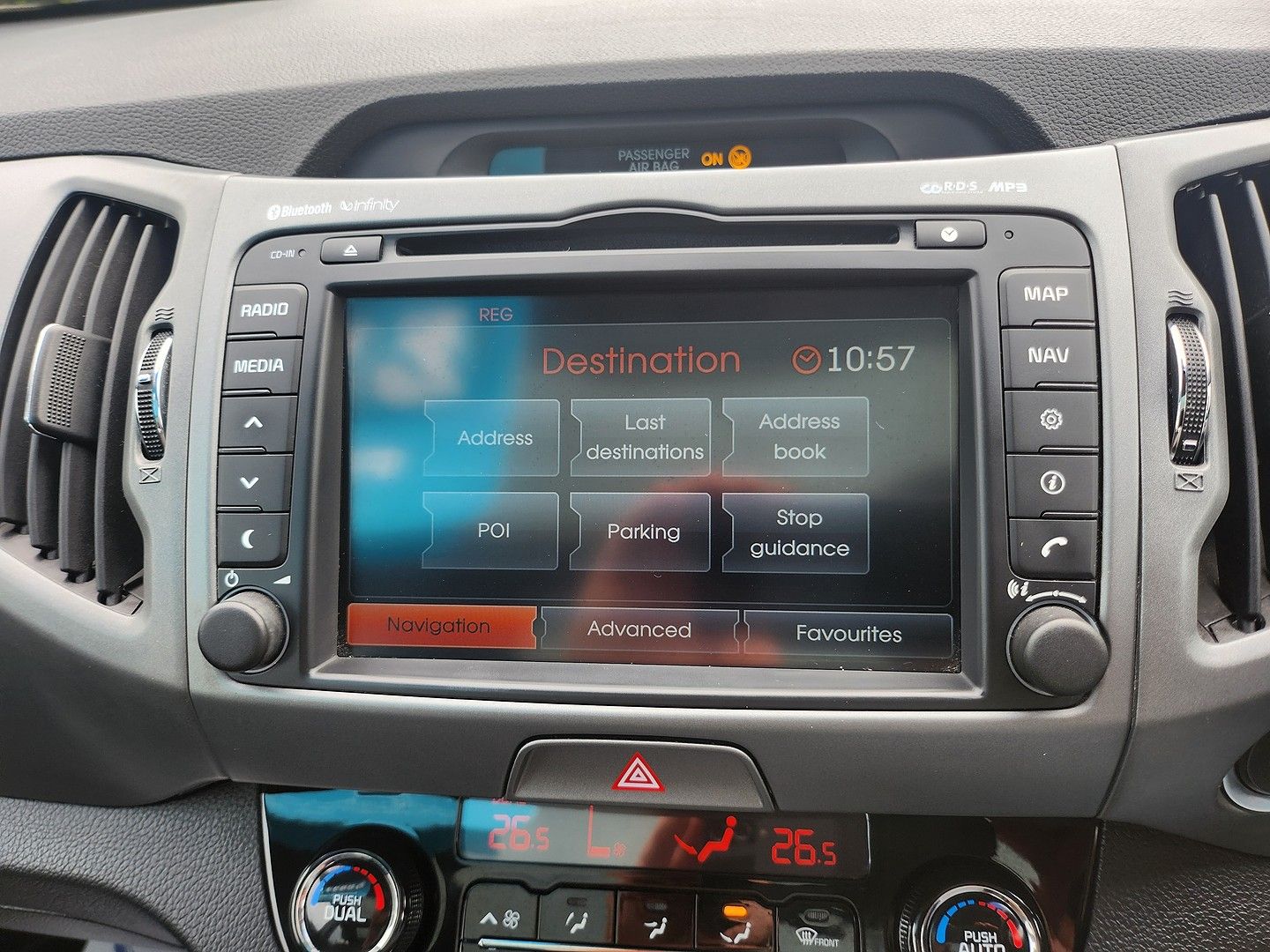

Satellite navigation system with colour, 7.0 inch display, touch screen and 3D and voice
Parking assistance
Rear/reverse automatic parking
Parking space information
Parking space information
Privacy glass
Privacy glass on the rear window and on the rear side windows
Reading lights
Front reading lights
Rear door
Lifting gate rear door
Rear seat centre armrest
Centre armrest between rear seats

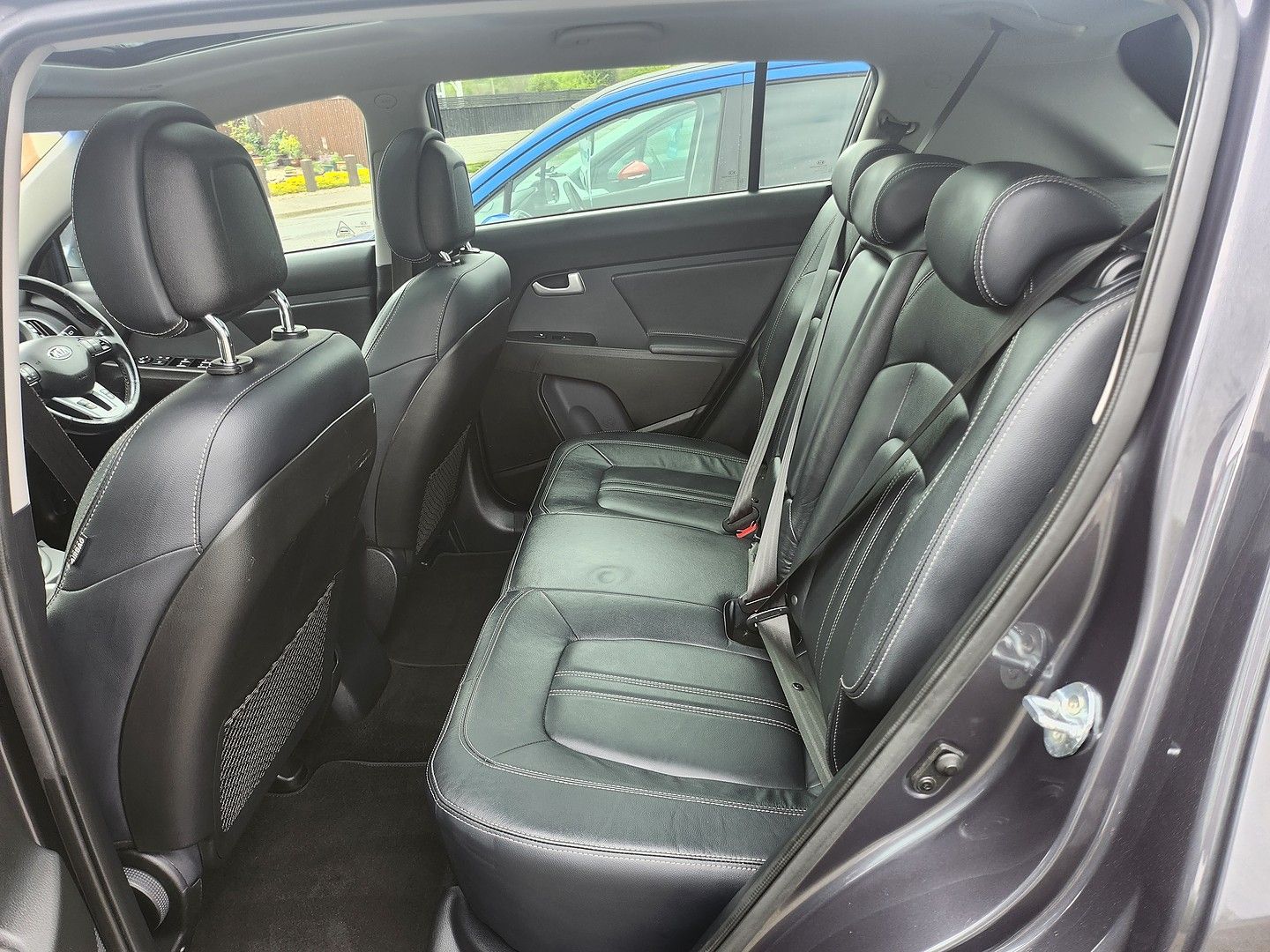

Rear seats
Asymmetrically folding rear seats: bench type with space for three people; heated with zero electric adjustments
Rear view mirror
Light sensitive rear view mirror
Rear view mirror/camera
Light sensitive rear view mirror
Refrigerated storage compartment
Refrigerated storage compartment in glove compartment
Remote audio controls
Steering wheel mounted remote audio controls
Seat upholstery

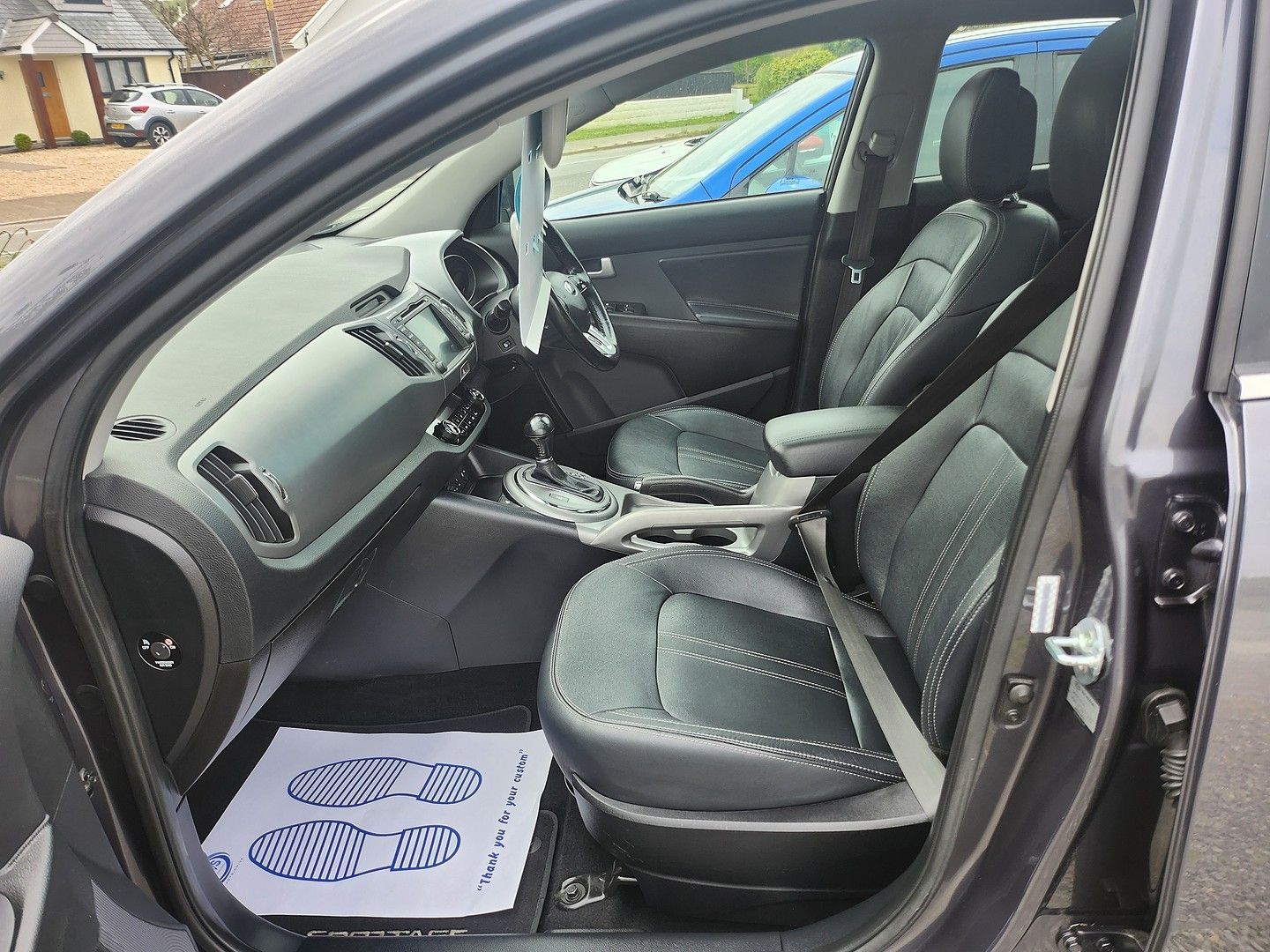

Seat upholstery: leather and leather
Seating
Five seats configured 2+3
Secondary ventilation controls
Secondary ventilation controls with digital display for front passenger
Smart card / smart key
Automatic smart card/key includes keyless entry and keyless start
Speakers
Seven Infinity speakers including subwoofer

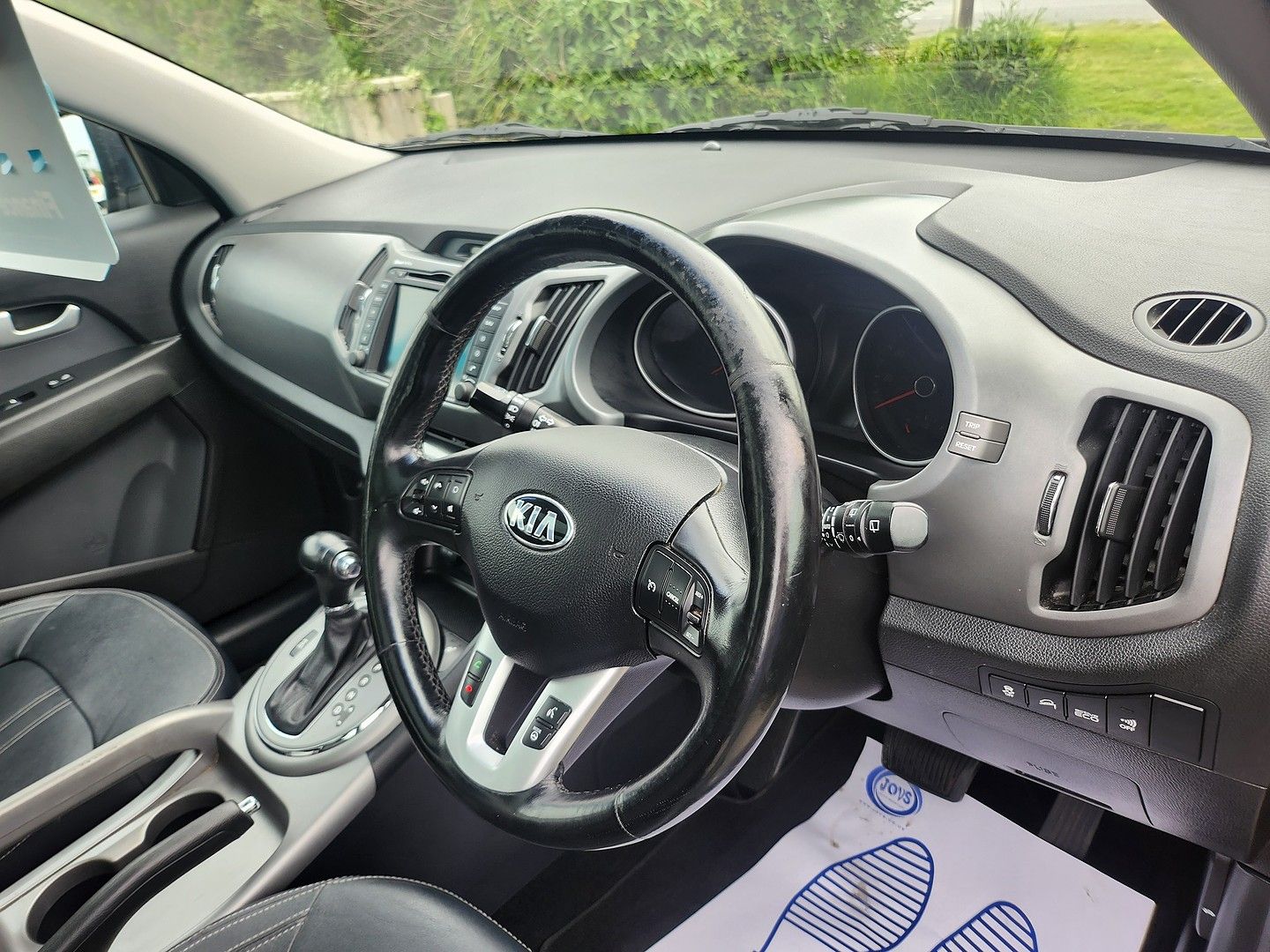

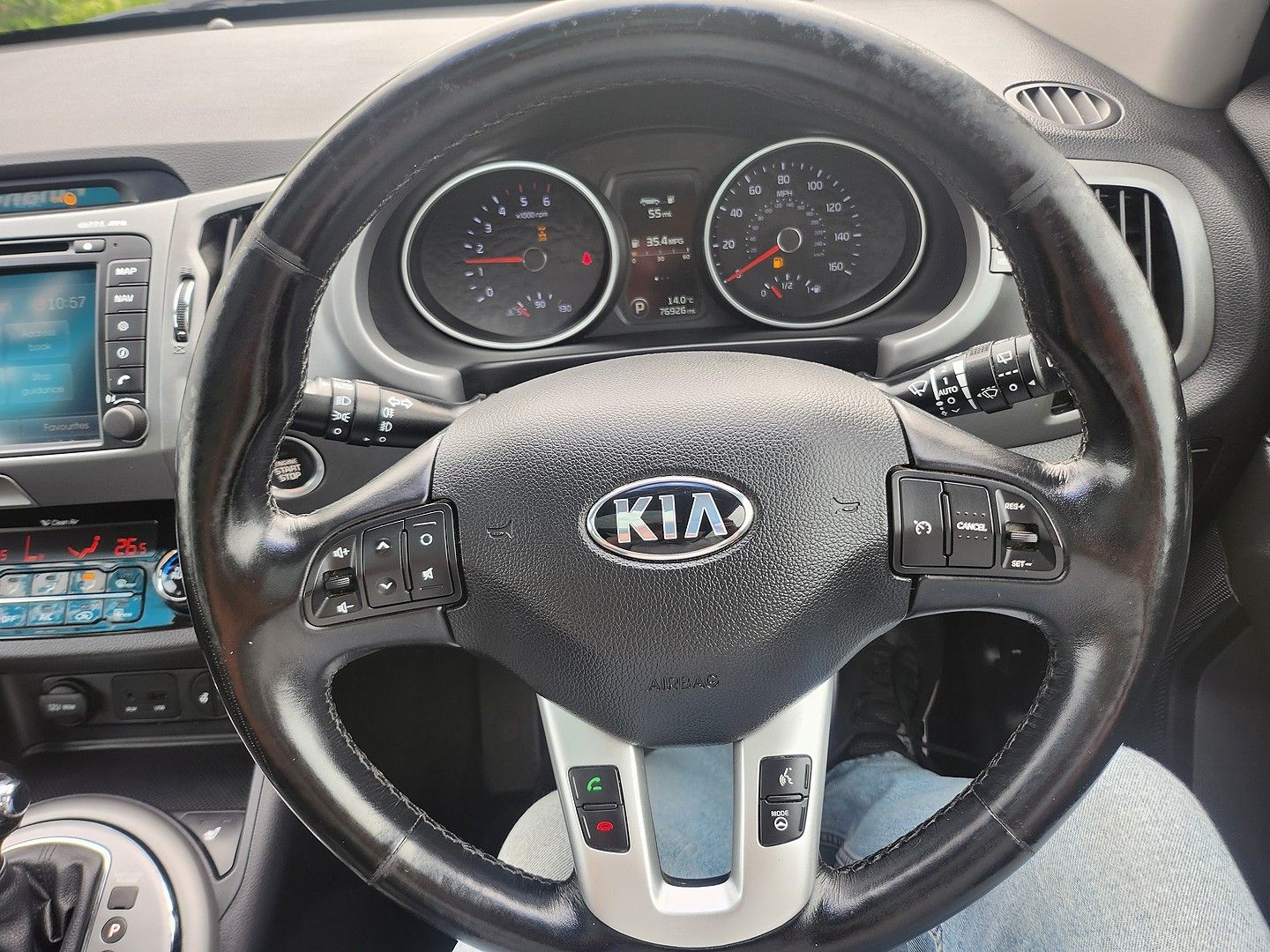

Steering wheel
Heated leather covered multi-function steering wheel with tilt adjustment and telescopic adjustment

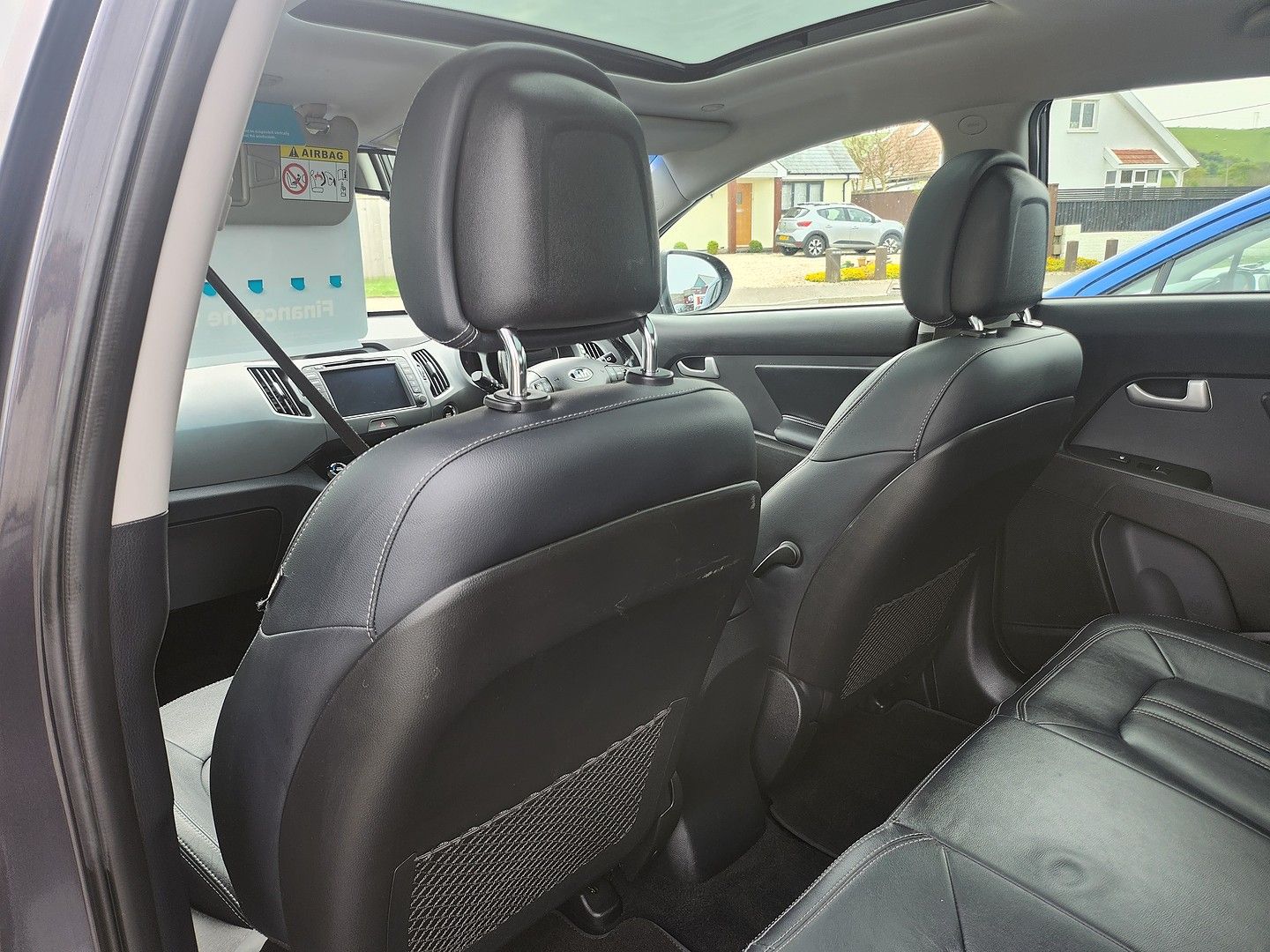

Sunroof
Tilting sliding glass electric front sunroof
Tachometer
Tachometer
Vanity mirror
Illuminated driver and passenger vanity mirror
Vehicle start button
Vehicle start button
Ventilation system
Ventilation system with digital display and air filter
Voice activating system
Voice activating system includes phone

Others

Airbags
Six airbags
Body style

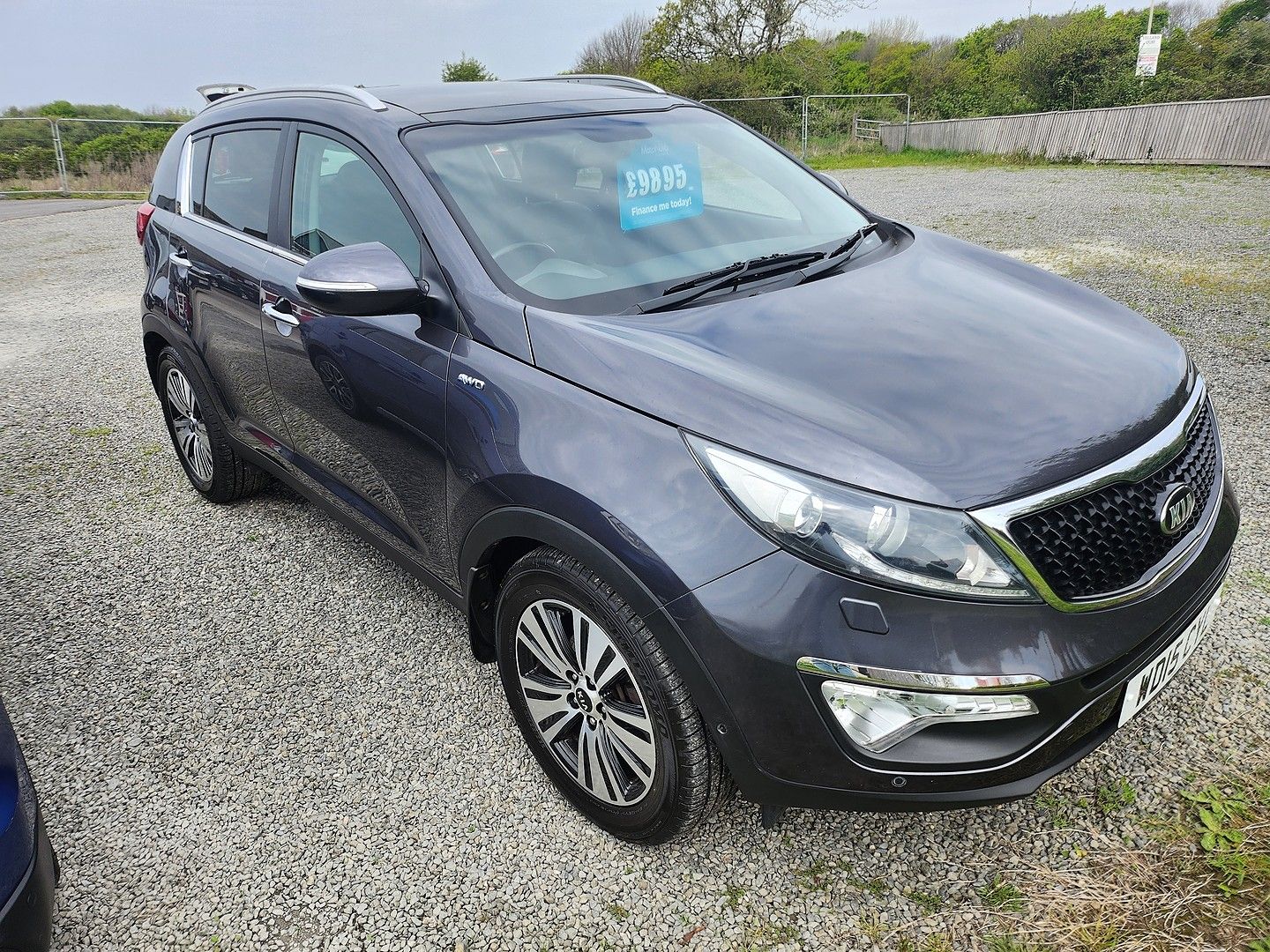

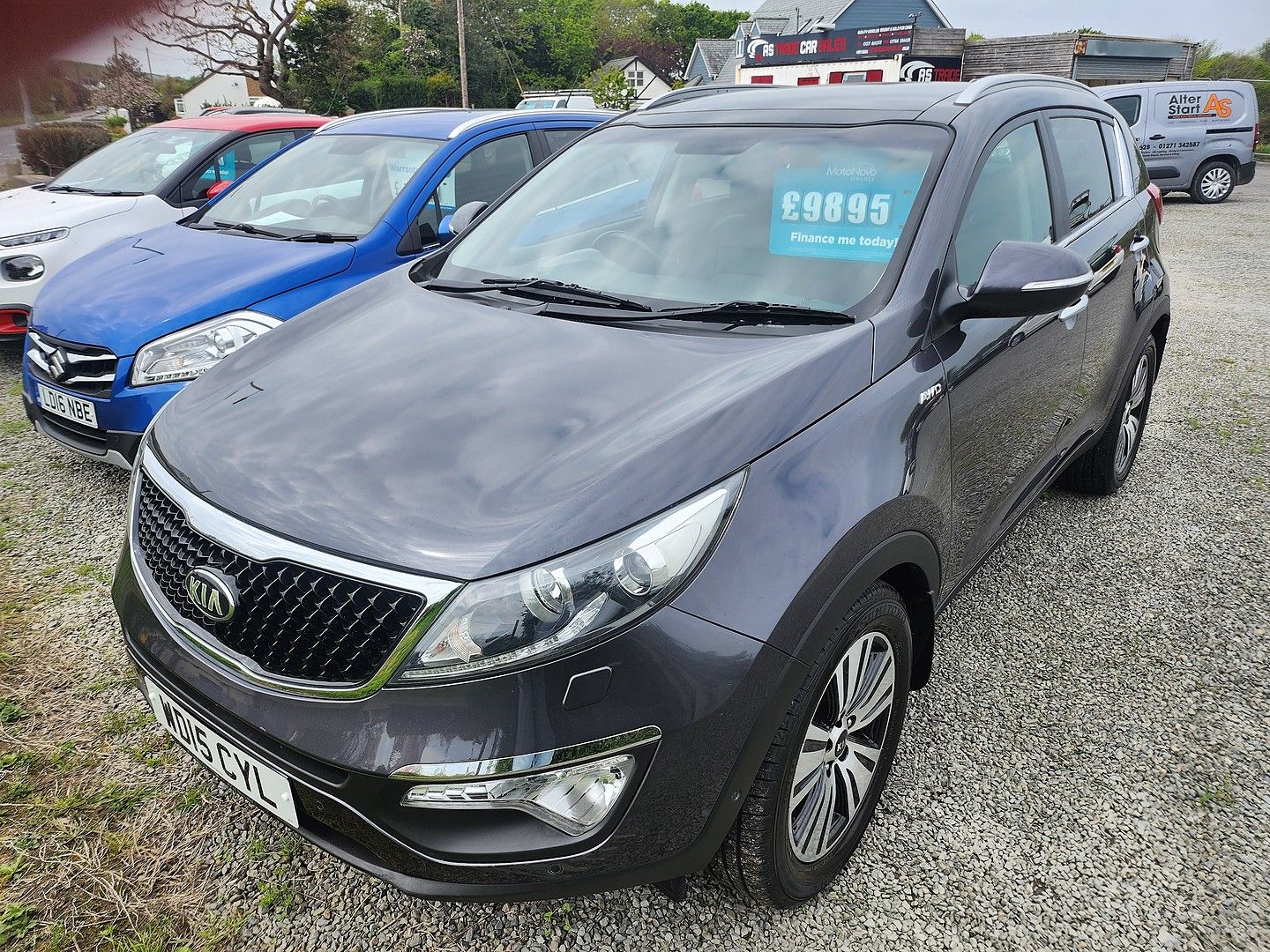

Five door sports utility vehicle ; Platform code: HYUNDAI XD, Right hand drive

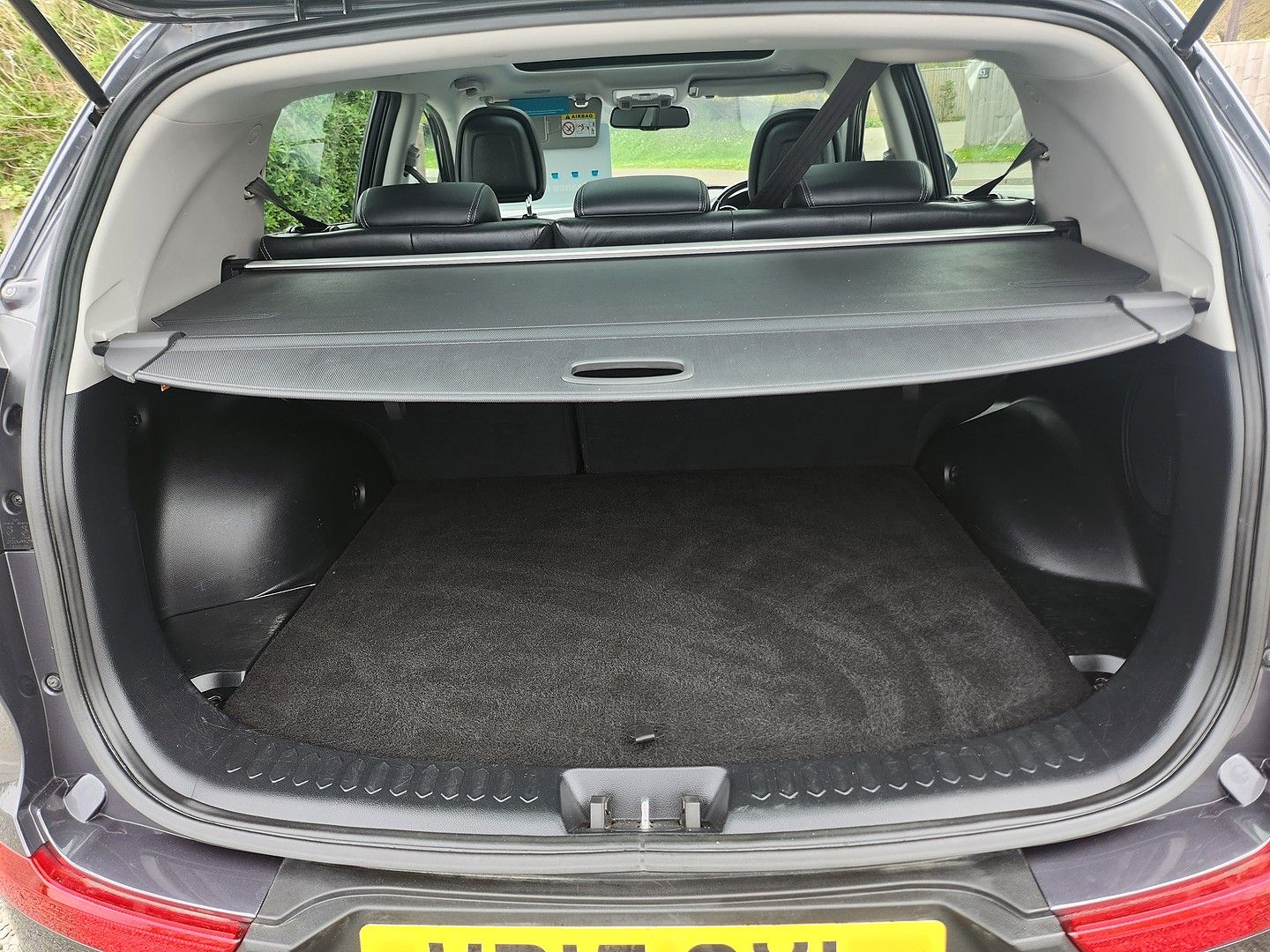

Cargo area cover/rear parcel shelf
Flexible cargo area cover/rear parcel shelf
Charges
Charges: VAT [20%] = 4,728.33, VED (Band J) = 265.00, FRF = 55.00, Showroom Tax = 490.00, Additional Charges (GB) = 0.00
Data completeness
Data completeness: up to date pricing data, up to date data for key leasing items, specifications data from official price list, missing colour & trim data, up to date option pricing data and up to date option content data
Date introduced
Date introduced: Model introduced 01 Sep 2010 and Version introduced 02 Jul 2012
Delivery charges
Fixed delivery charges: 595.00, 495.83 (excluding VAT) fuel included 0 litres includes number plates
Global segment
Global segment
Insurance
Insurance: 19
Regional segment
Regional segment
Trim
KX-4 trim level - JATO classification: L1
Warranty anti-corrosion
Anticorrosion warranty: 120 months, 100,000 miles, 160,934 km
Warranty paint
Paint warranty: 60 months, 100,000 miles, 160,934 km
Warranty powertrain - Total
Powertrain warranty: 84 months, 100,000 miles, 160,934 km
Warranty roadside assistance
Road-side assistance warranty: 12 months, Unlimited miles, Unlimited km
Warranty whole vehicle - Total
Vehicle warranty: 84 months, 100,000 miles, 160,934 km
Windscreen wiper de-icer
Windscreen wiper de-icer

Safety

ABS
ABS
Automatic hazard lights
Automatic hazard lights
Brake assist system
Brake assist system
Cornering brake control
Cornering brake control
Crash test results
Euro NCAP crash test results: Overall: 5.00, Adult occupant: 93.00, Child occupant: 86.00, Pedestrian: 49.00, Safety assist: 86.00, Version tested: Kia Sportage 2.0 diesel EX 5dr OD, Date tested: 24 Nov 2010
Disc brakes
Four disc brakes including two ventilated discs
Electronic brake distribution
Electronic brake distribution
Electronic traction control
Electronic traction control
Front airbag
Intelligent drivers airbag, intelligent passengers airbag with de-activation switch
Front seat belts
Height adjustable seat belt with pre-tensioners on drivers seat and front passenger seat
Head restraints
Two active head restraints on front seats with height adjustment, three head restraints on rear seats with height adjustment
Headlight control
Headlight controlsystems: dusk sensor and automatic height adjustment
Headlights
Xenon low beam Xenon high beam headlights with ellipsoidal lenses
Isofix preparation
Isofix preparation
Low tyre pressure indicator
Low tyre pressure indicator with rim mounted sensor
Parking distance sensors

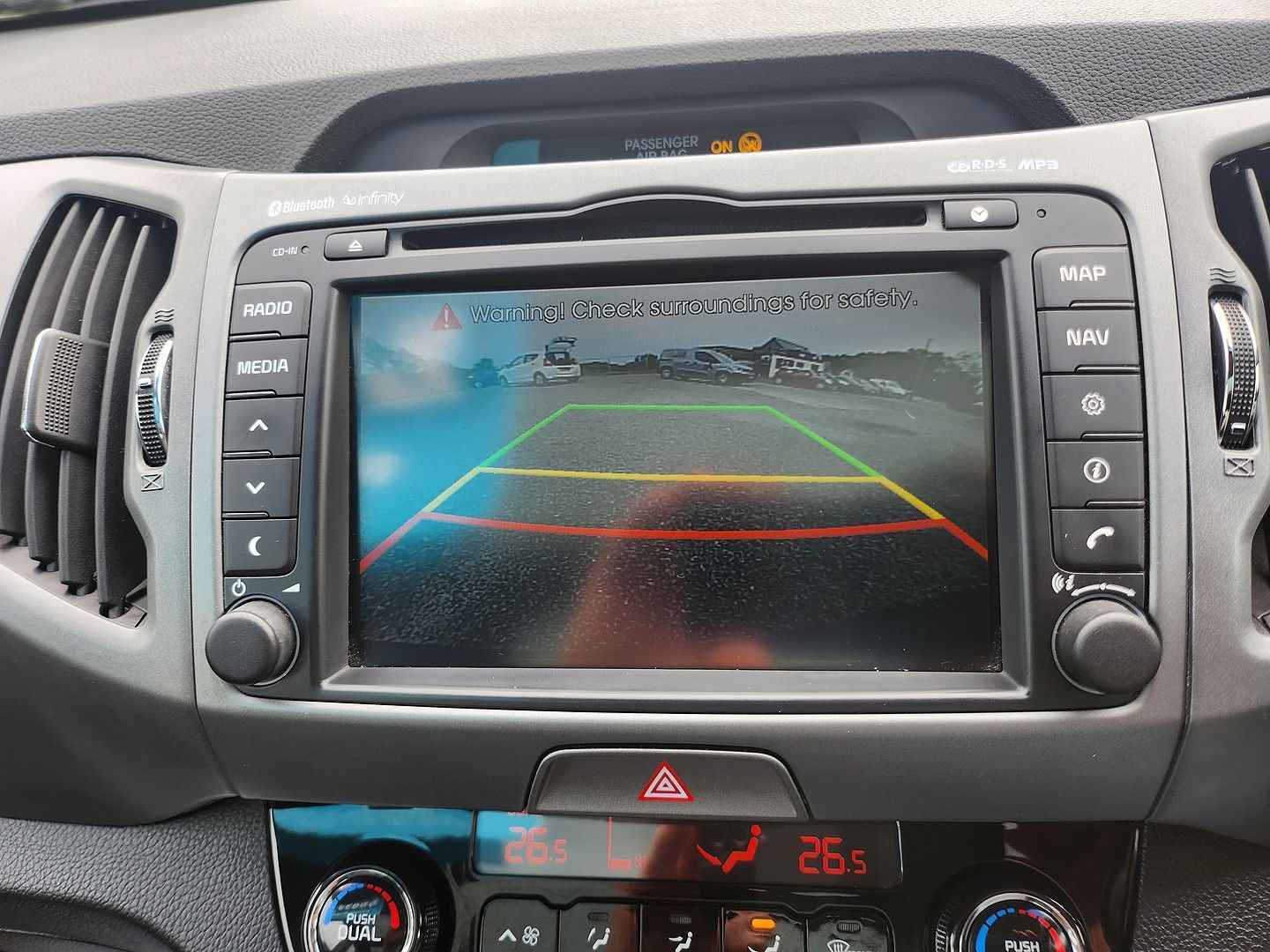

Front radar-type parking distance sensors, rear radar & camera-type parking distance sensors
Parking distance system
Front radar-type parking distance sensors, rear radar & camera-type parking distance sensors
Rear seat belts
Seat belt on driver side rear seat, seat belt on passenger side rear seat, 3-point seat belt on central rear seat
Side airbag
Front side airbag
Side curtain airbag
Front and rear side curtain airbags
Stability control
Stability controlsystem
Trailer stability program
Trailer stability program

Security

Anti-theft protection
Anti-theft protection with interior monitoring

Technical

Compressor
Turbo-charger
Cruise control
Cruise control
Differential lock
Centre differential lock
Drive
Manual & automatic full and part-time four wheel drive with descent control
Emission control level
Emissions: EU5 compliant and 189 g/km CO2 (max)
Engine

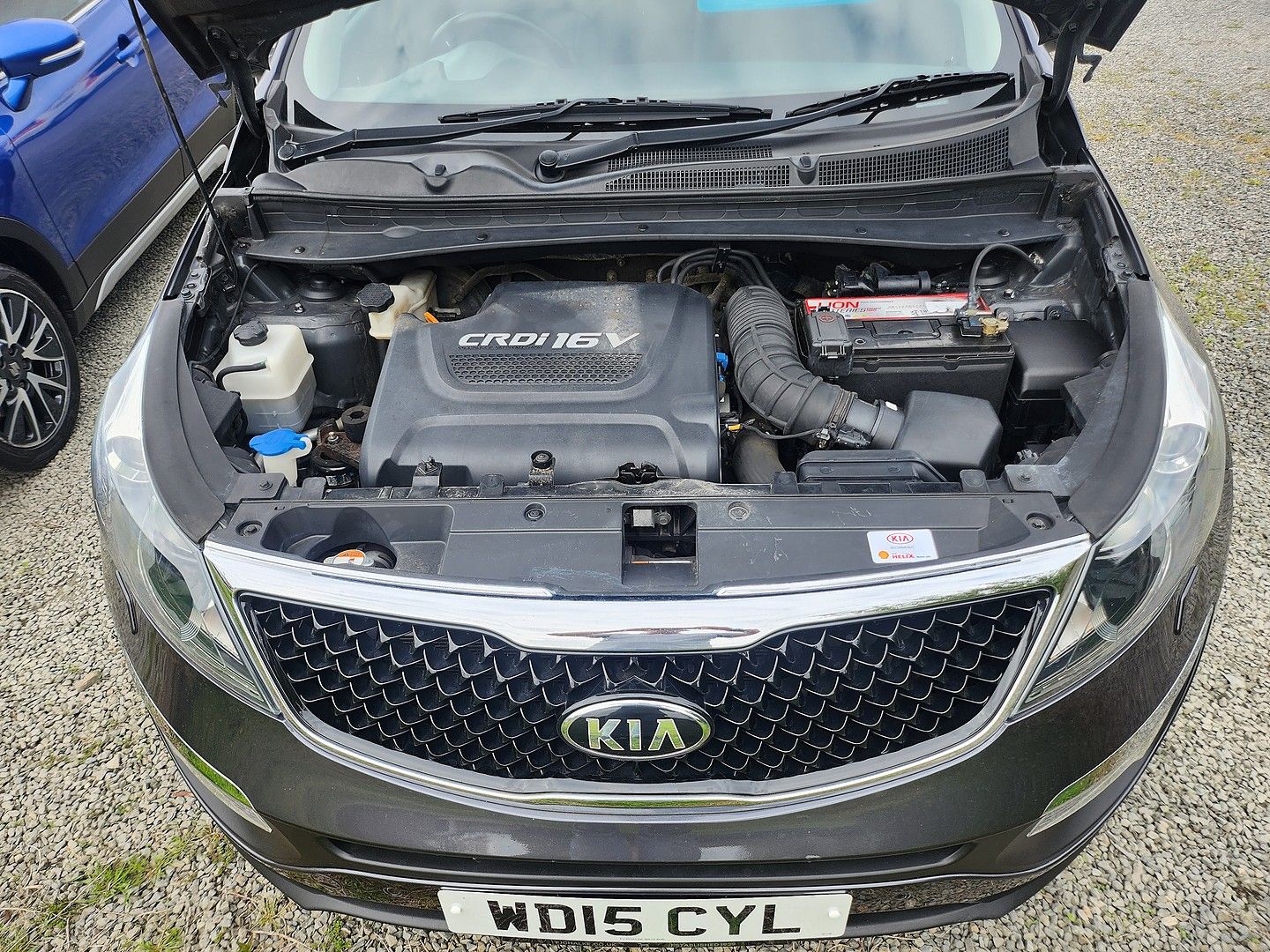

1,995 cc 2.0 litres in-line 4 engine with 84.0 mm bore, 90.0 mm stroke, 16.0 compression ratio, double overhead cam and four valves per cylinder Engine code: D4HA
Fuel
Primary fuel type: diesel
Fuel consumption
Fuel consumption: 9.1 l/100km (urban), 6.1 l/100km (country/highway), 7.2 l/100km (combined), 26 mpg (urban US), 39 mpg (country/highway US), 33 mpg (combined US), 11.0 km/l (urban), 16.4 km/l (country/highway), 13.9 km/l (combined), 31 mpg (urban UK), 46
Fuel system
Fuel system: common rail diesel
Hill holder
Hill holder
Main service
Main service required after 32,187 km, 20,000 miles, 12 months
Particle filter system
Particle filter system
Performance
Performance: maximum speed 121 mph, 195 km/h acceleration 9.8 seconds (0-100 km/h)
Power
Power: (from primary fuel) 135 kW , 181 HP EEC @ 4,000 rpm; , 392 Nm @ 1,800 rpm
Power steering
Power steering: type speed proportional
Powertrain
Powertrain: internal combustion engine
Powertrain type
Powertrain: internal combustion engine
Suspension
Independent strut front suspension with anti-roll bar and coil springs, independent multi-link rear suspension with anti-roll bar and coil springs
Traffic light coding
Traffic light coding: efficiency label J

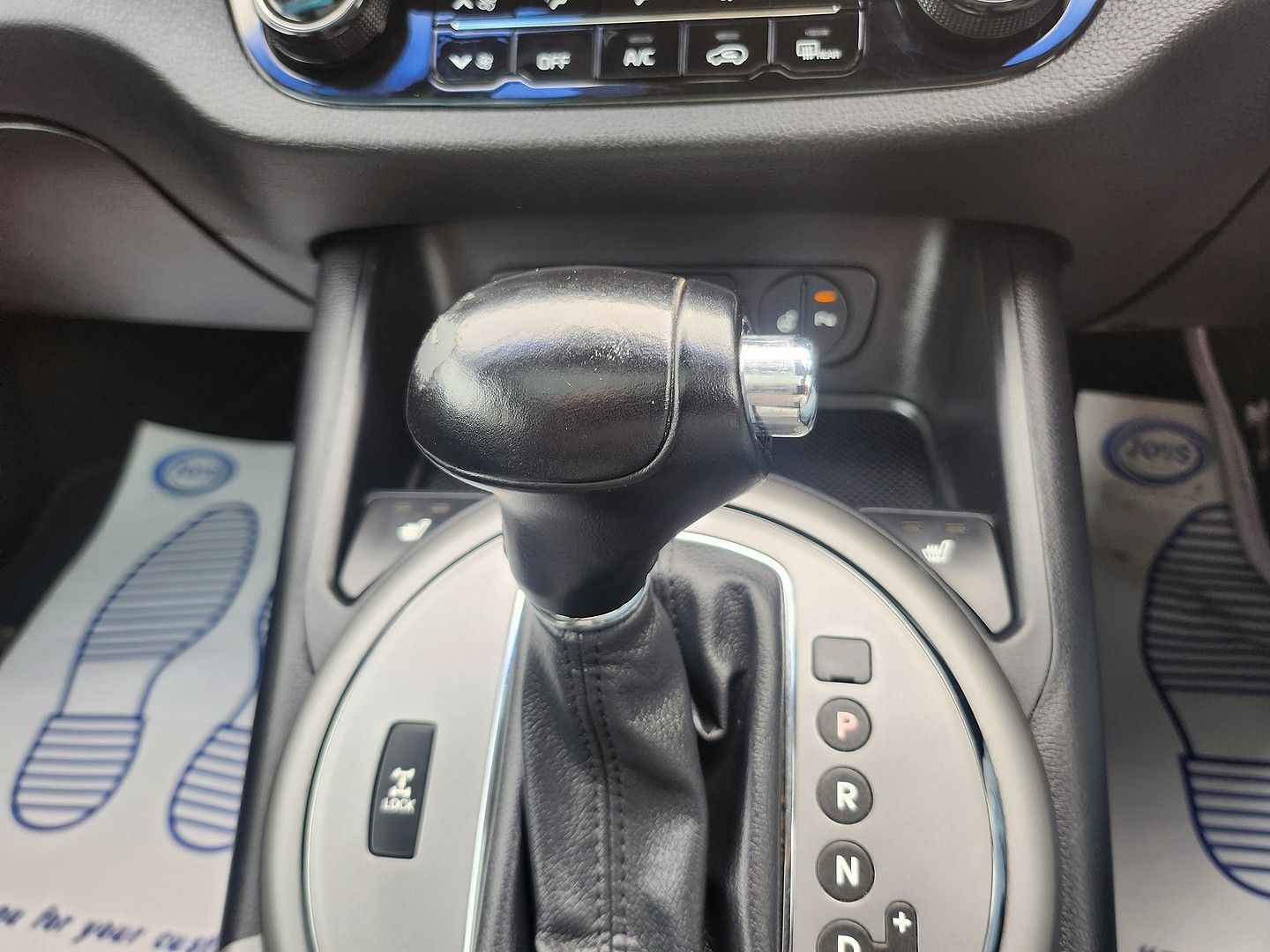

Transmission
Transmission: 6-speed automatic with manual mode featuring gear lever mounted on the floor
