Dimensions

Bulkhead

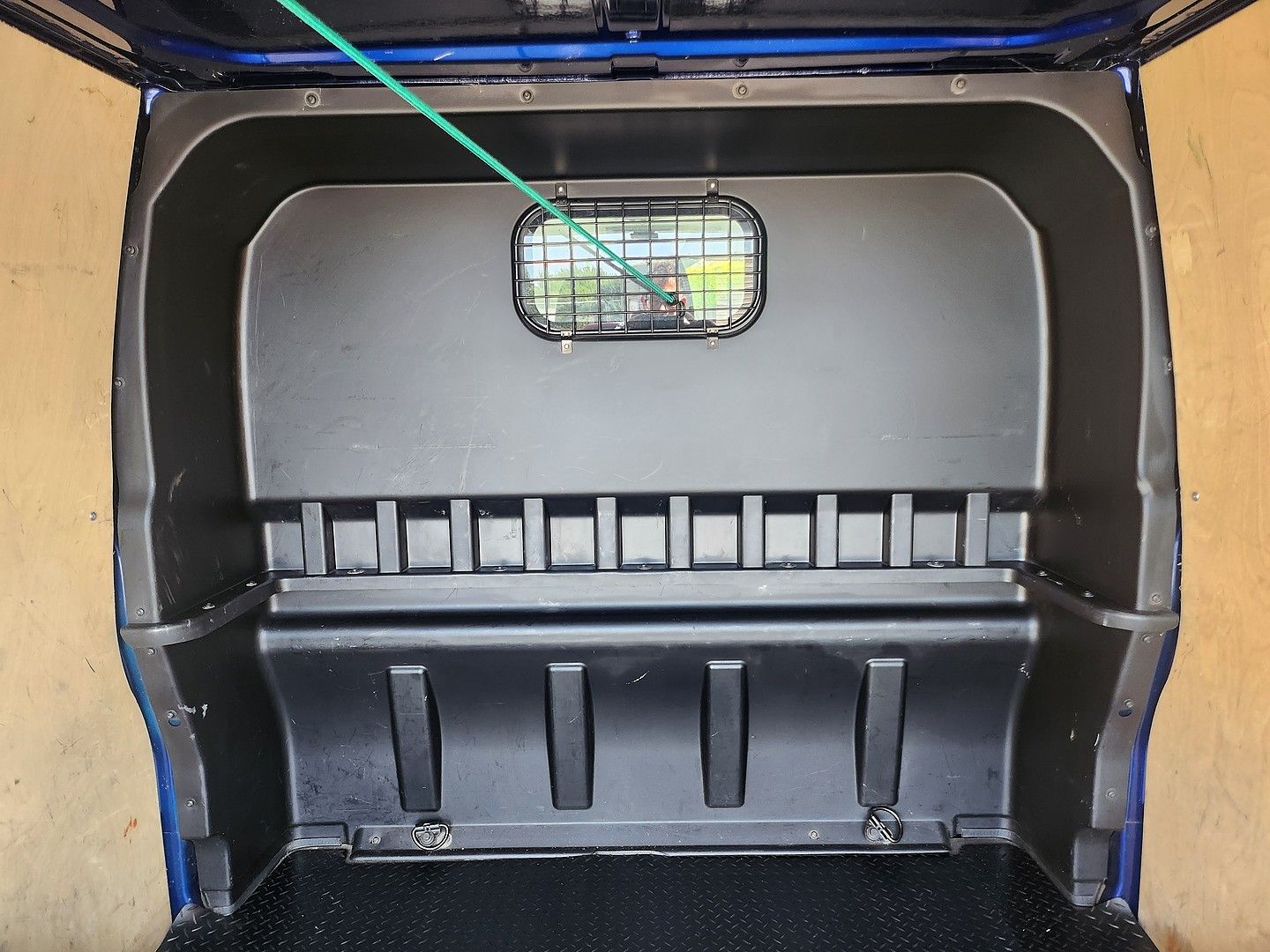

Solid bulkhead ; full height and full width

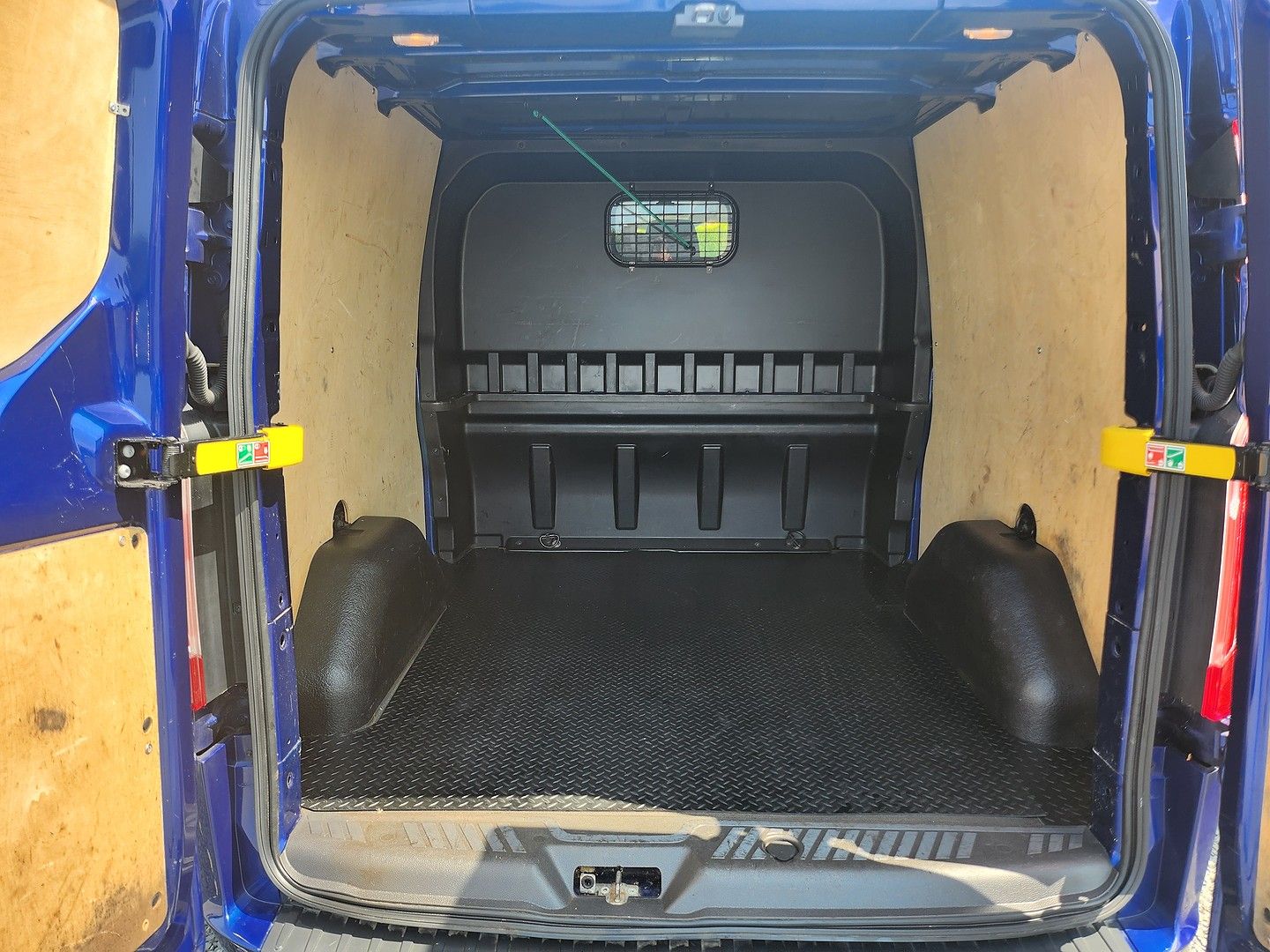

Cargo area dimensions
Cargo area dimensions: 6,830 litres, 2,922mm long, 1,406mm high, 1,775mm wide, 1,390mm between wheel arches, 589mm high floor, 241.2 cu ft, 115.0 inches long, 55.4 inches high, 69.9 inches wide, 54.7 inches between wheel arches, 23.2 inch high floor and m

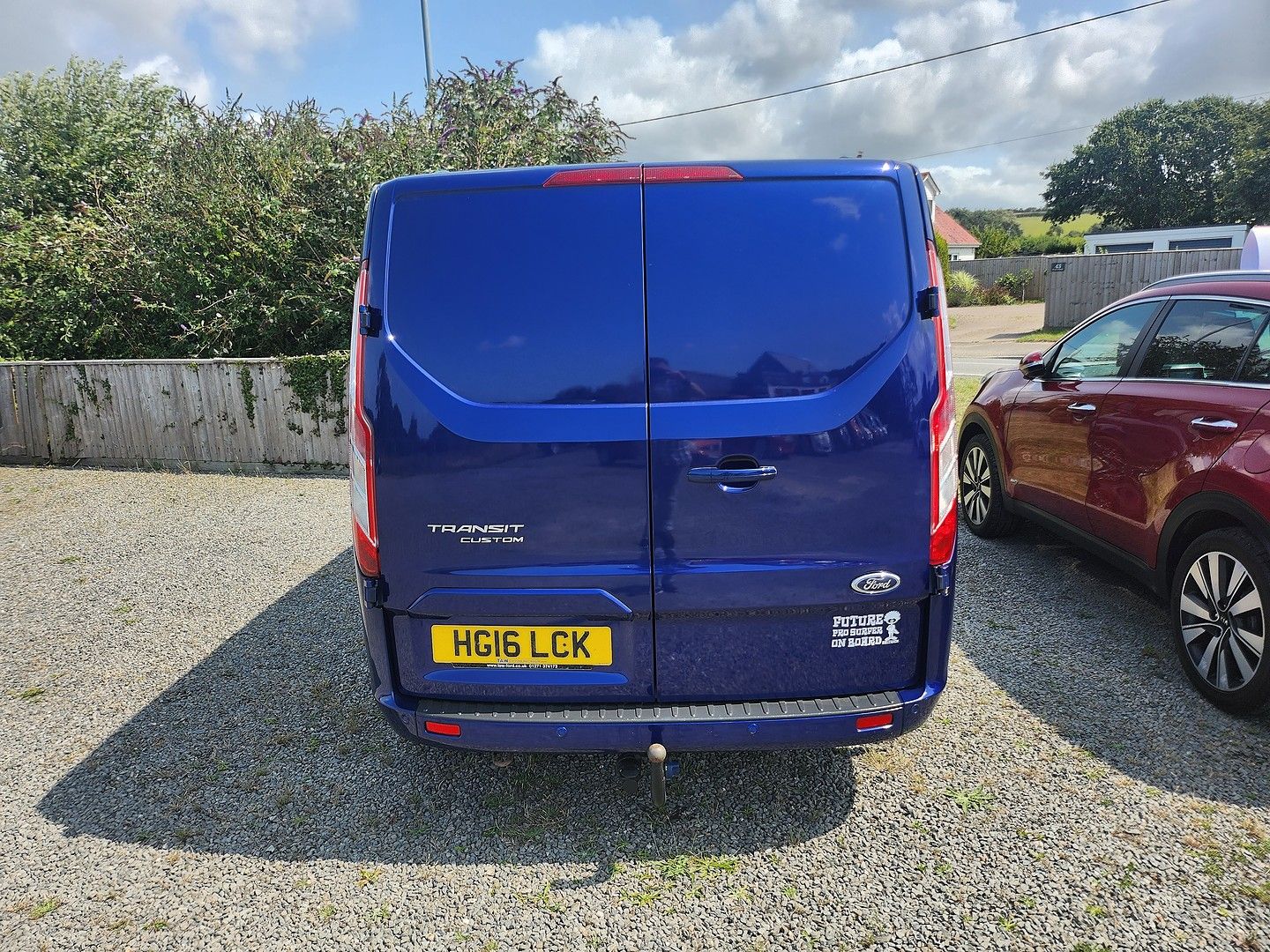

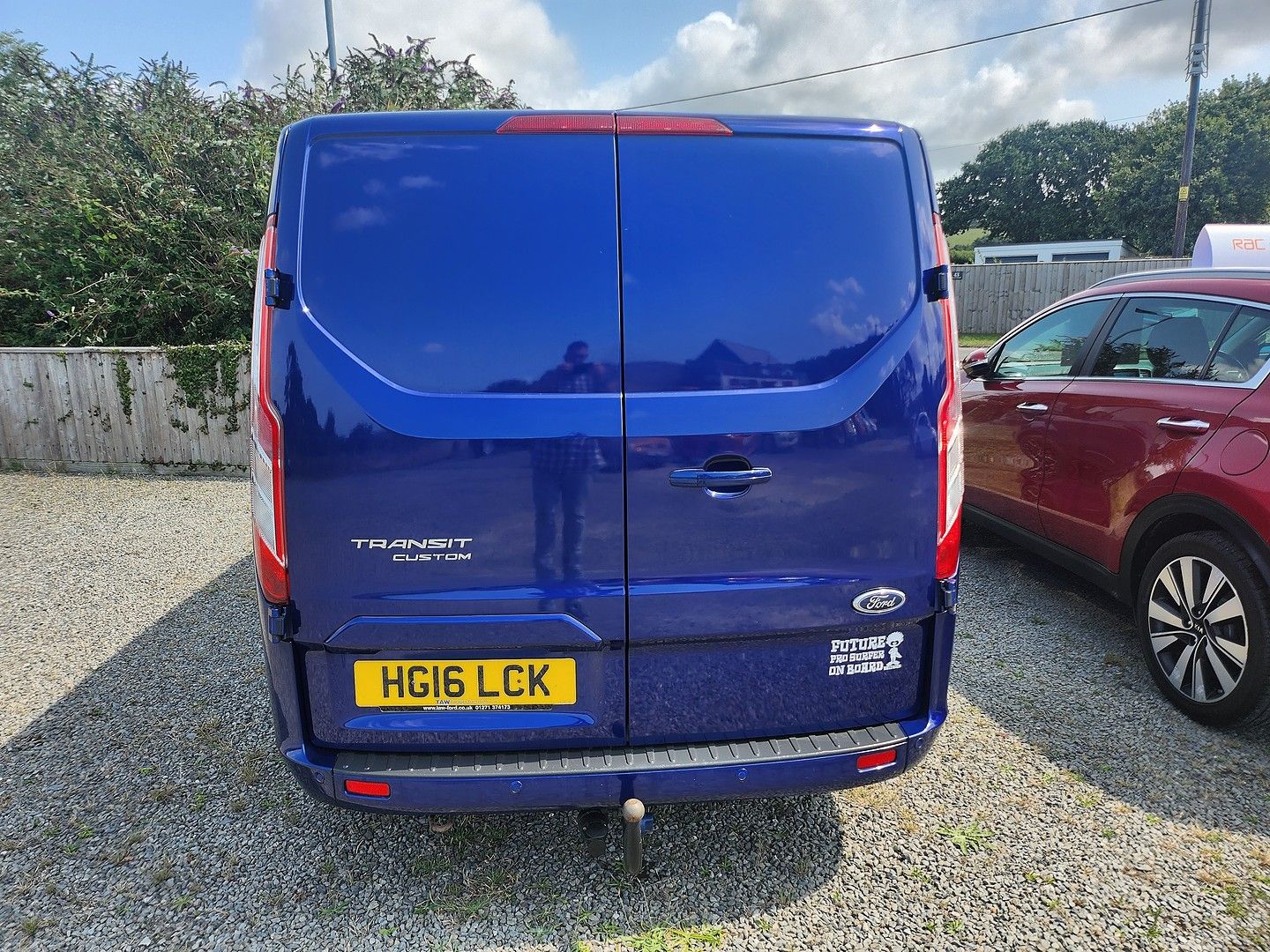

Cargo doors

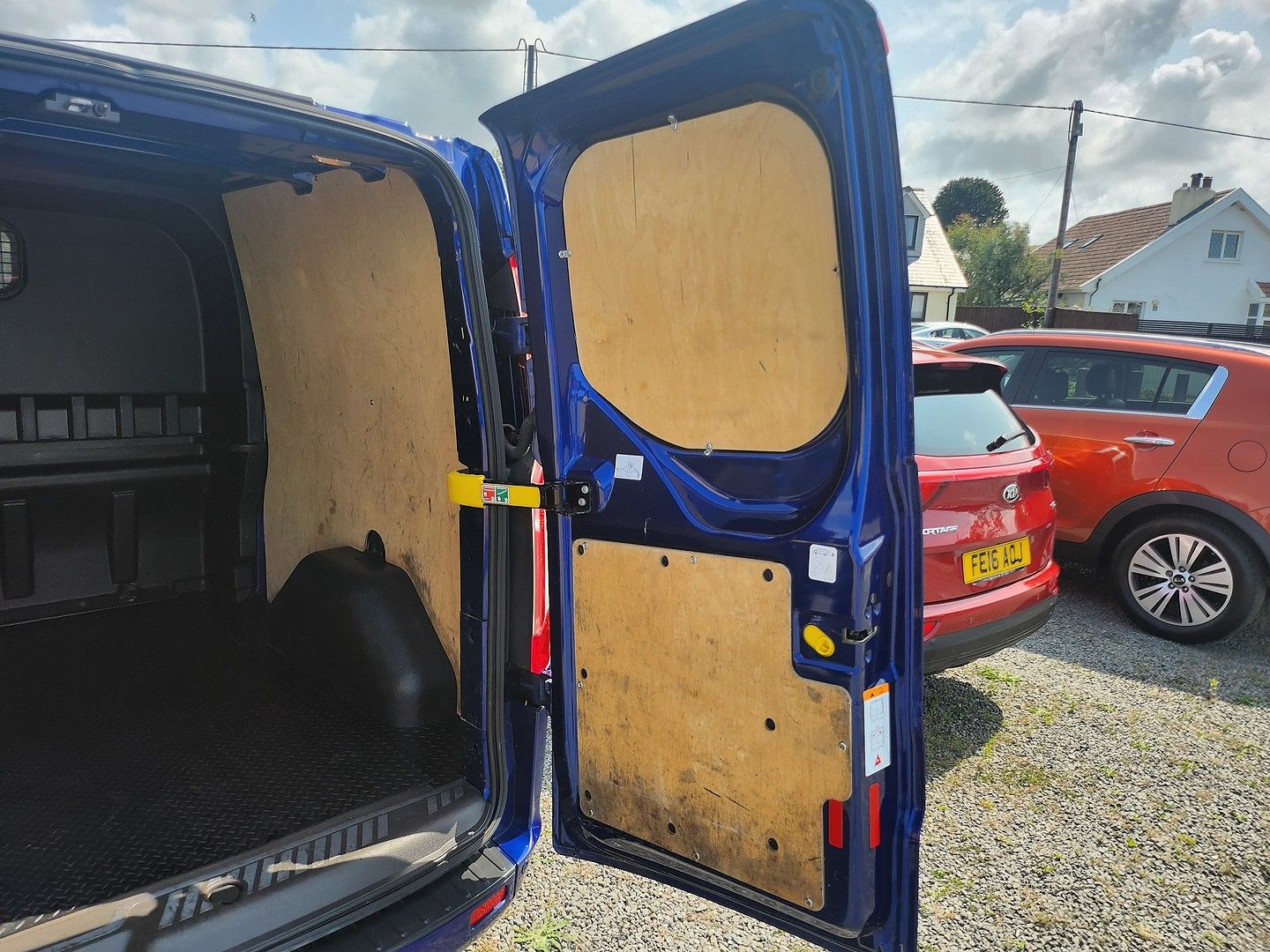

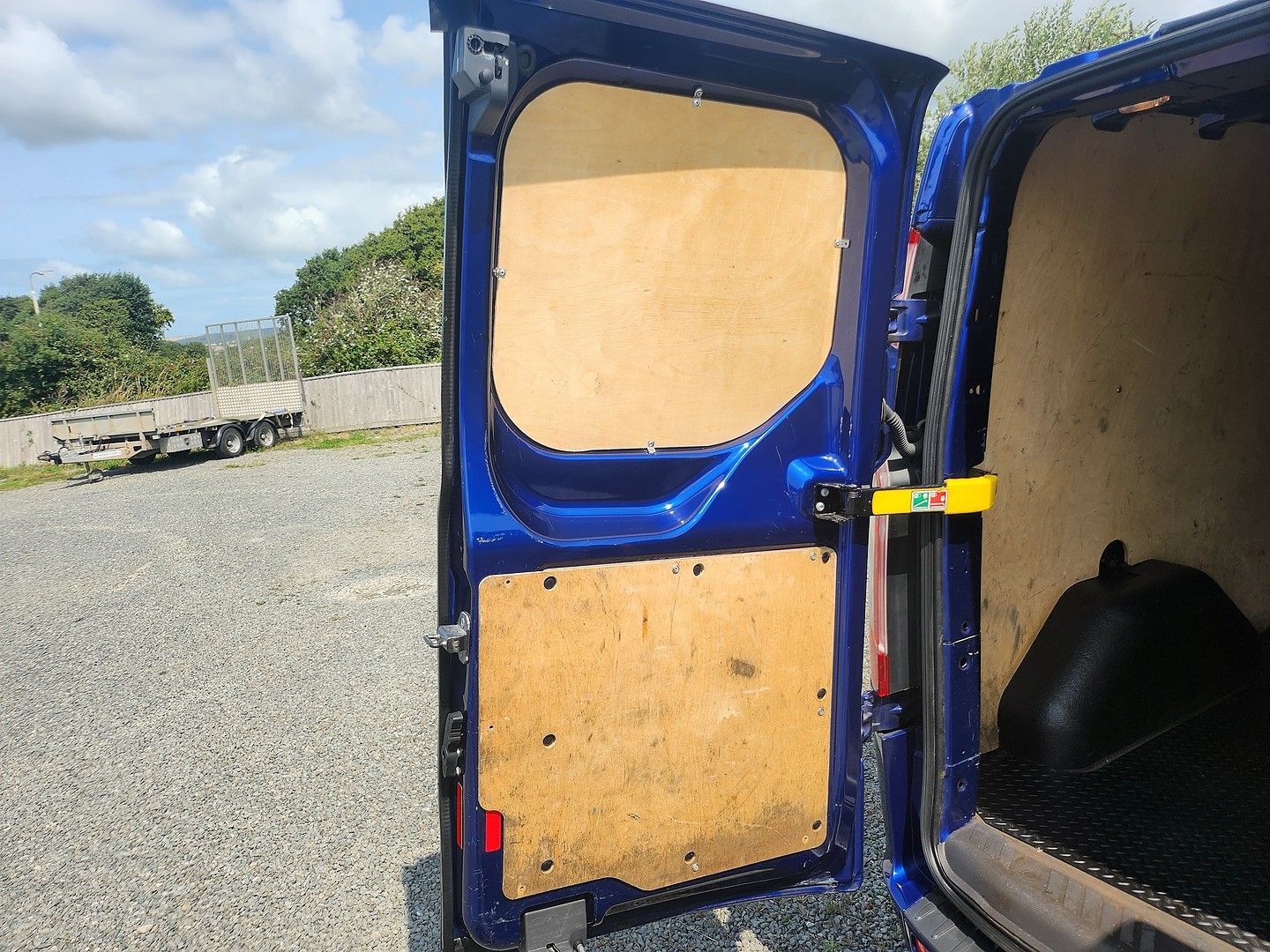

Passenger side sliding cargo doors 1,030mm wide, 1,320mm high, 40.6 inches wide, 52.0 inches high and 0 degree opening, rear double hinged cargo doors 1,400mm wide, 1,340mm high, 55.1 inches wide, 52.8 inches high and 180 degree opening
External dimensions
External dimensions: 5,339mm long, 1,986mm wide, 2,022mm high, 3,300mm wheelbase, 1,745mm front track, 1,718mm rear track, 12,800mm turning circle (kerb to kerb), 13,400mm turning circle (wall to wall), 1,028mm rear overhang, 210.2 inches long, 78.2 inche
Fuel tanks
80 litre, 17.6 UK gallon main fuel tank
Weights
Weights: Kerb weight (kg): 1,858, Kerb weight (lbs): 4,096, Max legal payload (kg): 1,042, Max legal payload (lbs): 2,297, Payload includes driver, Gross vehicle weight rating (kg): 2,900, Gross vehicle weight rating (lbs): 6,393, Max possible payload inc

Exterior

Aerial
Aerial
Bumpers
Painted front and rear bumpers
Day time running lights
Day time running lights
Door mirrors/cameras
Power door mirrors ; heated with integrated indicator lights
Electrically foldable mirrors
Electrically foldable mirrors
Electrically heated windscreen
Electrically heated windscreen
Front fog lights
Front fog lights
Paint
Metallic paint

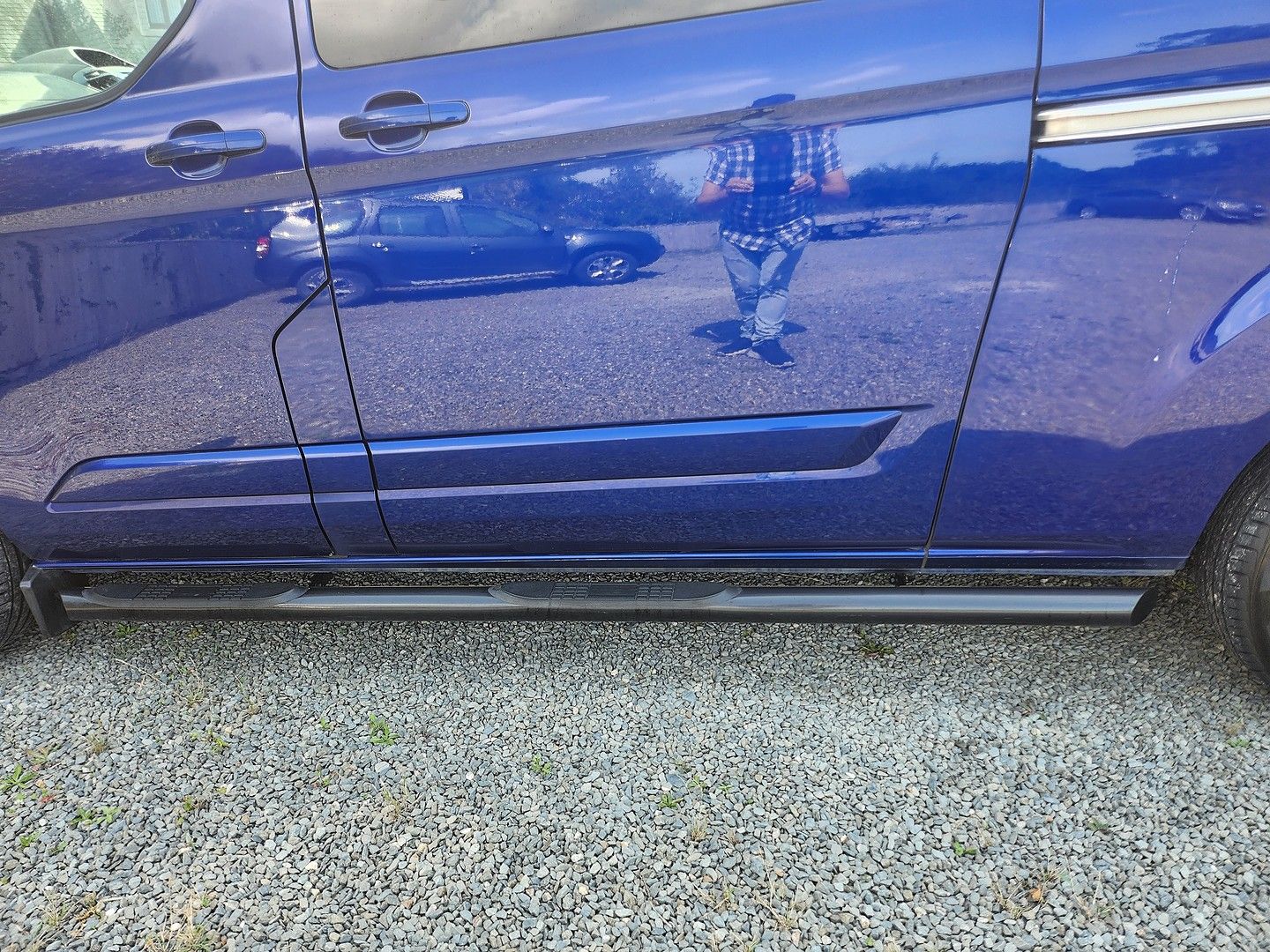

Side rubbing strip
Side rubbing strip
Spare wheel
Full size steel spare wheel
Tinted glass
Tinted glass
Tyres
Front and rear tyres: 16 inch diameter, 215mm wide, 65% profile, R rated ; Load index: 109 (official data)
Wheels

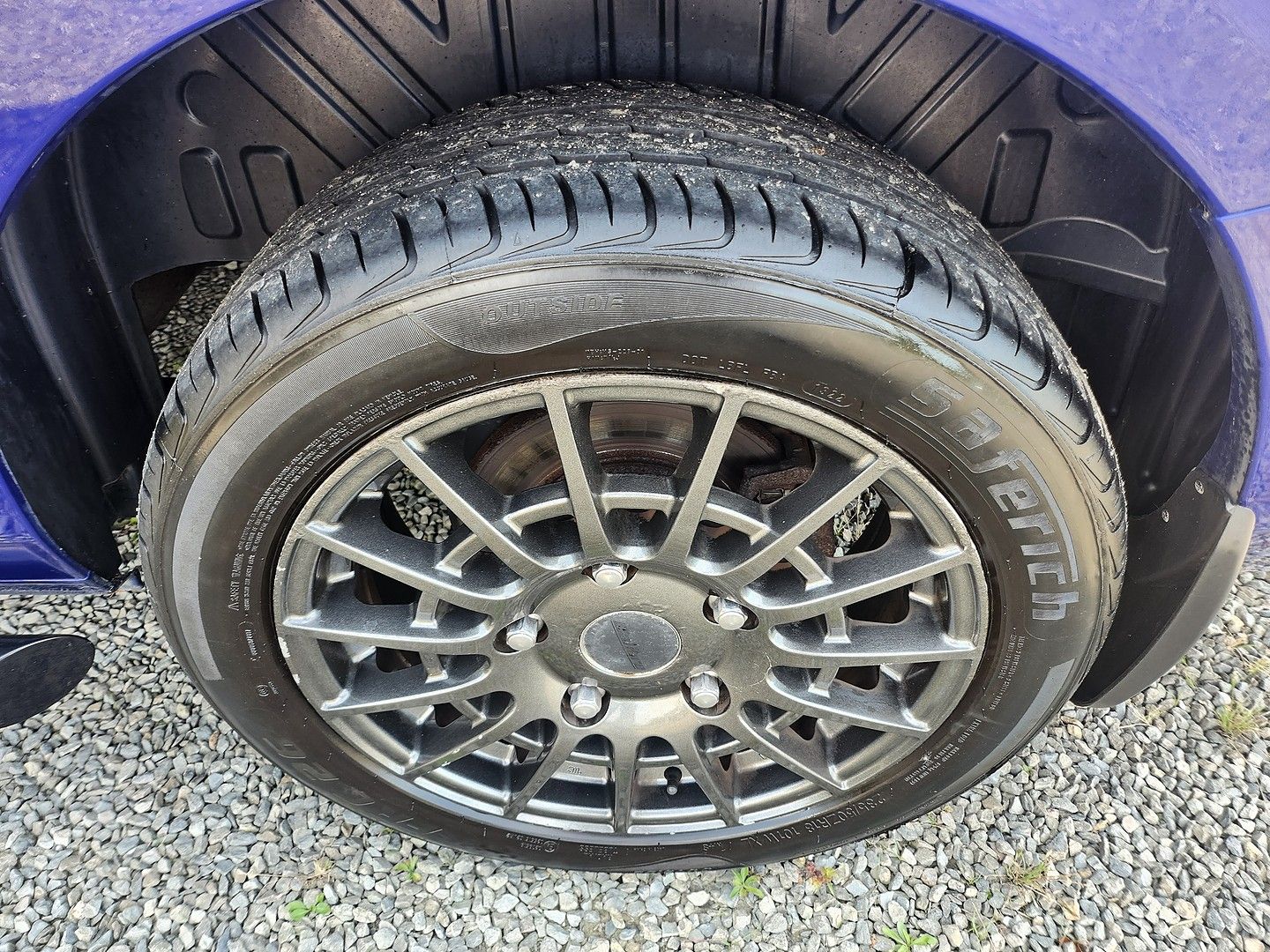

Front and rear wheels: 16 inch alloy rims ; width: 6.5 inches
Windscreen wipers
Rain sensing windscreen wipers with automatic frequency intermittent wipe

Interior

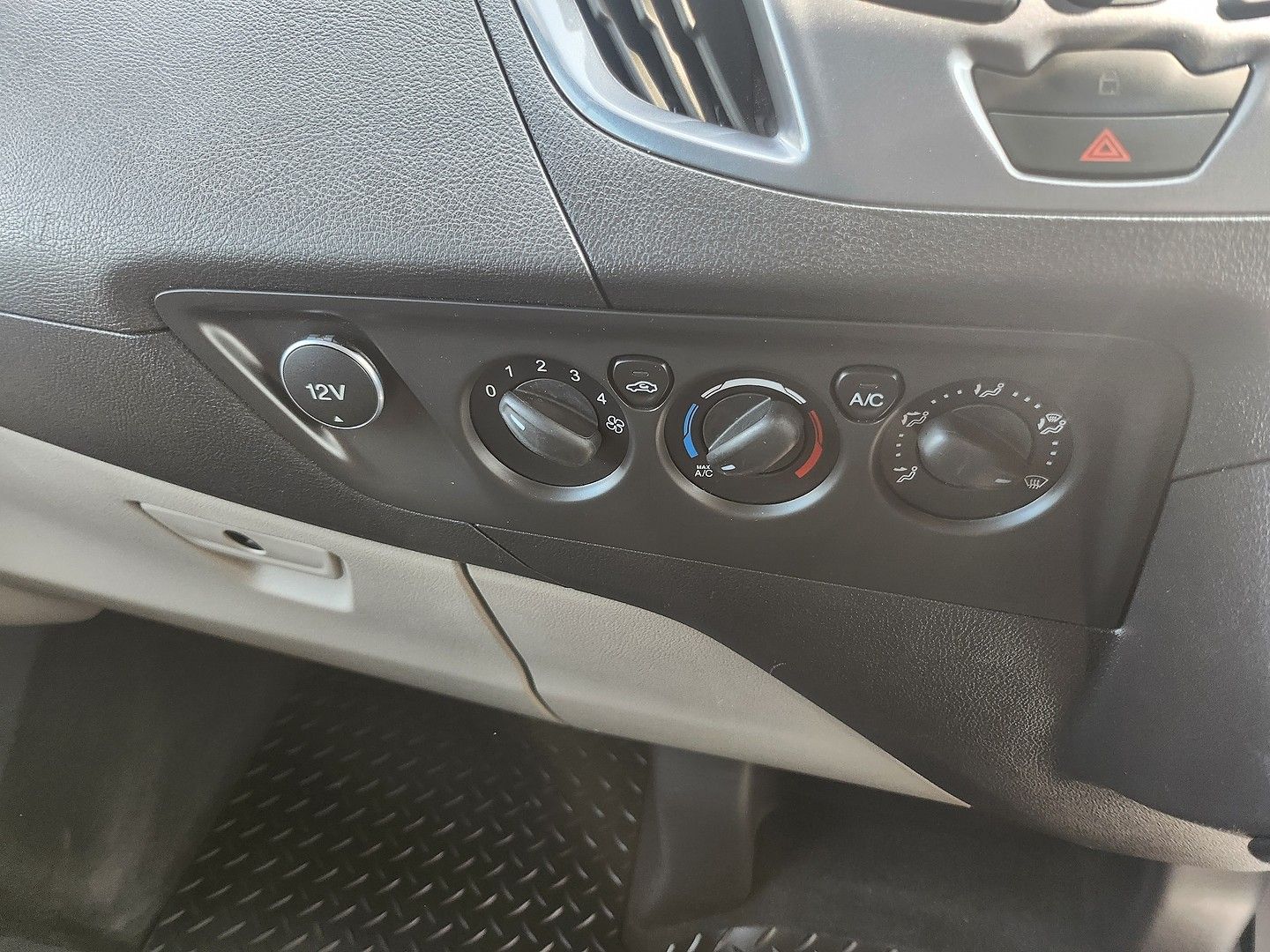

12v power outlet
12v power outlet located in front section
Air conditioning
Air conditioning
Audio player

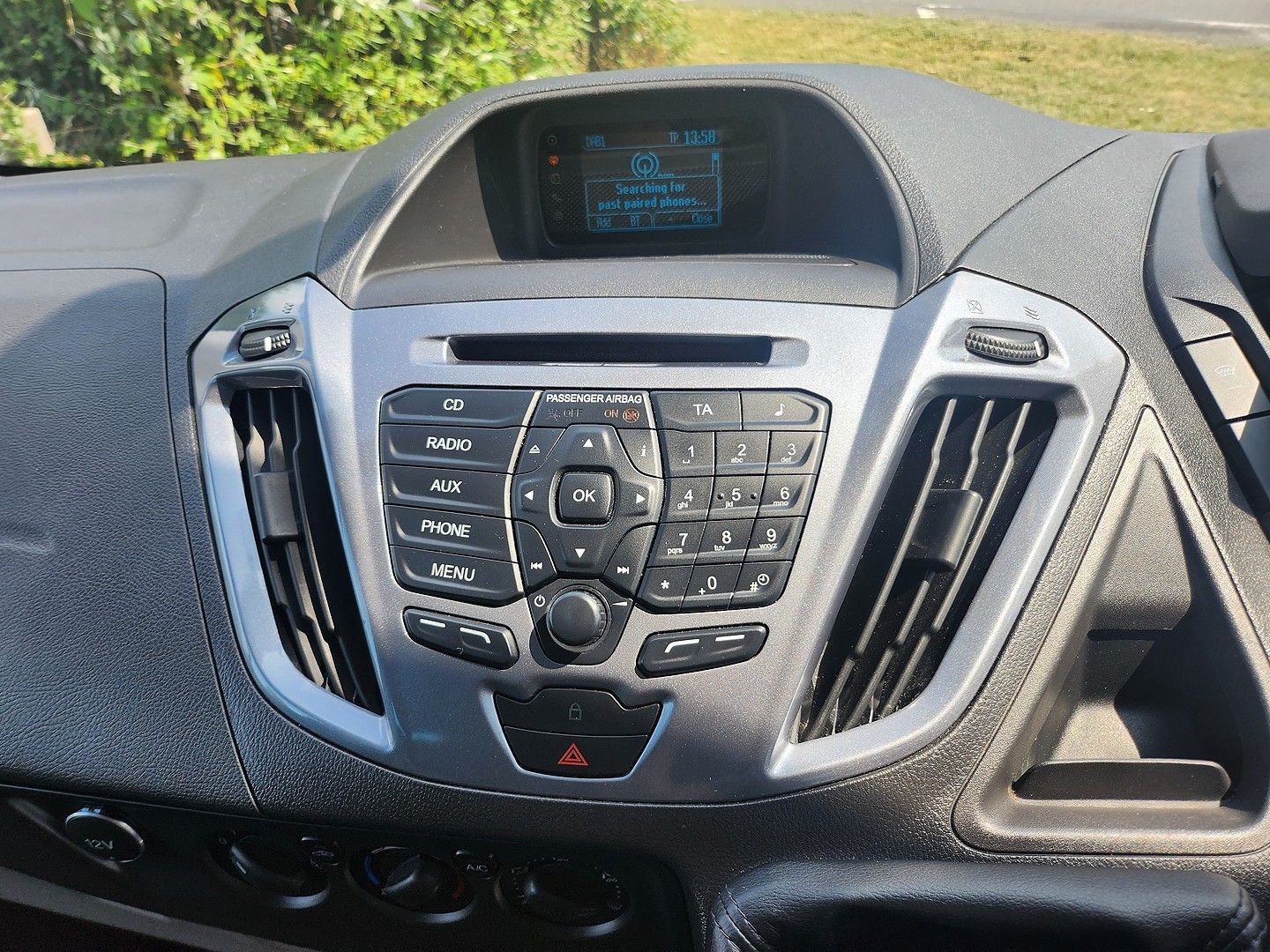

Audio system with CD player that reads MP3 CDs ; radio receives AM/FM/LW, digital and RDS
Below seat storage
Storage compartment under passenger seat
Bluetooth
Bluetooth includes phone connection and music streaming
Central door locking
Central door locking: Operated by remote Includes dead bolt
Computer
Computer includes average fuel consumption, instantaneous fuel consumption and range for remaining fuel
Connection to ext.entertainment devices
Connections for USB (front) and auxiliary audio devices (front)
Console
Partial overhead console
Cup holders
Cup holders for front seats
Doors
Front hinged drivers door and front passenger door
Electric windows
Front electric windows with one-touch on one window
External temperature
External temperature

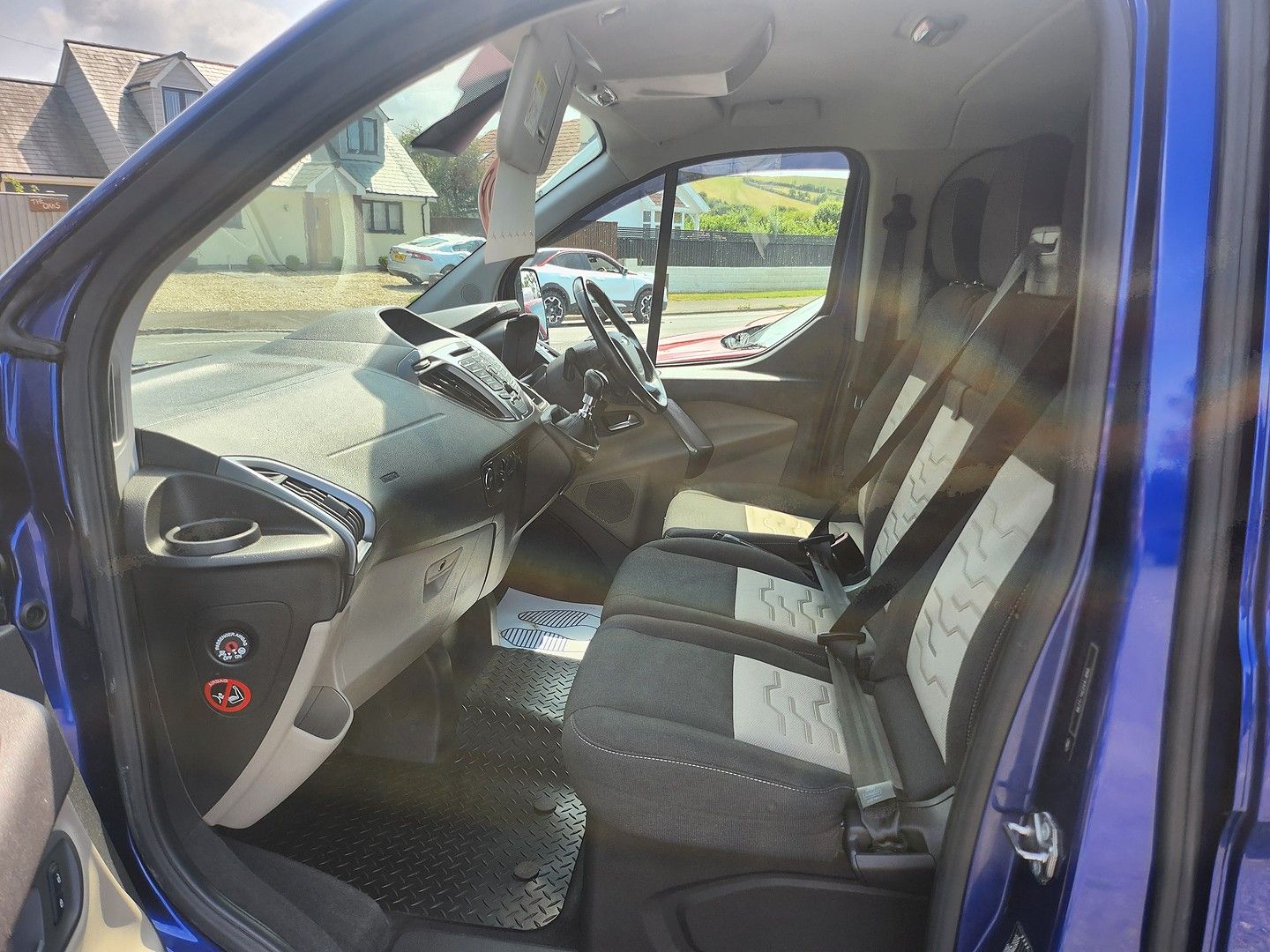

Front seat

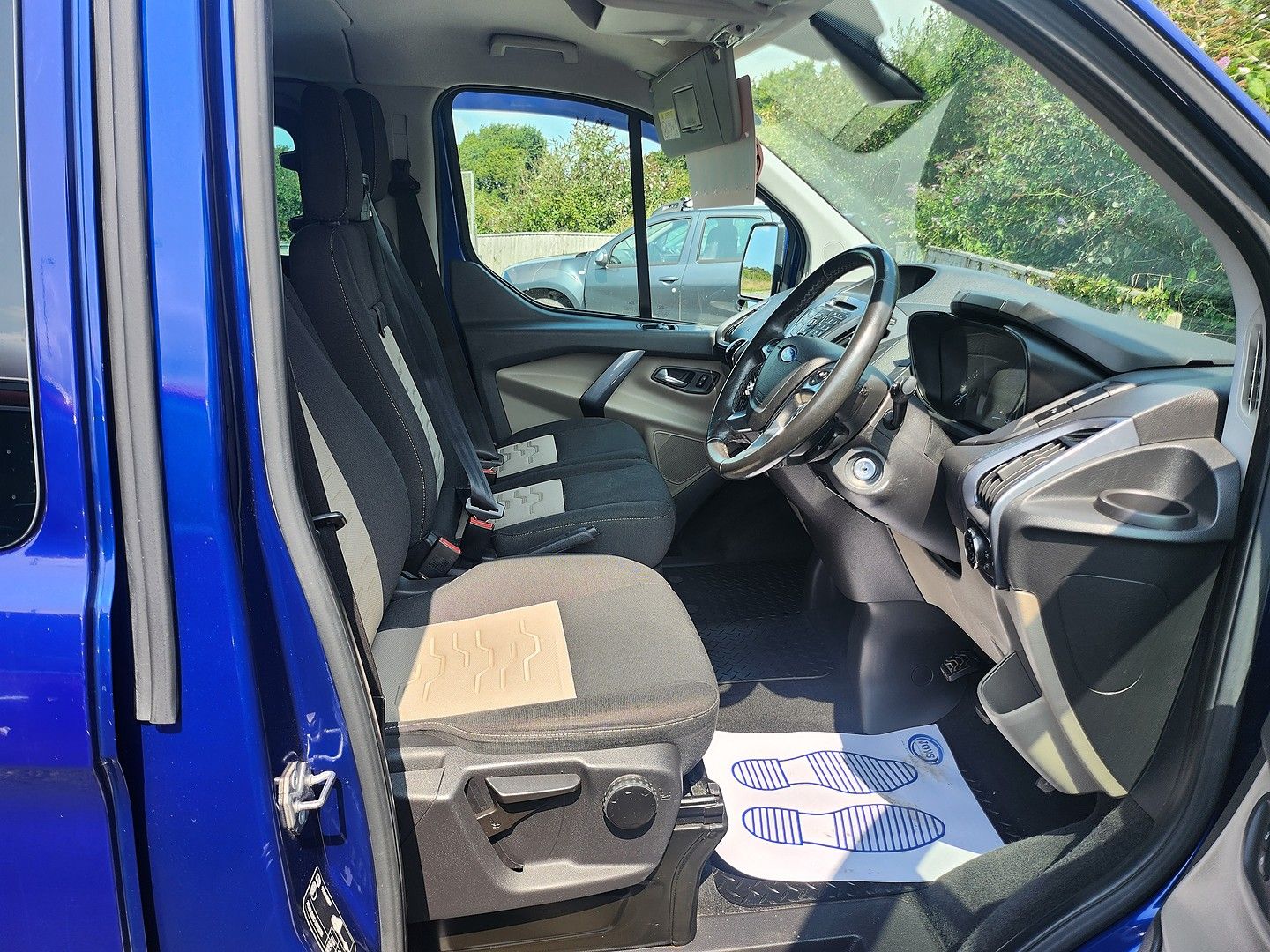

Driver seat: individual type, heated, passenger seat: bench type, heated, centre seat: bench type
Front seat centre armrest
Centre armrest between front seats
Load area light
Load area light
Load restraint
Load restraint hooks
Reading lights
Front reading lights

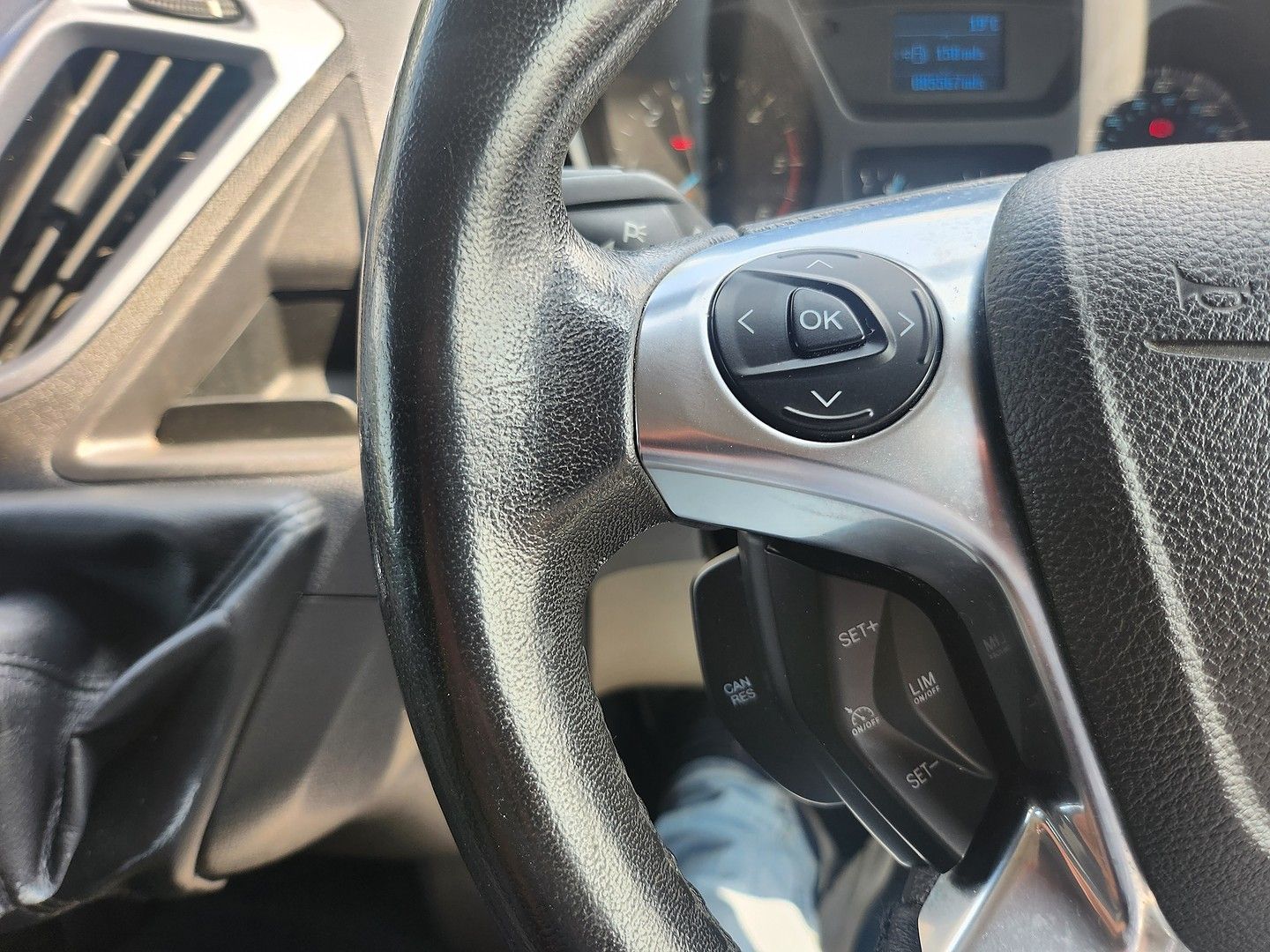

Remote audio controls
Steering wheel mounted remote audio controls
Seat upholstery
Seat upholstery: cloth and cloth
Seating
Three seats configured 3+0
Speakers
Four speakers

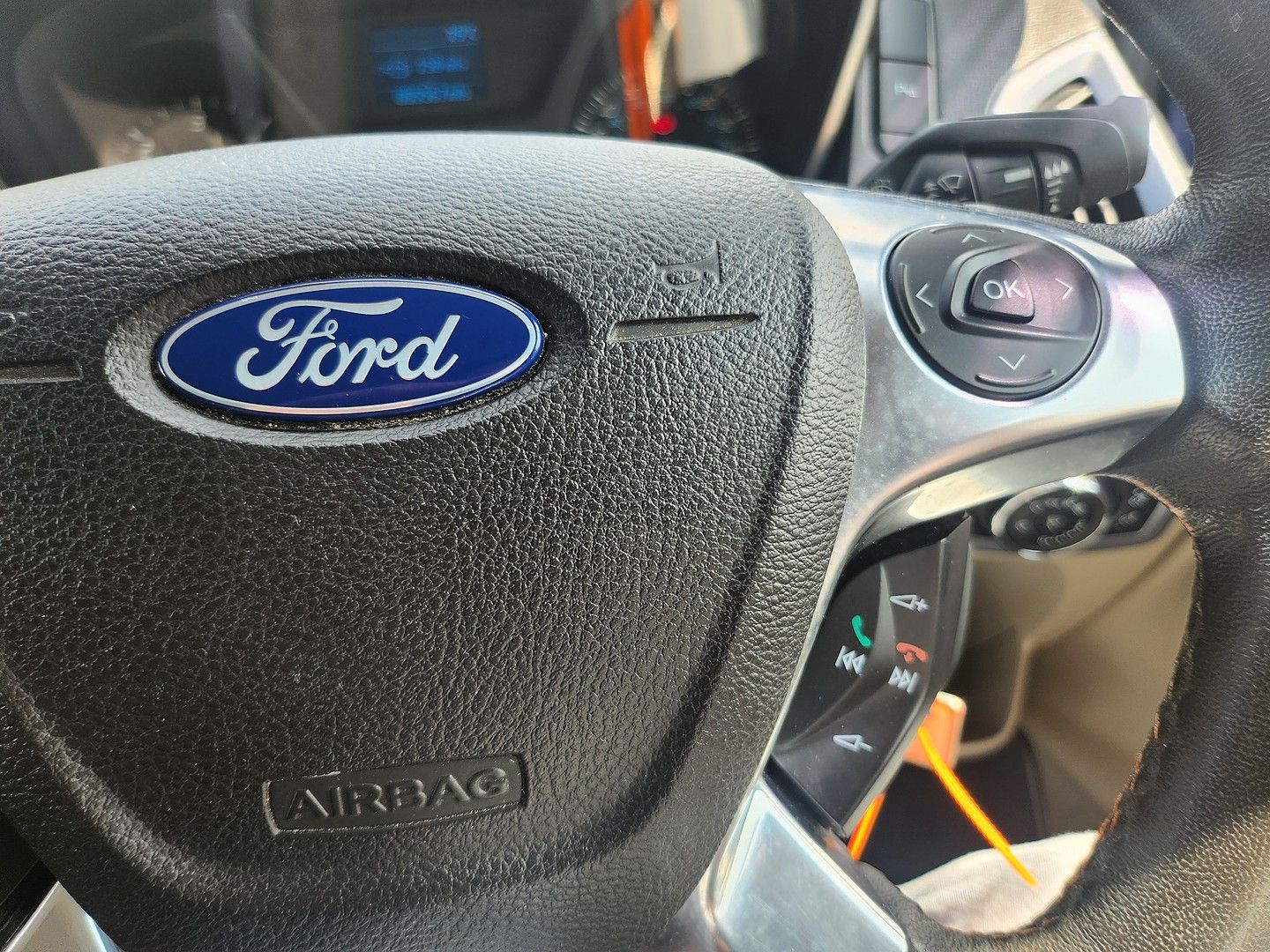

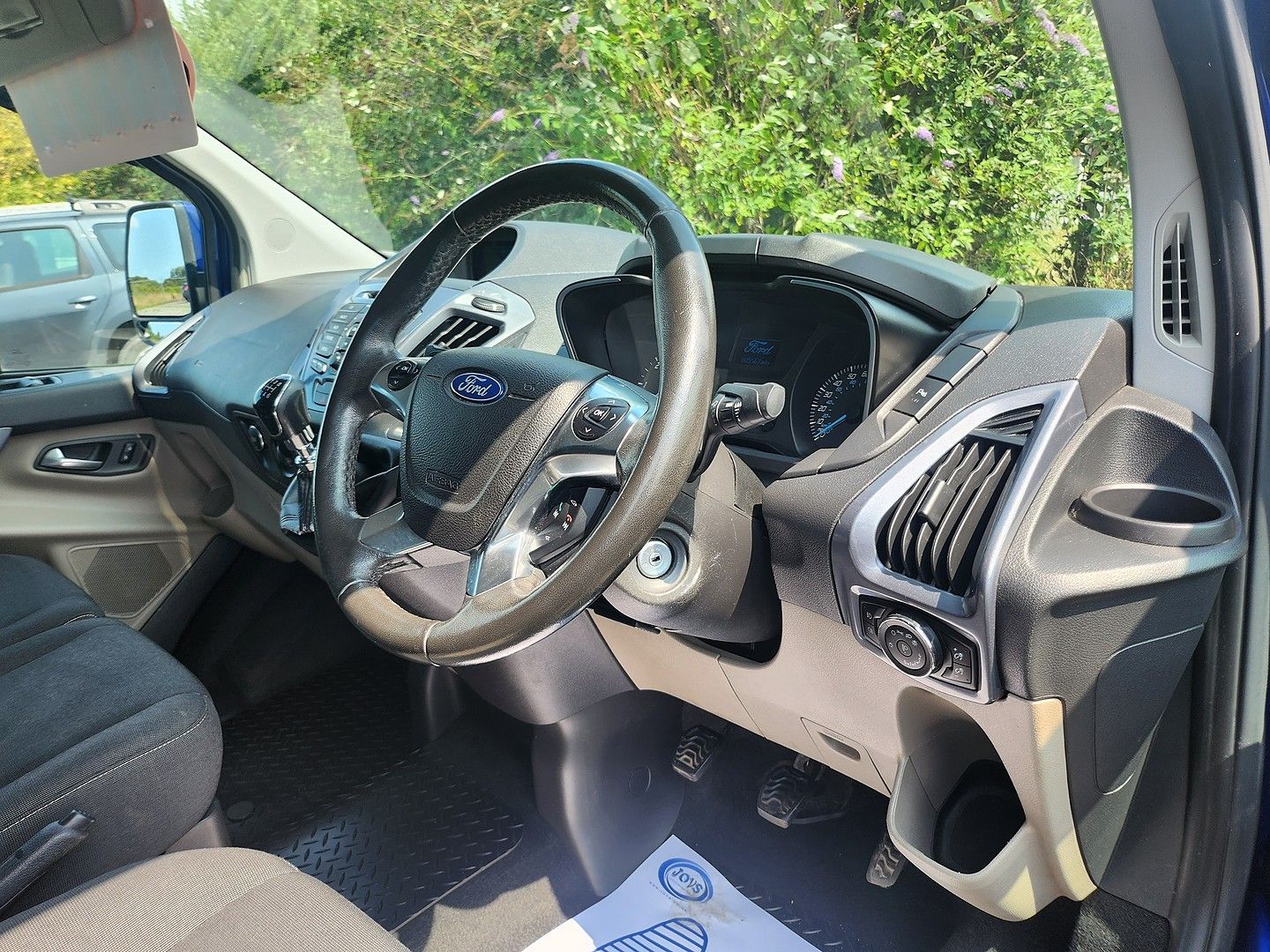

Steering wheel

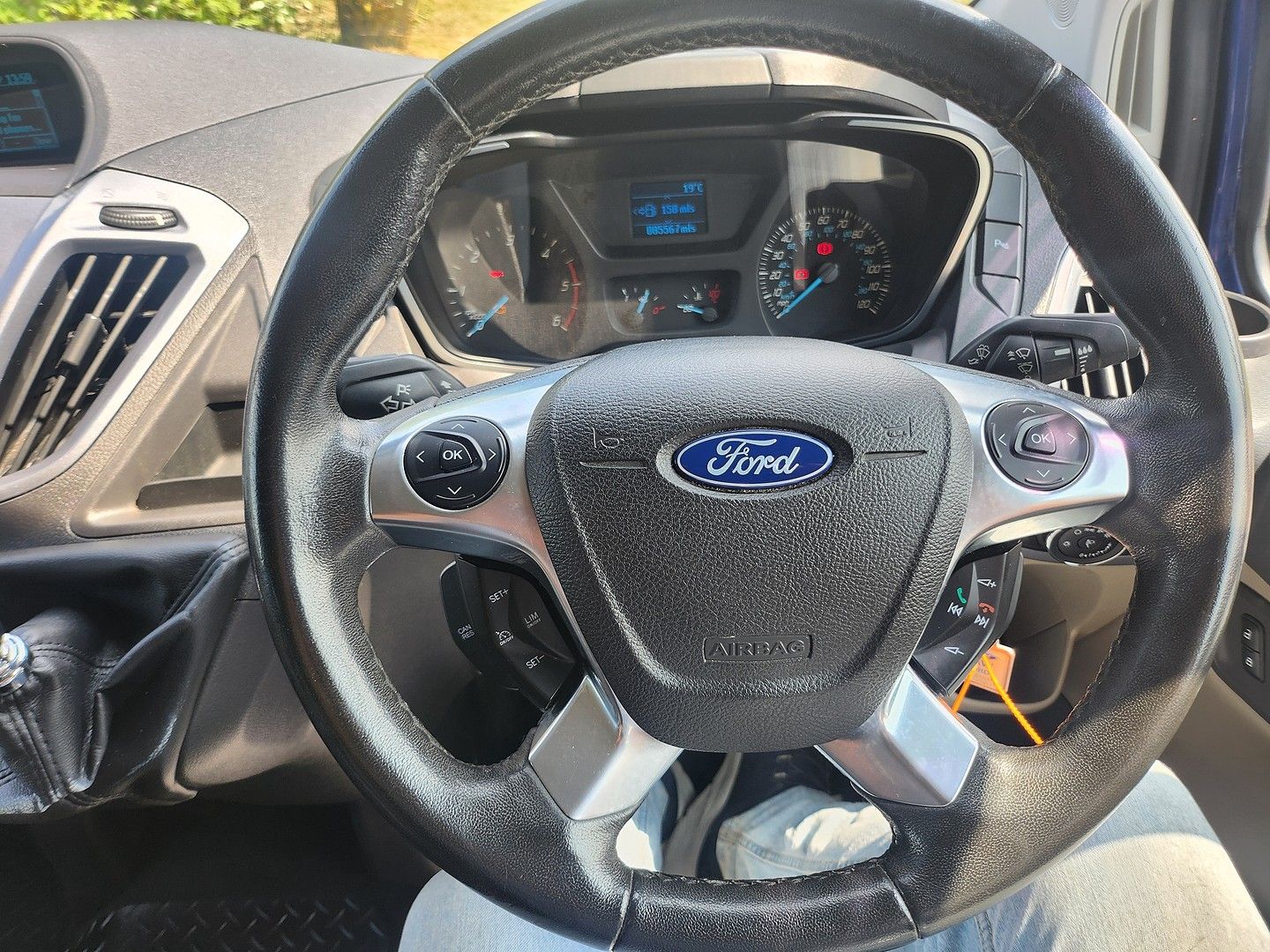

Alloy & leather multi-function steering wheel with tilt adjustment and telescopic adjustment
Tachometer
Tachometer
Ventilation system
Ventilation system with air filter

Others

Airbags
Two airbags
Apps control
Apps control
Body style

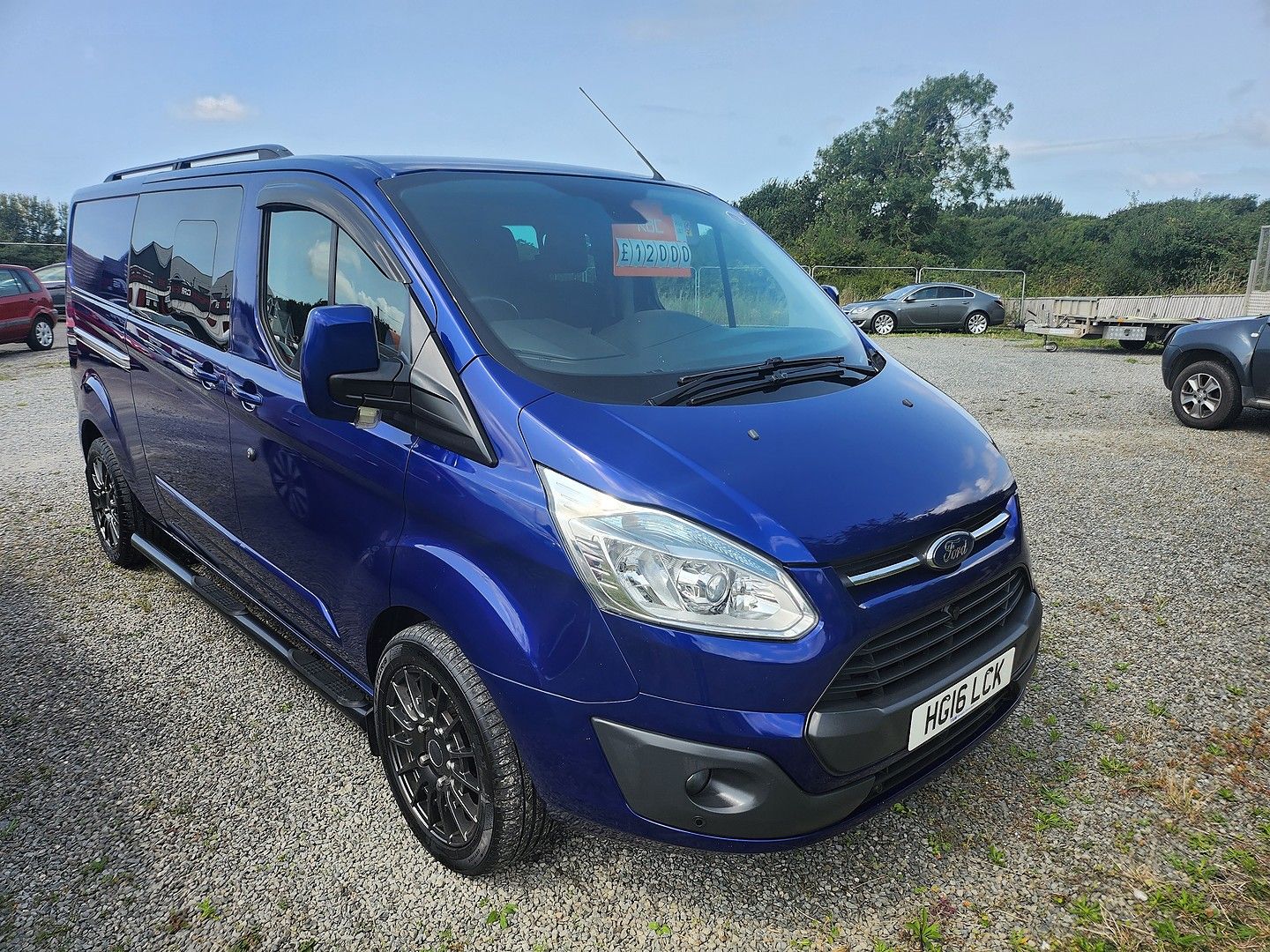

Four door long wheelbase panel van with standard roof ; Platform code: V36X, Right hand drive
Charges
Charges: VAT [20%] = 4,649.00, VED = 230.00, FRF = 55.00, Showroom Tax = 230.00, Additional Charges (GB) = 25.00
Data completeness
Data completeness: up to date pricing data, up to date data for key leasing items, specifications data from official documentation, up to date colour & trim data, up to date option pricing data and up to date option content data
Date introduced
Date introduced: Model introduced 01 Jul 2012 and Version introduced 01 Jul 2013
Delivery charges
Fixed delivery charges: 636.00, 530.00 (excluding VAT)
Floor covering
Floor covering: plastic/rubber in the passenger compartment
Global segment
Global segment
Glove compartment
Lockable glove compartment
Insurance
Insurance: 8E-T1
Load area side covering
Load area side covering: board
Load-through
Load-through
Overall bulkhead size
Bulkhead is full bulkhead height mm high and full bulkhead width mm wide
Rear axle
Rear axle
Regional segment
Regional segment
Seat belt warning
Seat belt warning on one seats
Text to speech / speech to text
Text to speech / speech to text
Trim
Limited trim level - JATO classification: L1
Warranty anti-corrosion
Anticorrosion warranty: 144 months, Unlimited miles, Unlimited km
Warranty paint
Paint warranty: 36 months, Unlimited miles, Unlimited km
Warranty powertrain - OEM
Manufacturers powertrain warranty: 36 months, 160,934 km, 100,000 miles
Warranty powertrain - Total
Powertrain warranty: 36 months, 99,979 miles, 160,900 km
Warranty roadside assistance
Road-side assistance warranty: 12 months, Unlimited miles, Unlimited km
Warranty whole vehicle - OEM
Manufacturers whole vehicle warranty: 36 months, 160,934 km, 100,000 miles
Warranty whole vehicle - Total
Vehicle warranty: 36 months, 99,979 miles, 160,900 km

Safety

ABS
ABS
Brake assist system
Brake assist system
Disc brakes
Four disc brakes including two ventilated discs
Electronic brake distribution
Electronic brake distribution
Electronic traction control
Electronic traction control
Front airbag
Drivers airbag, passengers airbag with de-activation switch
Front seat belts
Height adjustable seat belt with pre-tensioners on drivers seat, height adjustable seat belt with pre-tensioners on front passenger seat, seat belt with pre-tensioners on central front seat
Head restraints

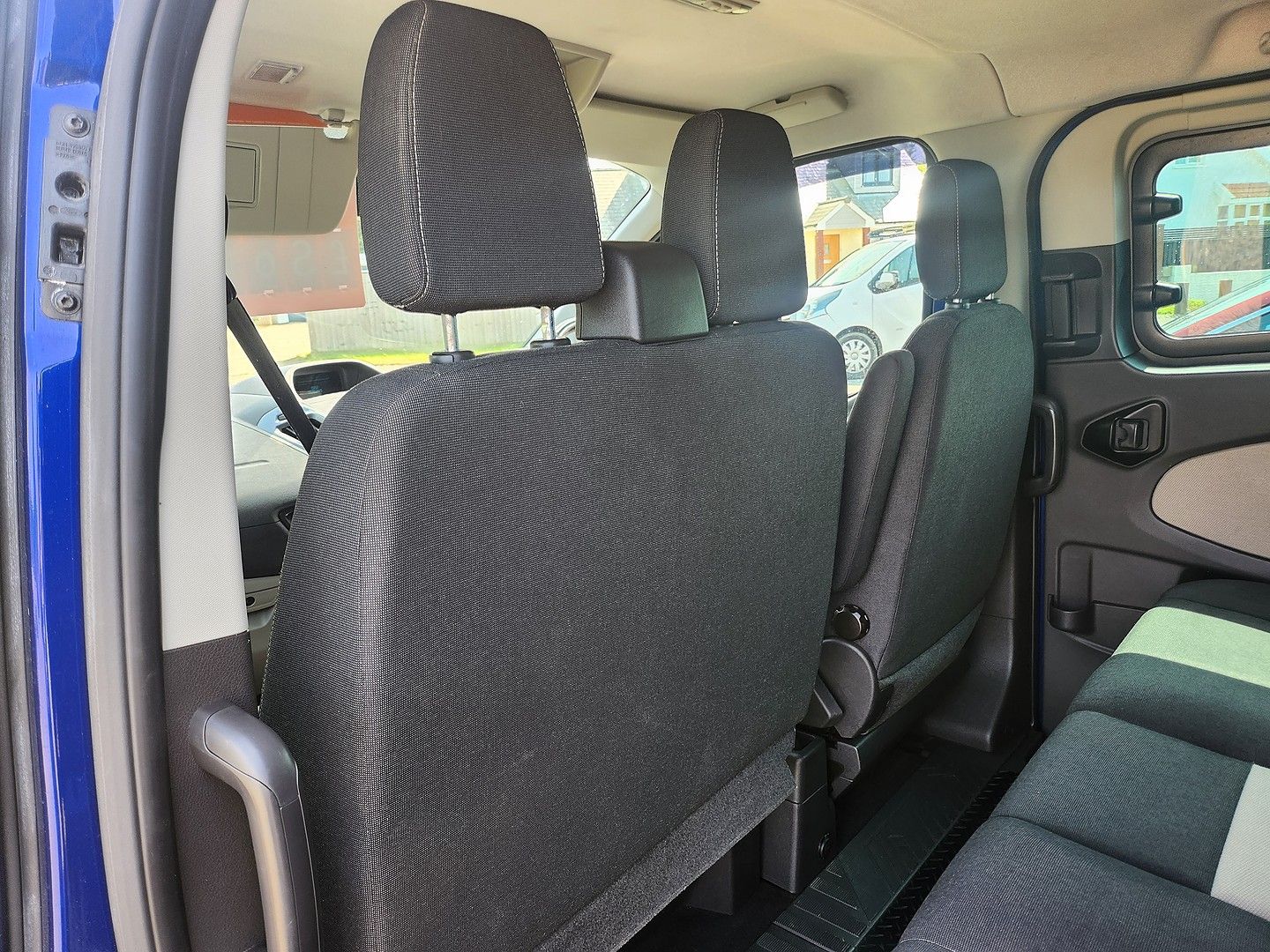

Three head restraints on front seats with height adjustment
Headlight control

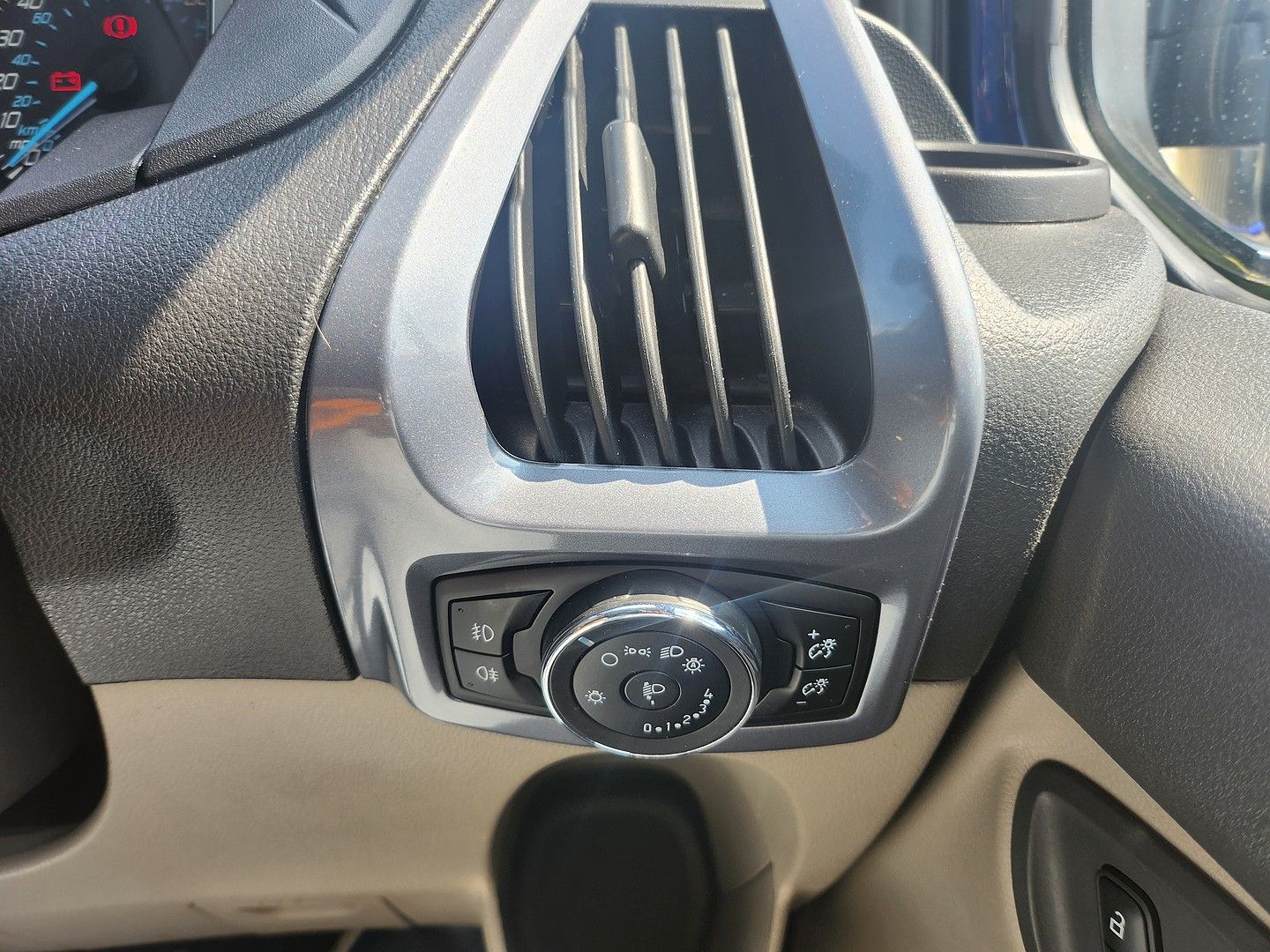

Headlight controlsystems: dusk sensor and height adjustment
Headlights
Halogen low beam halogen high beam headlights with complex surface lenses
Parking distance sensors
Front radar-type parking distance sensors, rear radar & camera-type parking distance sensors
Parking distance system
Front radar-type parking distance sensors, rear radar & camera-type parking distance sensors
Stability control
Stability controlsystem

Security

Anti-theft protection
Anti-theft protection with interior monitoring

Technical

Compressor
Turbo-charger
Cruise control
Cruise control
Drive
Front-wheel drive
Emission control level
Emissions: EU5 compliant and 186 g/km CO2 (max)
Energy recuperation
Energy recuperation
Engine
2,198 cc 2.2 litres in-line 4 engine with 86.0 mm bore, 94.6 mm stroke, 15.5 compression ratio and four valves per cylinder Engine code: EN-CY
Fuel
Primary fuel type: diesel
Fuel consumption
Fuel consumption: 8.1 l/100km (urban), 6.4 l/100km (country/highway), 7.0 l/100km (combined), 29 mpg (urban US), 37 mpg (country/highway US), 34 mpg (combined US), 12.3 km/l (urban), 15.6 km/l (country/highway), 14.3 km/l (combined), 35 mpg (urban UK), 44
Fuel system
Fuel system: common rail diesel
Hill holder
Hill holder
Main service
Main service required after 50,000 km, 31,069 miles, 24 months
Particle filter system
Particle filter system
Performance
Performance:
Power
Power: (from primary fuel) 92 kW , 125 HP ISO @ 3,500 rpm; , 350 Nm @ 1,450 rpm
Power steering
Power steering:
Powertrain
Powertrain: internal combustion engine
Powertrain type
Powertrain: internal combustion engine
Speed limiter
Speed limiter
Suspension
Independent strut front suspension with anti-roll bar and coil springs, rigid beam rear suspension with leaf springs
Traffic light coding
Traffic light coding:

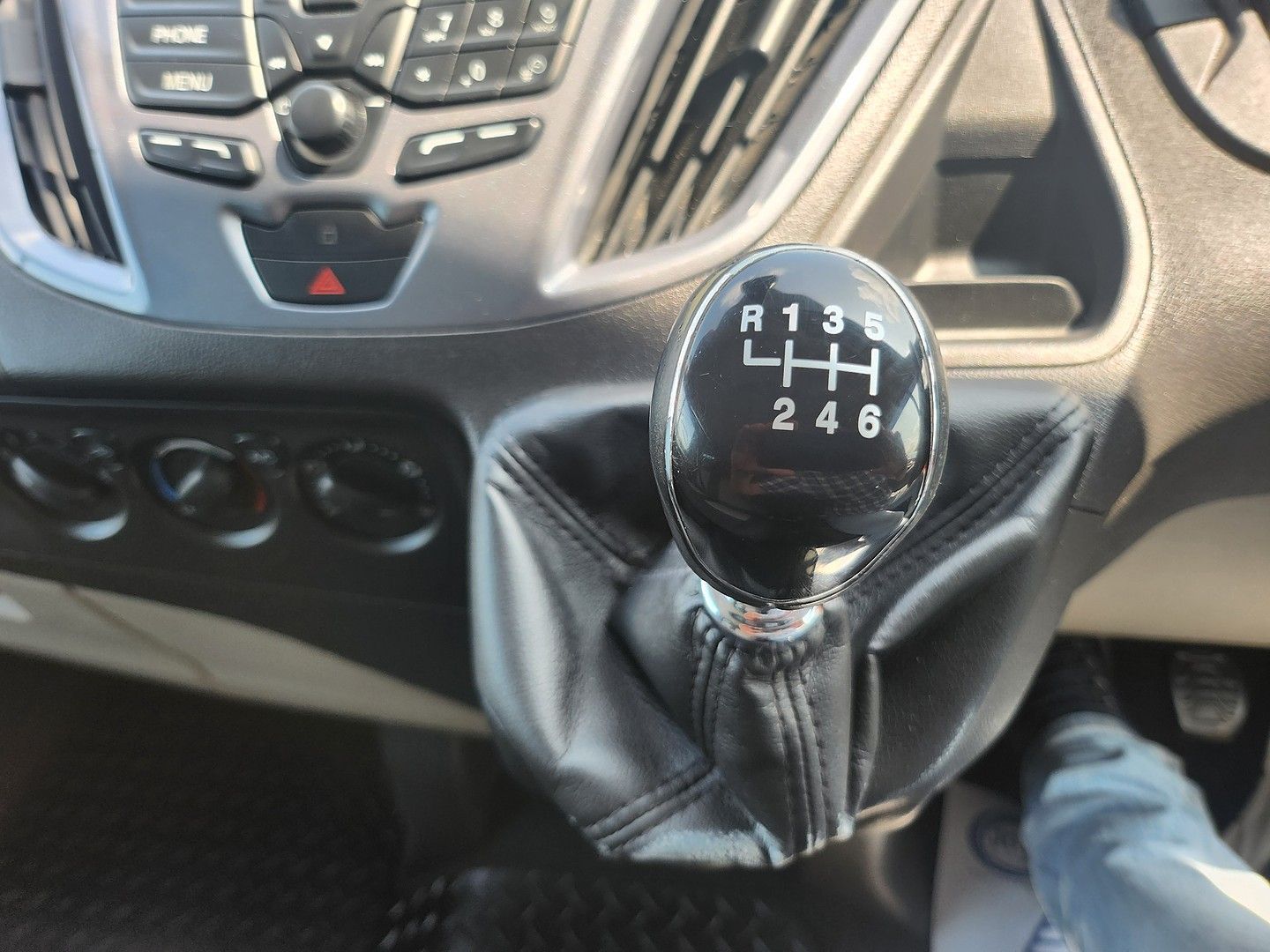

Transmission
Transmission: 6-speed manual
