Dimensions

External dimensions
External dimensions: 4,077mm long, 1,751mm wide, 1,604mm high, 2,489mm wheelbase, 1,487mm front track, 1,477mm rear track, 160.5 inches long, 68.9 inches wide, 63.1 inches high, 98.0 inch wheelbase, 58.5 inch front track and 58.1 inch rear track
Fuel tanks
48 litre, 10.6 UK gallon main fuel tank
Internal dimensions
Internal dimensions: front headroom (mm): 1,017, front headroom (inches): 40.0, rear headroom (mm): 988, rear headroom (inches): 38.9, front leg room (mm): 1,103, front leg room (inches): 43.4, rear leg room (mm): 939, rear leg room (inches): 37.0, front

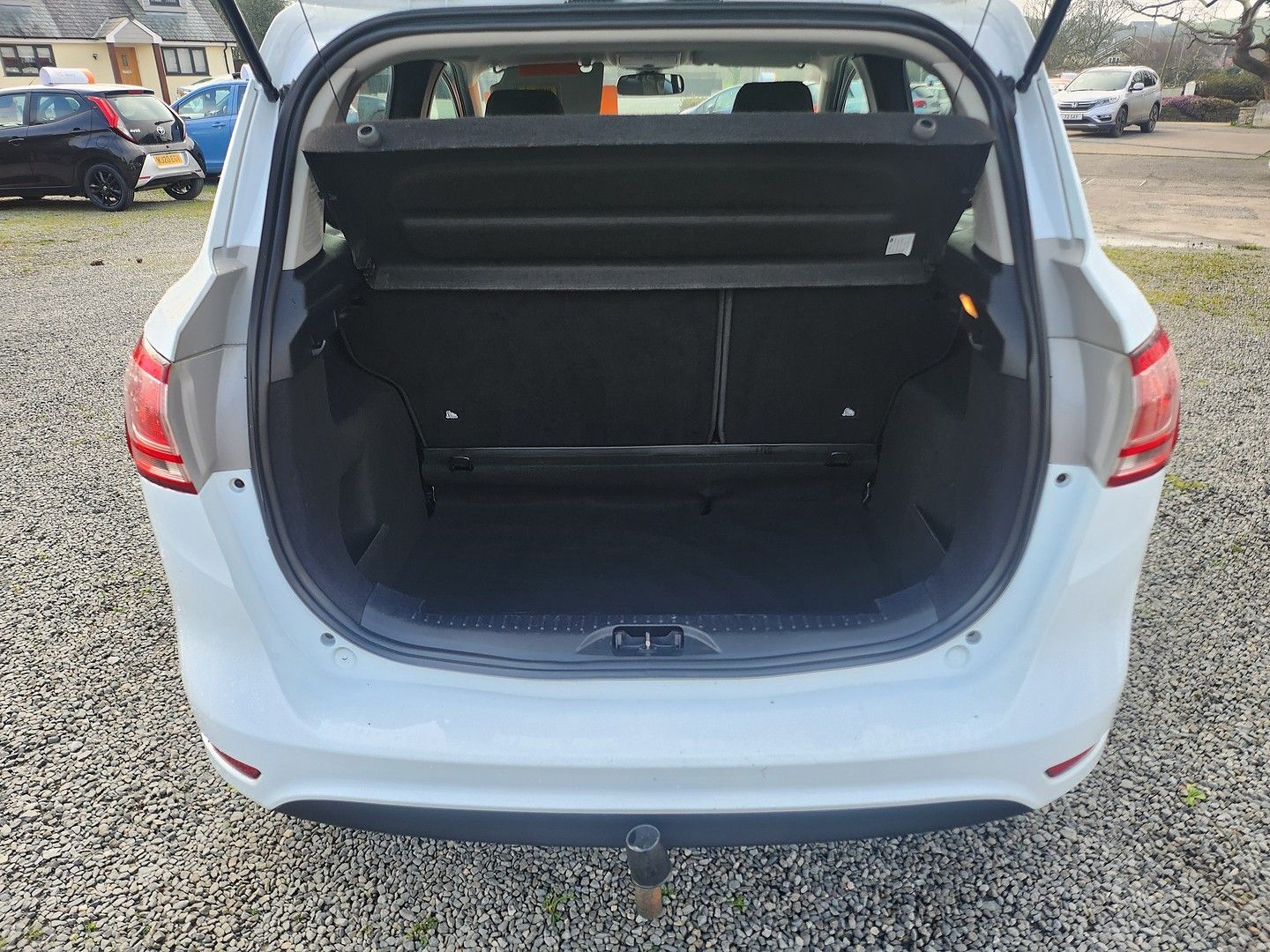

Load compartment capacity
Load compartment capacity: 318 litres with rear seats up filled to lower edge of window, 1,386 litres with rear seats down filled to ceiling, 11.2 cu ft with rear seats up filled to lower edge of window and 48.9 cu ft with rear seats down filled to ceilin
Weights
Weights: Kerb weight (kg): 1,279, Kerb weight (lbs): 2,820, Kerb weight includes driver, Gross vehicle weight rating (kg): 1,760, Gross vehicle weight rating (lbs): 3,880, Gross trailer weight braked (kg): 750, Gross trailer weight braked (lbs): 1,653, Gr

Exterior

Aerial
Aerial
Bumpers
Front and rear bumpers
Chrome/bright trim
Chrome/bright trim around side windows
Day time running lights
Day time running lights
Door mirrors/cameras
Body colour power door mirrors ; heated with integrated indicator lights
Electrically heated windscreen
Electrically heated windscreen
Front fog lights
Front fog lights
LED lights
LED day time running lights
Paint
Gloss paint
Rear windscreen
Rear windscreen with intermittent wiper
Tinted glass
Tinted glass
Tyre kit
Tyre kit
Tyres

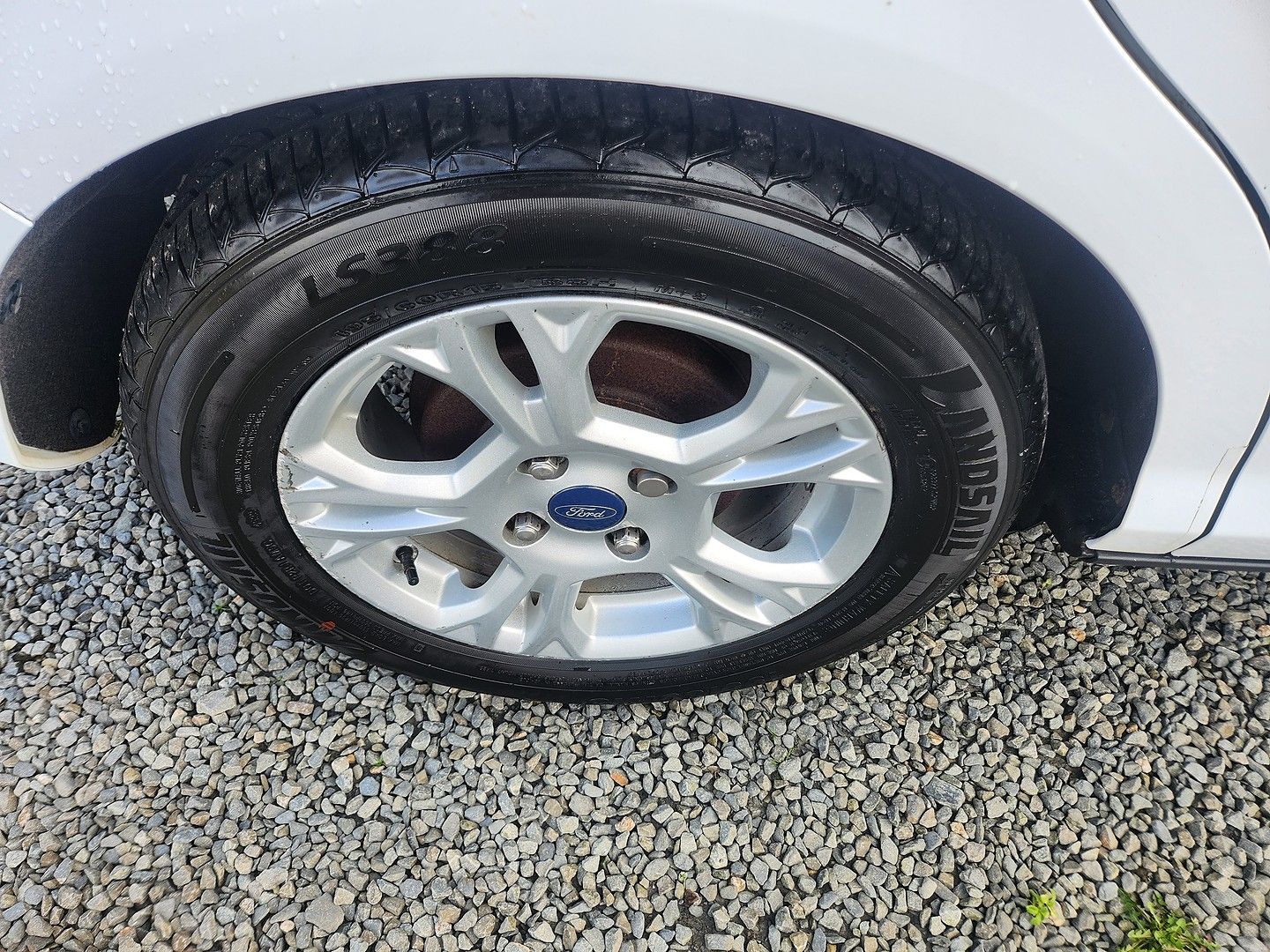

Front and rear tyres: 15 inch diameter, 195mm wide, 60% profile, H rated ; Load index: 88 (official data)
Wheels
Front and rear wheels: 15 inch alloy rims ; width: 6.0 inches
Windscreen wipers
Windscreen wipers

Interior

12v power outlet
12v power outlet located in front section and rear section
Air conditioning
Air conditioning
Audio player

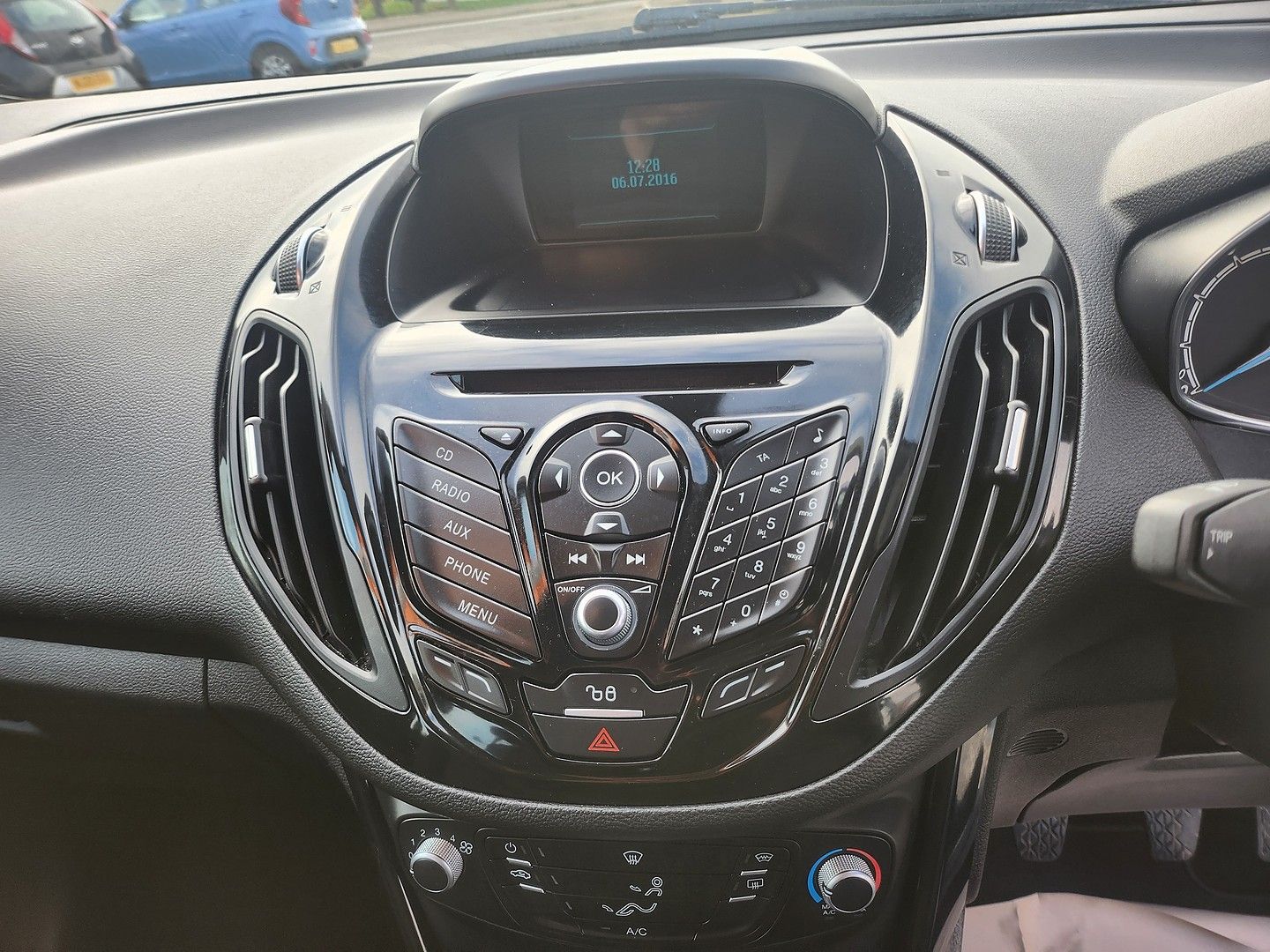

Audio system with CD player that reads MP3 CDs ; radio receives AM/FM, digital and RDS
Bluetooth
Bluetooth includes phone connection and music streaming
Central door locking
Central door locking: Operated by remote Includes windows and dead bolt
Computer
Computer includes average speed, average fuel consumption, instantaneous fuel consumption and range for remaining fuel
Connection to ext.entertainment devices
Connections for USB (front) and auxiliary audio devices (front)
Console

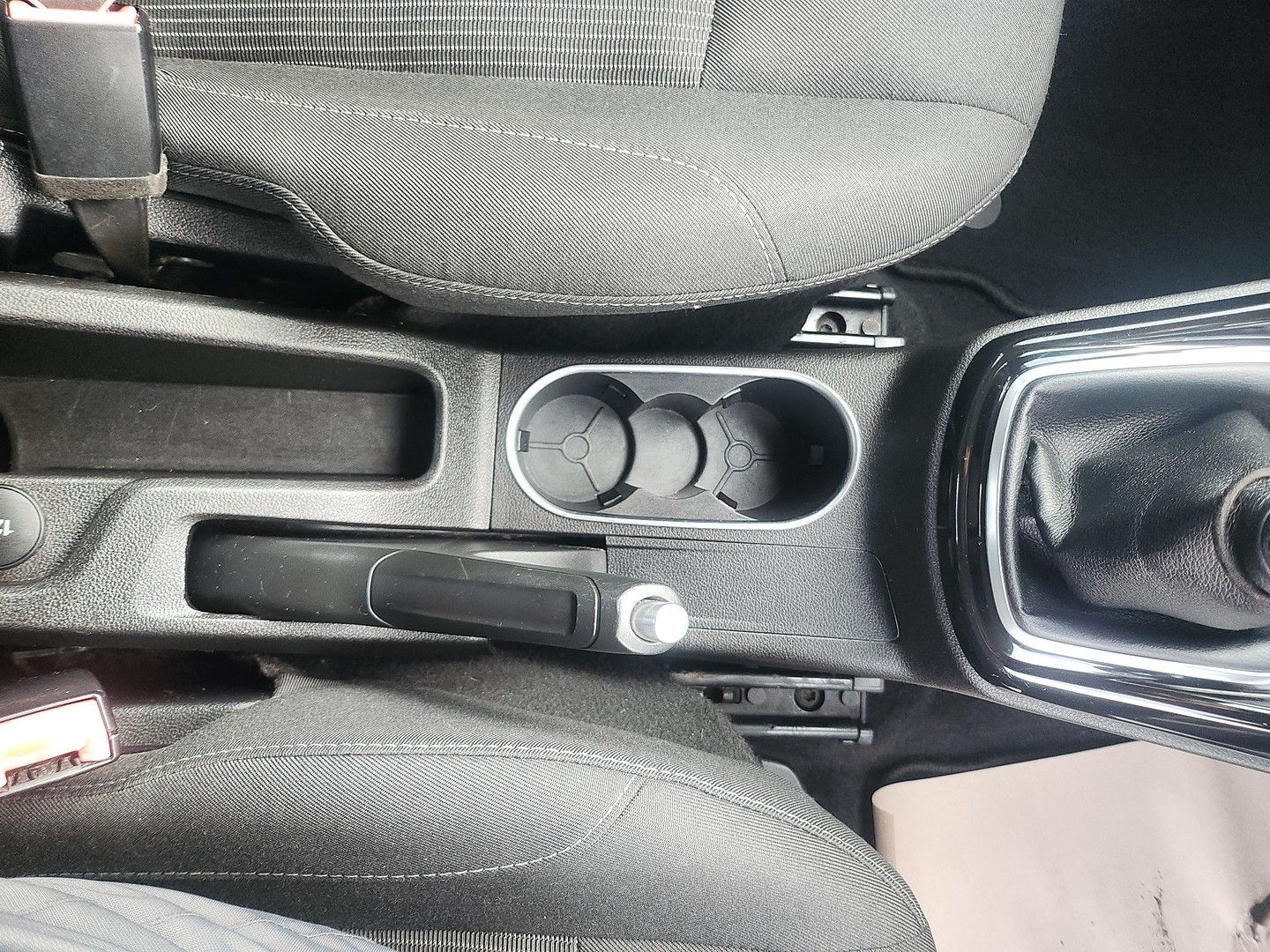

Floor console, partial overhead console
Cup holders
Cup holders for front seats and rear seats
Doors

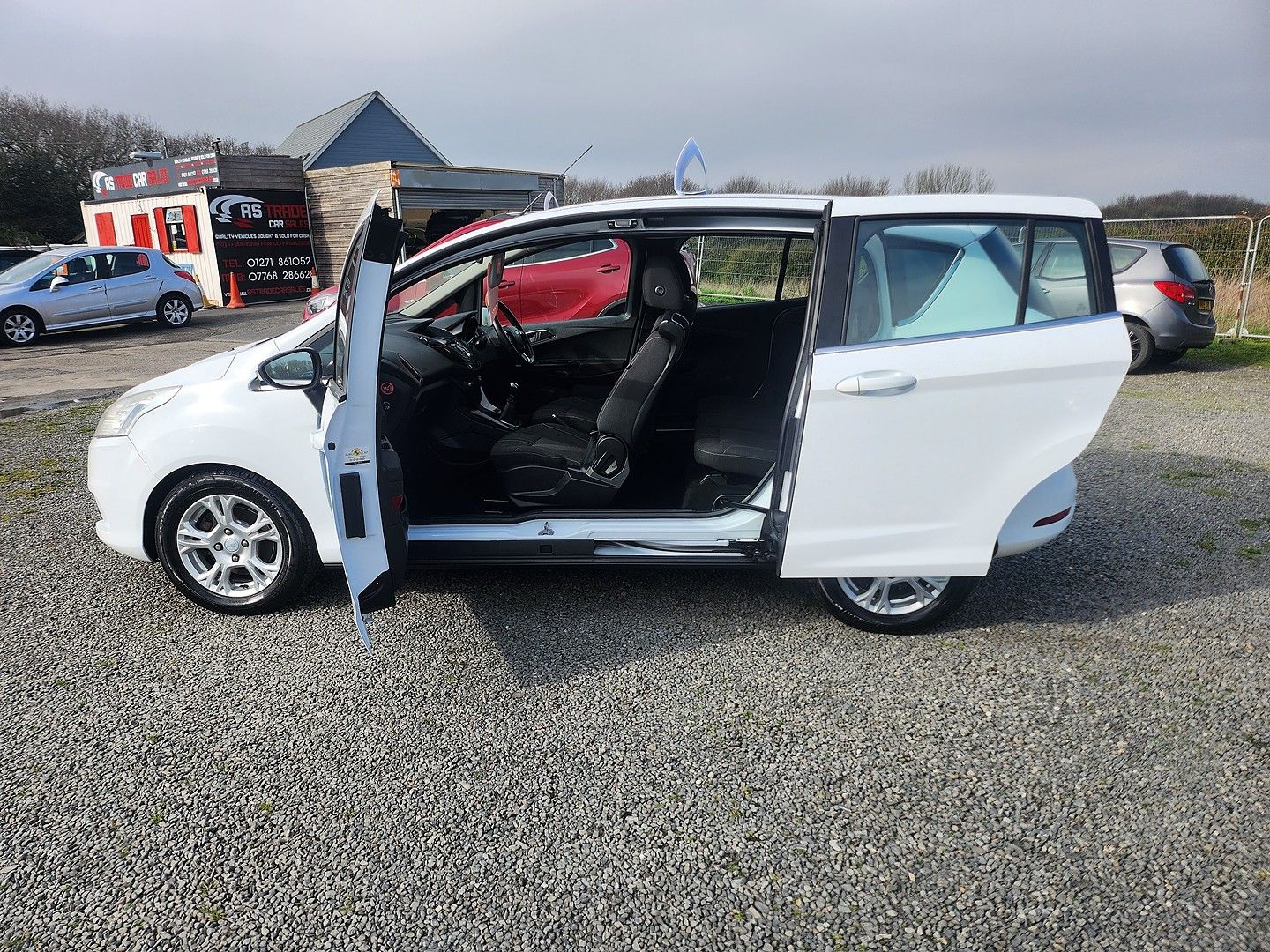

Front hinged drivers door, front hinged front passenger door, sliding rear door on drivers side, sliding rear door on passenger side
Electric windows

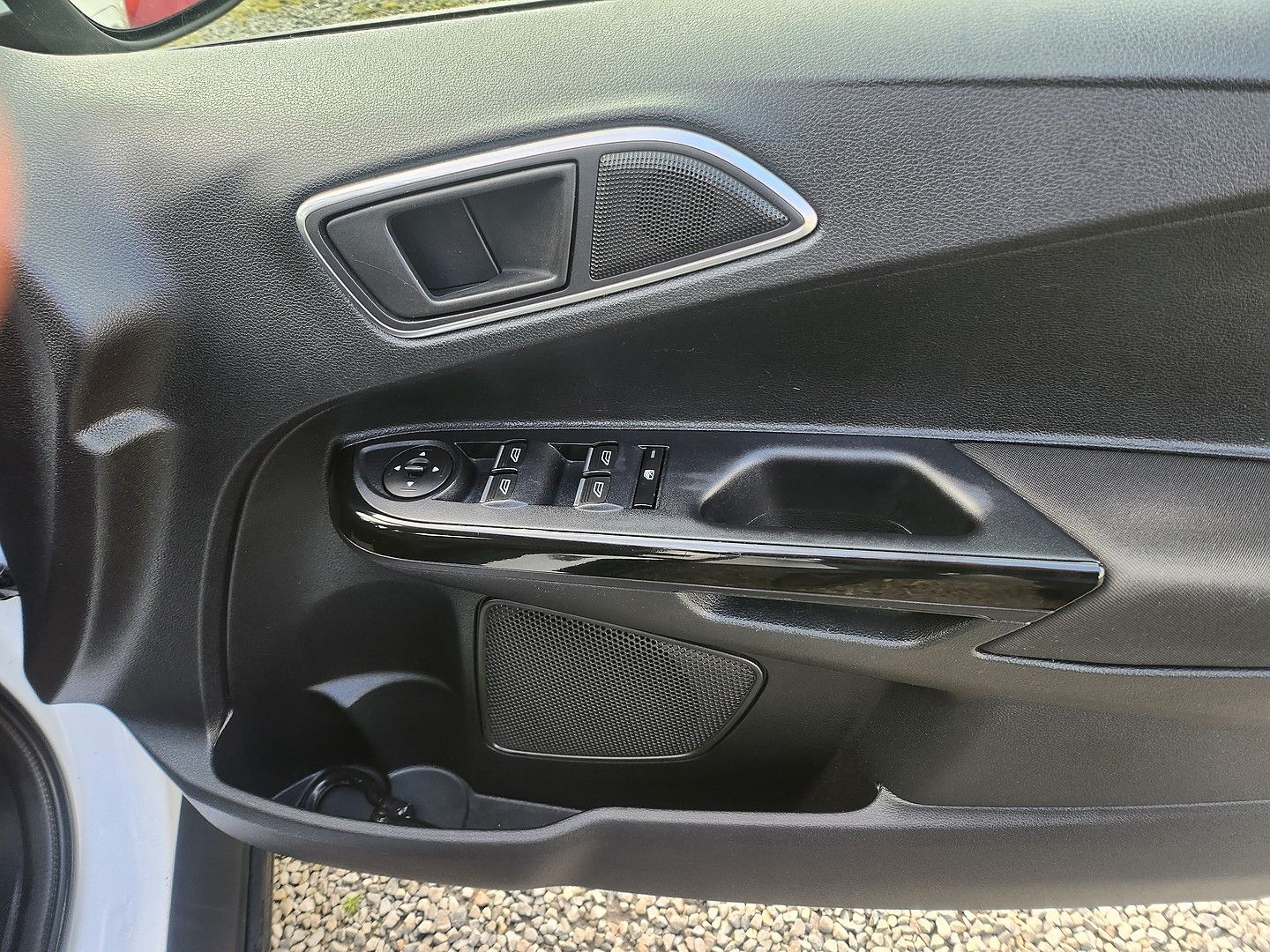

Front and rear electric windows with one-touch on two windows
External temperature
External temperature

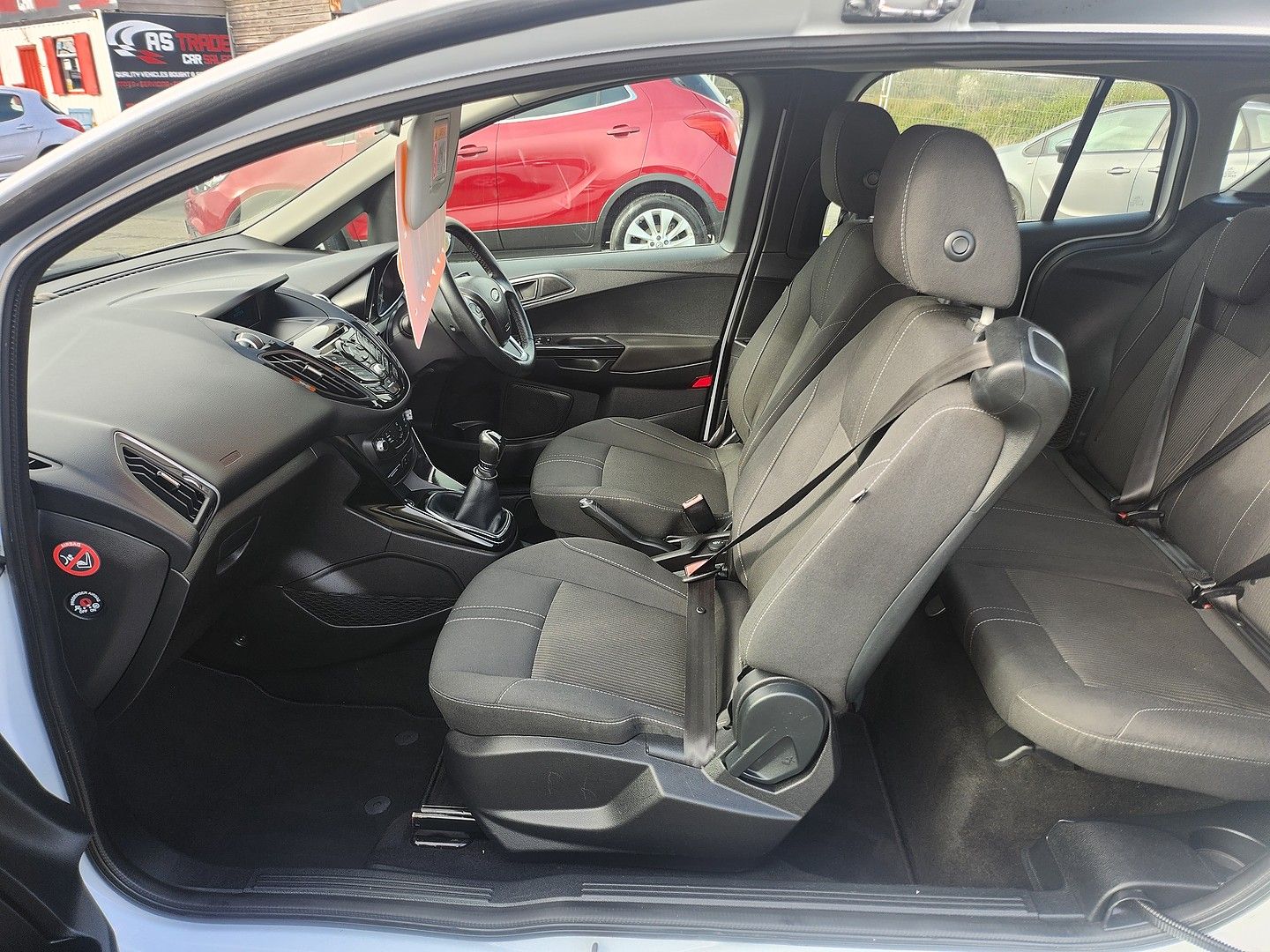

Front seat

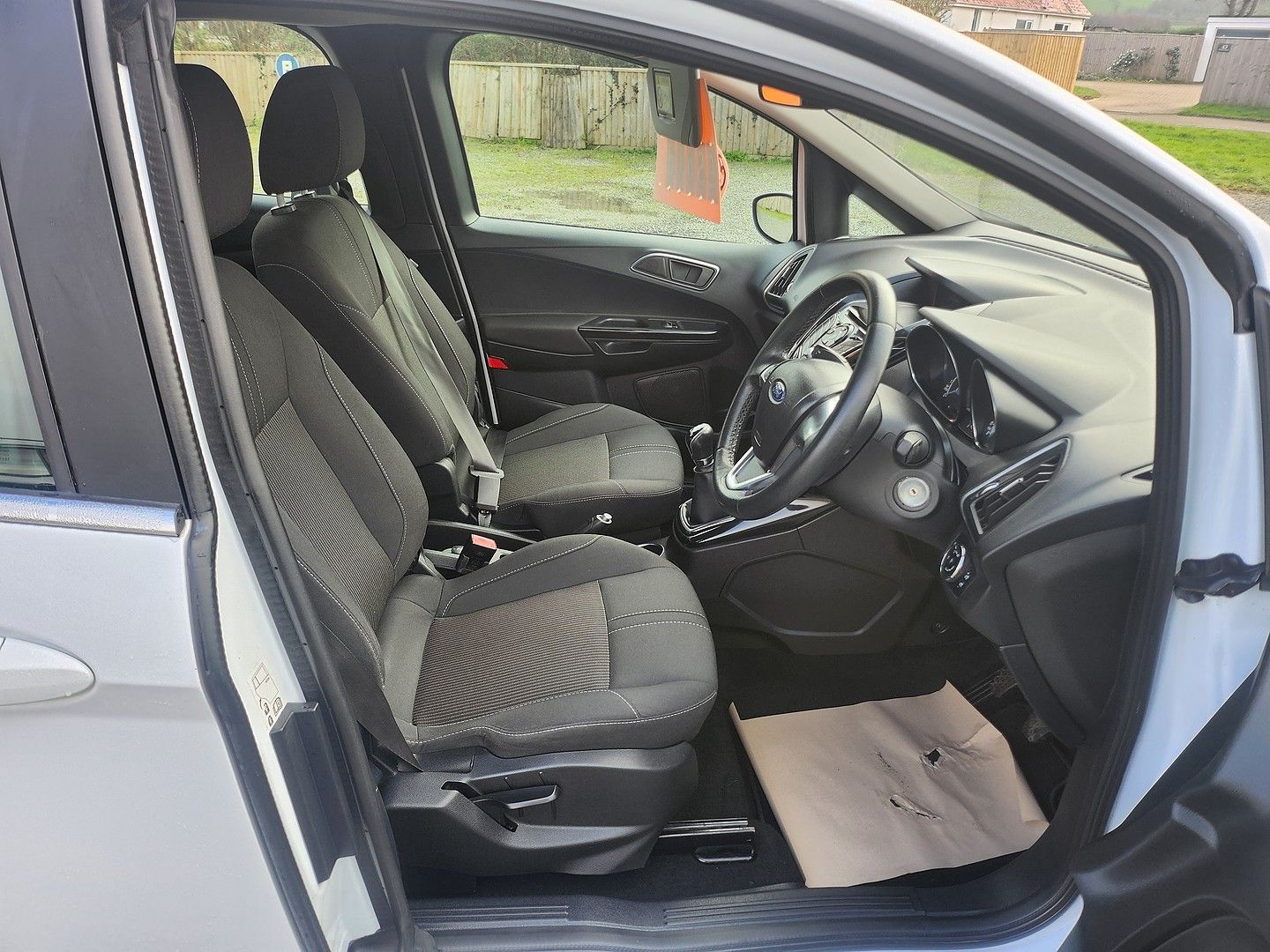

Driver seat: individual type, passenger seat: individual type, folding ; seat folds to table
Instrument cluster

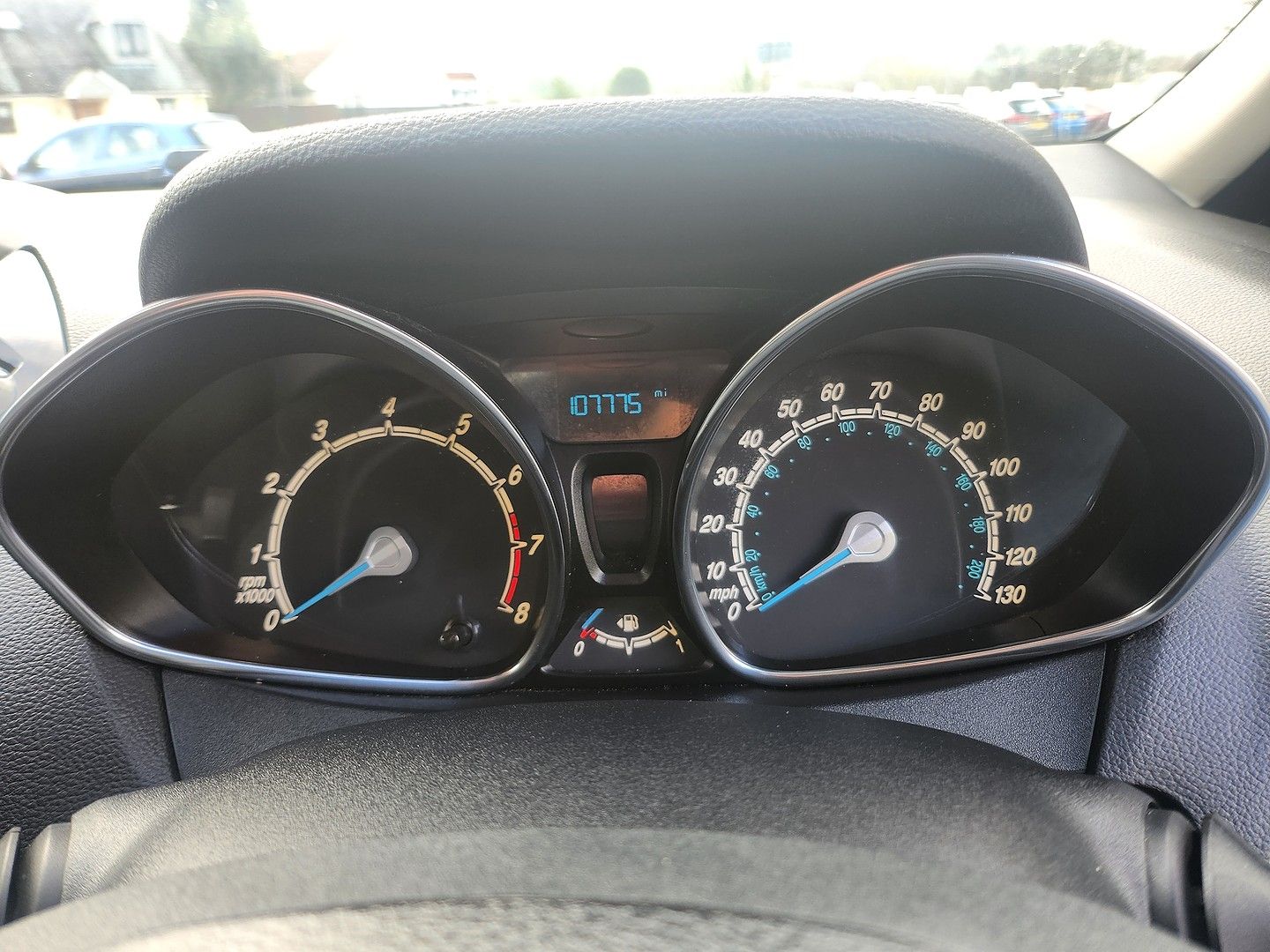

Analogue & digital dashboard
Instrument panel
Analogue & digital dashboard
Load area light
Load area light
Load restraint
Load restraint
Luxury trim

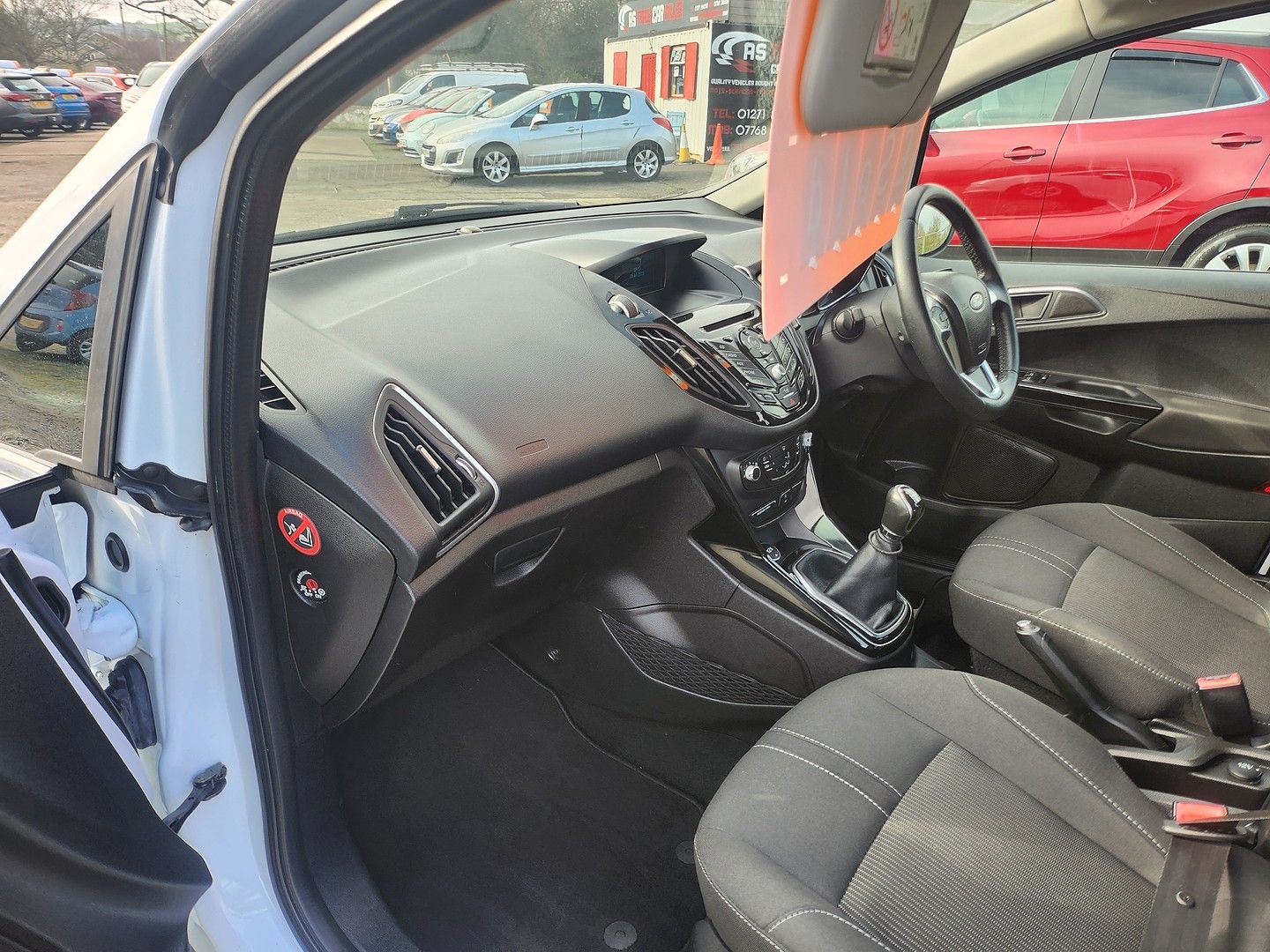

Piano black trim on dashboard, piano black trim on centre console, leather gearknob and leather trim on handbrake
Reading lights
Front reading lights
Rear door

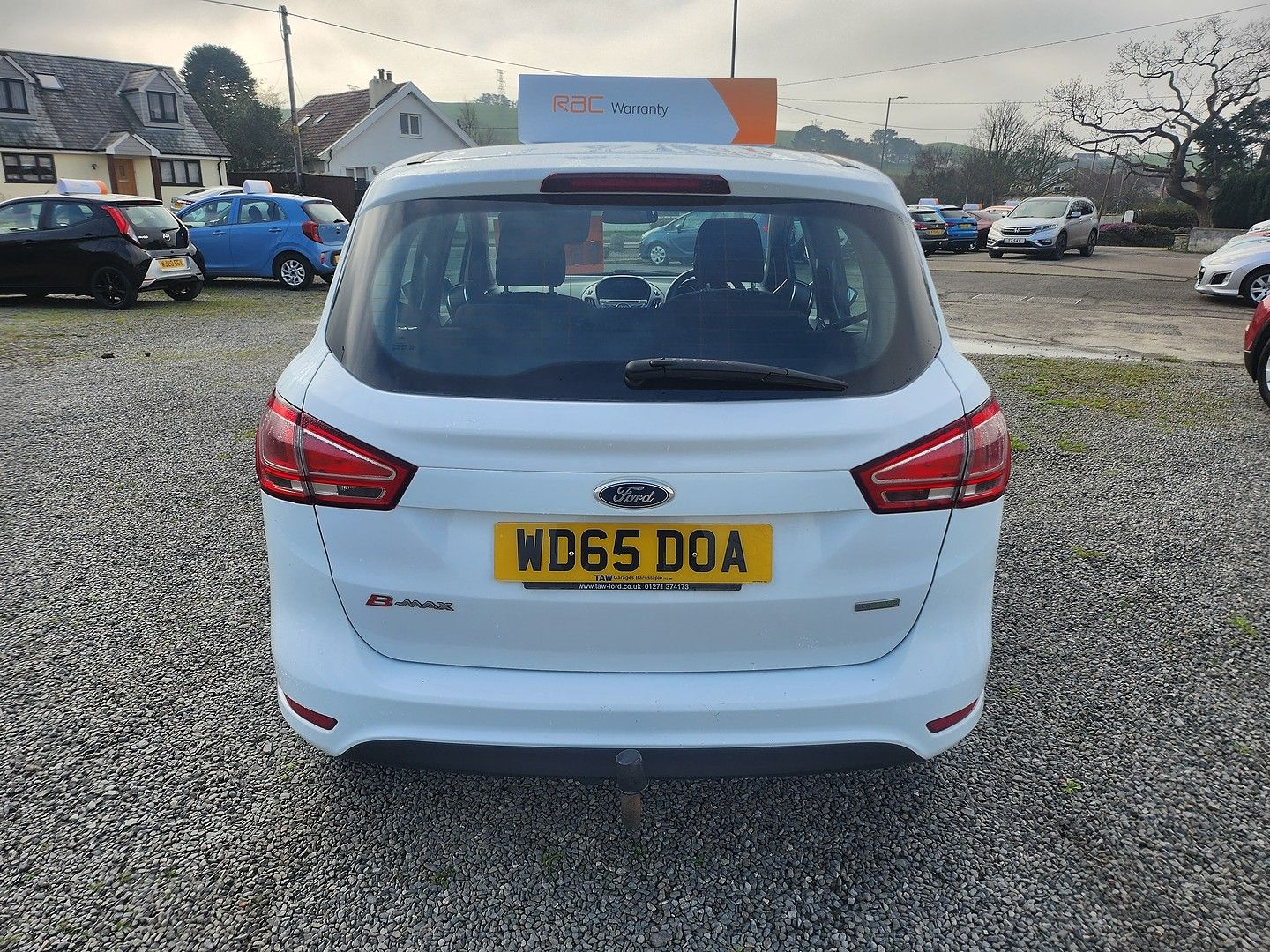

Lifting gate rear door
Rear seats
Asymmetrically folding rear seats: bench type with space for three people; folds flat to floor with zero electric adjustments
Rear view mirror
Rear view mirror
Rear view mirror/camera
Rear view mirror
Remote audio controls
Steering wheel mounted remote audio controls
Remote boot/hatch/rear door release
Remote controlled remote boot/hatch/rear door release
Seat upholstery
Seat upholstery: cloth and cloth
Seating
Five seats configured 2+3
Smart card / smart key
Manual smart card/key includes vehicle dynamics
Speakers
Six speakers
Start/Stop
Engine start/stop
Steering wheel

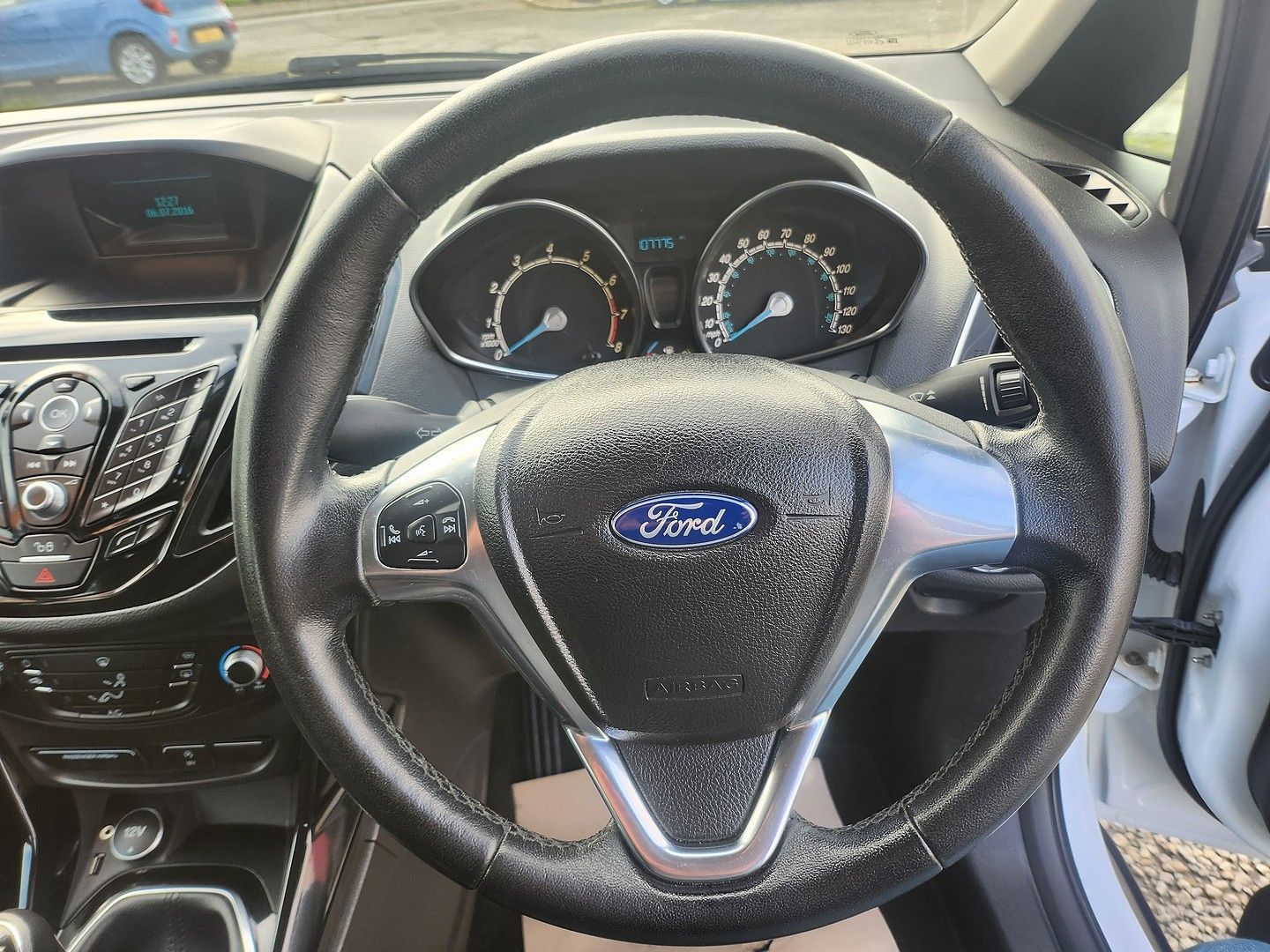

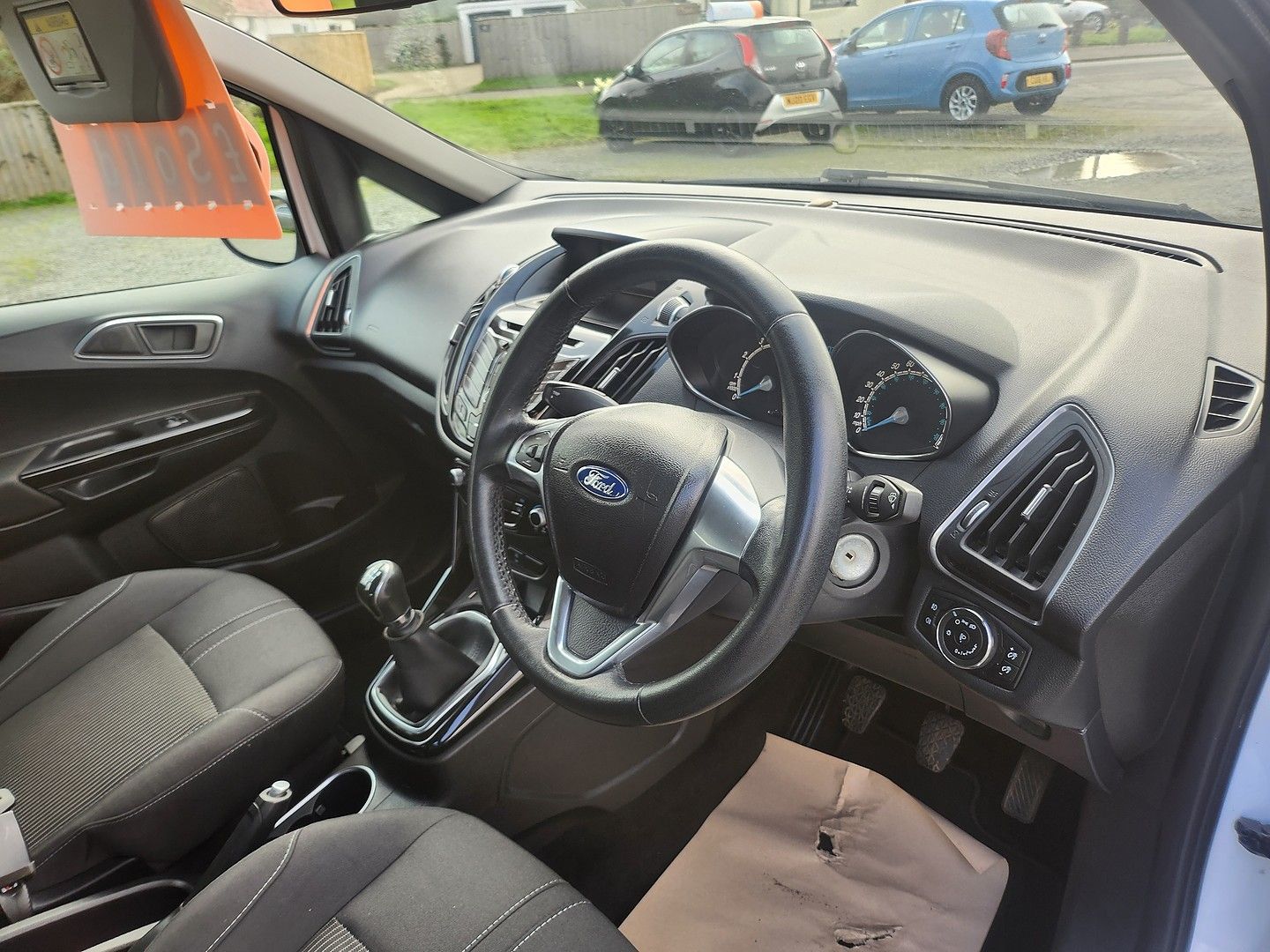

Alloy & leather multi-function steering wheel with tilt adjustment and telescopic adjustment
Storage box
Fixed storage box in the boot
Tachometer
Tachometer
Telematics
Telematics Via own phone with advanced automatic collision notification , requires 0.00 , includes 99 months subscription
Vanity mirror
Driver and passenger vanity mirror
Ventilation system
Ventilation system with air filter
Voice activating system
Voice activating system includes audio player and includes phone

Others

Airbags
Seven airbags
Apps control
Apps control
Body style

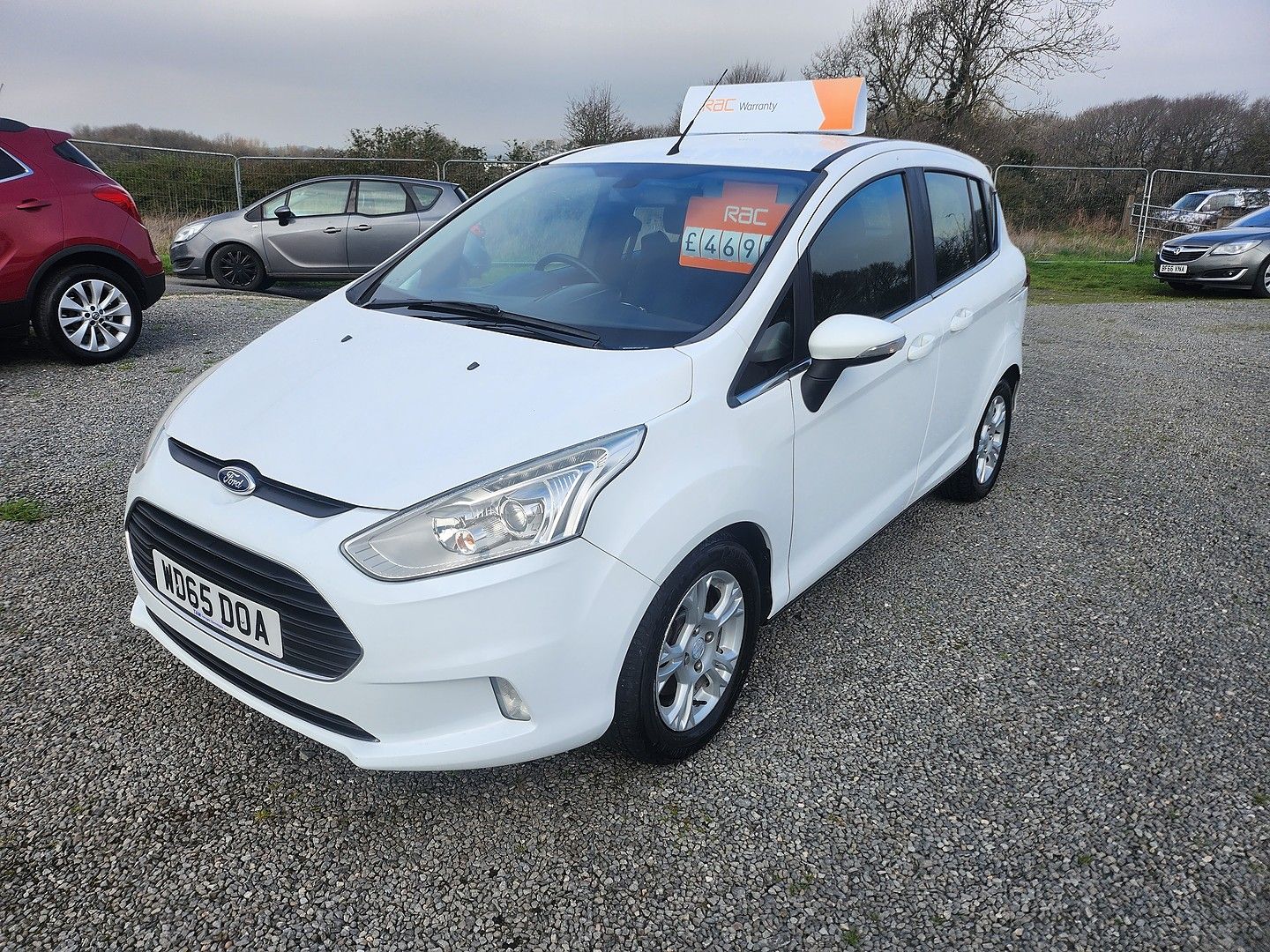

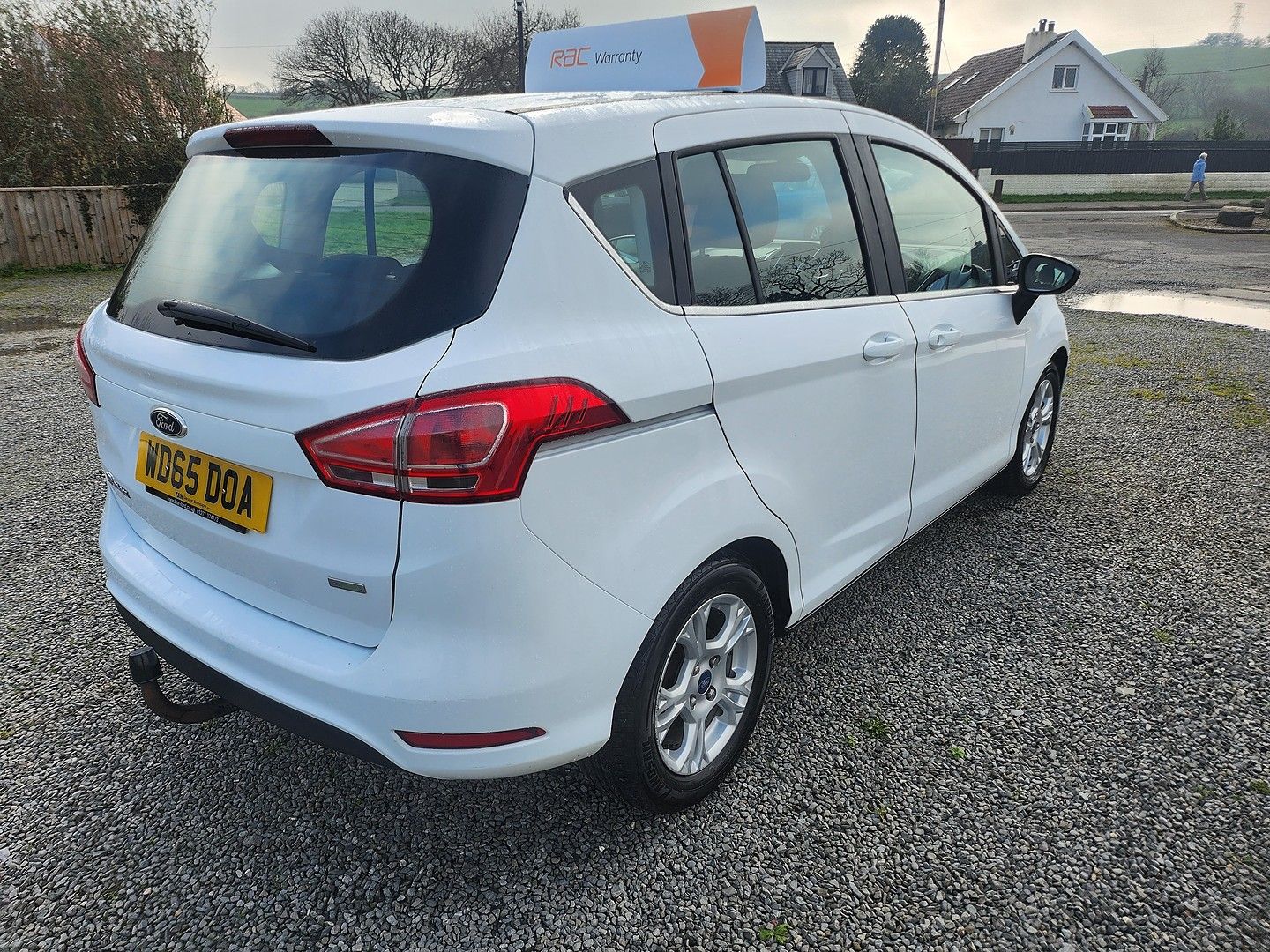

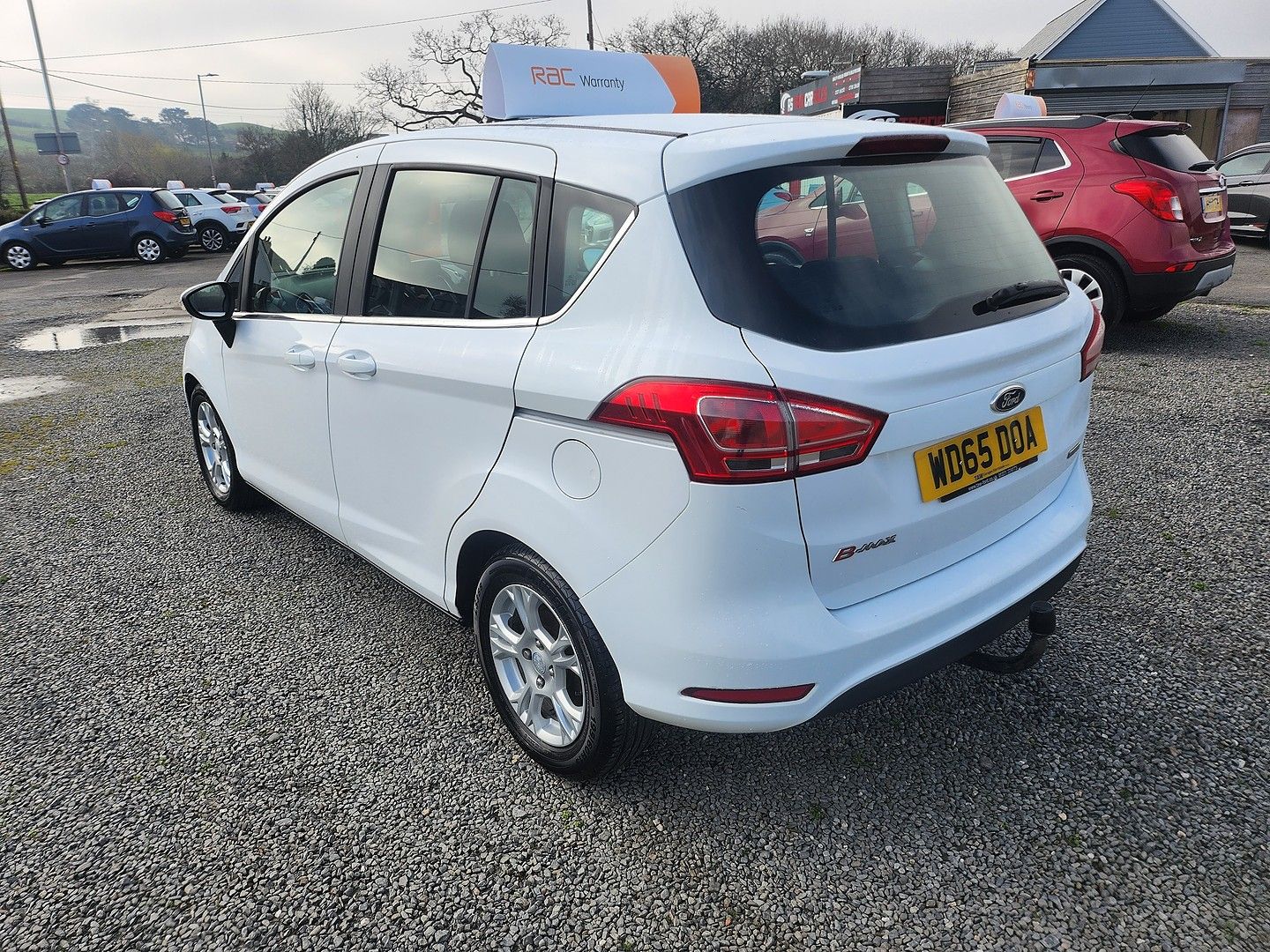

Five door hatchback ; Platform code: B2, Right hand drive
Cargo area cover/rear parcel shelf
Rigid cargo area cover/rear parcel shelf
Charges
Charges: VAT [20%] = 2,669.17, VED (Band C) = 30.00, FRF = 55.00, Showroom Tax = 0.00, GB OTR = 25.00
Data completeness
Data completeness: up to date pricing data, up to date data for key leasing items, specifications data from official documentation, up to date colour & trim data, up to date option pricing data, up to date option content data and up to date incentives dat
Date introduced
Date introduced: Model introduced 01 Apr 2012 and Version introduced 26 Mar 2013
Delivery charges
Standard delivery charges: 0.00, 0.00 (excluding VAT) fuel included 0 litres
Global segment
Global segment
Insurance
Insurance: 9E-T1
Regional segment
Regional segment
Seat belt warning
Seat belt warning on two seats
Text to speech / speech to text
Text to speech / speech to text
Trim
Zetec trim level - JATO classification: M1
Warranty anti-corrosion
Anticorrosion warranty: 144 months, Unlimited miles, Unlimited km
Warranty paint
Paint warranty: 12 months, Unlimited miles, Unlimited km
Warranty powertrain - OEM
Manufacturers powertrain warranty: 36 months, 96,560 km, 60,000 miles
Warranty powertrain - Total
Powertrain warranty: 36 months, 60,000 miles, 96,560 km
Warranty roadside assistance
Road-side assistance warranty: 12 months, Unlimited miles, Unlimited km
Warranty whole vehicle - OEM
Manufacturers whole vehicle warranty: 36 months, 96,560 km, 60,000 miles
Warranty whole vehicle - Total
Vehicle warranty: 36 months, 60,000 miles, 96,560 km

Safety

ABS
ABS
Automatic hazard lights
Automatic hazard lights
Brake assist system
Brake assist system
Crash test results
Euro NCAP crash test results: Overall: 5.00, Adult occupant: 92.00, Child occupant: 84.00, Pedestrian: 67.00, Safety assist: 71.00, Version tested: Ford B-MAX 1.5 diesel Trend 5dr HA, Date tested: 29 Aug 2012
Disc brakes
Two disc brakes including two ventilated discs
Electronic brake distribution
Electronic brake distribution
Electronic traction control
Electronic traction control
Front airbag
Drivers airbag, passengers airbag with de-activation switch
Front seat belts
Seat belt with pre-tensioners on drivers seat and front passenger seat
Head restraints
Two head restraints on front seats with height adjustment, three head restraints on rear seats with height adjustment
Headlight control
Headlight controlsystems: height adjustment
Headlights
Halogen low beam halogen high beam headlights with ellipsoidal lenses
Isofix preparation
Isofix preparation
Knee airbags
Knee airbags on driver side
Low tyre pressure indicator
Low tyre pressure indicator
Rear seat belts
Seat belt on driver side rear seat, seat belt on passenger side rear seat, 3-point seat belt on central rear seat
Side airbag
Front side airbag
Side curtain airbag
Front and rear side curtain airbags
Stability control
Stability controlsystem

Technical

Compressor
Turbo-charger
Drive
Front-wheel drive
Emission control level
Emissions: EU6 compliant, 114 g/km CO2 (max), 0.60400 g/km carbon monoxide, 0.071 g/km HC, 0.047 g/km NOx and 71 dB noise level
Energy recuperation
Energy recuperation
Engine

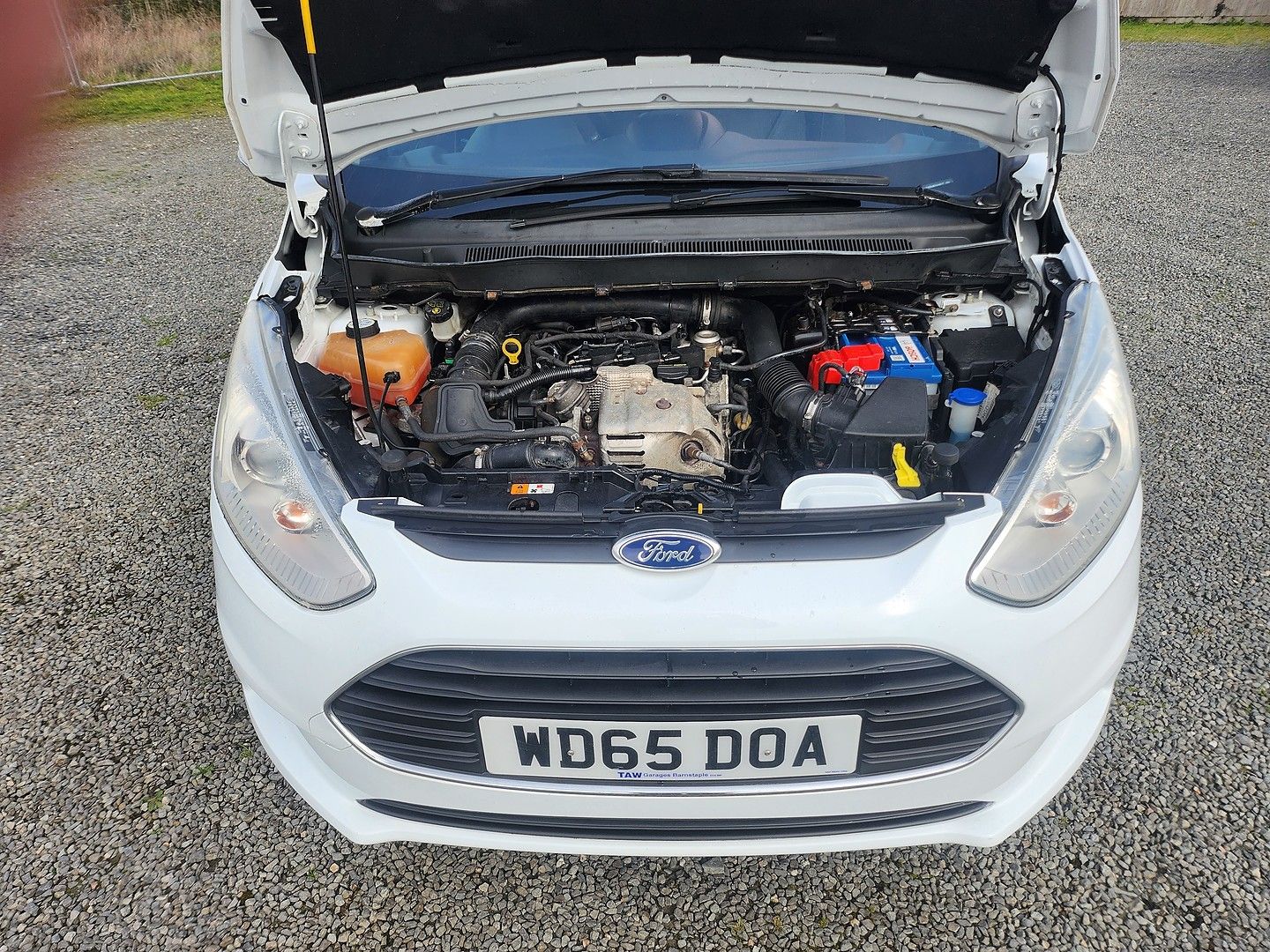

999 cc 1.0 litres in-line 3 engine with 71.9 mm bore, 82.0 mm stroke, 10.0 compression ratio, double overhead cam, variable valve timing/camshaft and four valves per cylinder Engine code: Fox
Fuel
Primary fuel type: unleaded petrol, 95 octane
Fuel consumption
Fuel consumption: 6.0 l/100km (urban), 4.2 l/100km (country/highway), 4.9 l/100km (combined), 39 mpg (urban US), 56 mpg (country/highway US), 48 mpg (combined US), 16.7 km/l (urban), 23.8 km/l (country/highway), 20.4 km/l (combined), 47 mpg (urban UK), 67
Fuel system
Fuel system: direct gasoline injection
Hill holder
Hill holder
Limited slip differential
Front electronic limited slip differential
Main service
Main service required after 20,117 km, 12,500 miles, 12 months
Performance
Performance: maximum speed 117 mph, 189 km/h acceleration 11.2 seconds (0-100 km/h)
Power
Power: (from primary fuel) 92 kW , 125 HP ISO @ 6,000 rpm; , 200 Nm @ 1,400 rpm
Power steering
Power steering: type speed proportional
Powertrain
Powertrain: internal combustion engine
Powertrain type
Powertrain: internal combustion engine
Suspension
Independent strut front suspension with anti-roll bar and coil springs, semi-independent torsion beam rear suspension with coil springs
Traffic light coding
Traffic light coding: efficiency label C
Transmission
Transmission: 5-speed manual featuring gear lever mounted on the floor
