Dimensions

External dimensions
External dimensions: 4,324mm long, 1,765mm wide, 1,440mm high, 140mm ground clearance, 2,690mm wheelbase, 1,535mm front track, 1,569mm rear track, 10,900mm turning circle (wall to wall), 170.2 inches long, 69.5 inches wide, 56.7 inches high, 5.5 inch grou
Fuel tanks
52 litre, 11.4 UK gallon main fuel tank
Internal dimensions
Internal dimensions: front headroom (mm): 1,018, front headroom (inches): 40.1, rear headroom (mm): 972, rear headroom (inches): 38.3, front hip room (mm): 1,436, front hip room (inches): 56.5, rear hip room (mm): 1,417, rear hip room (inches): 55.8, fron
Load compartment capacity

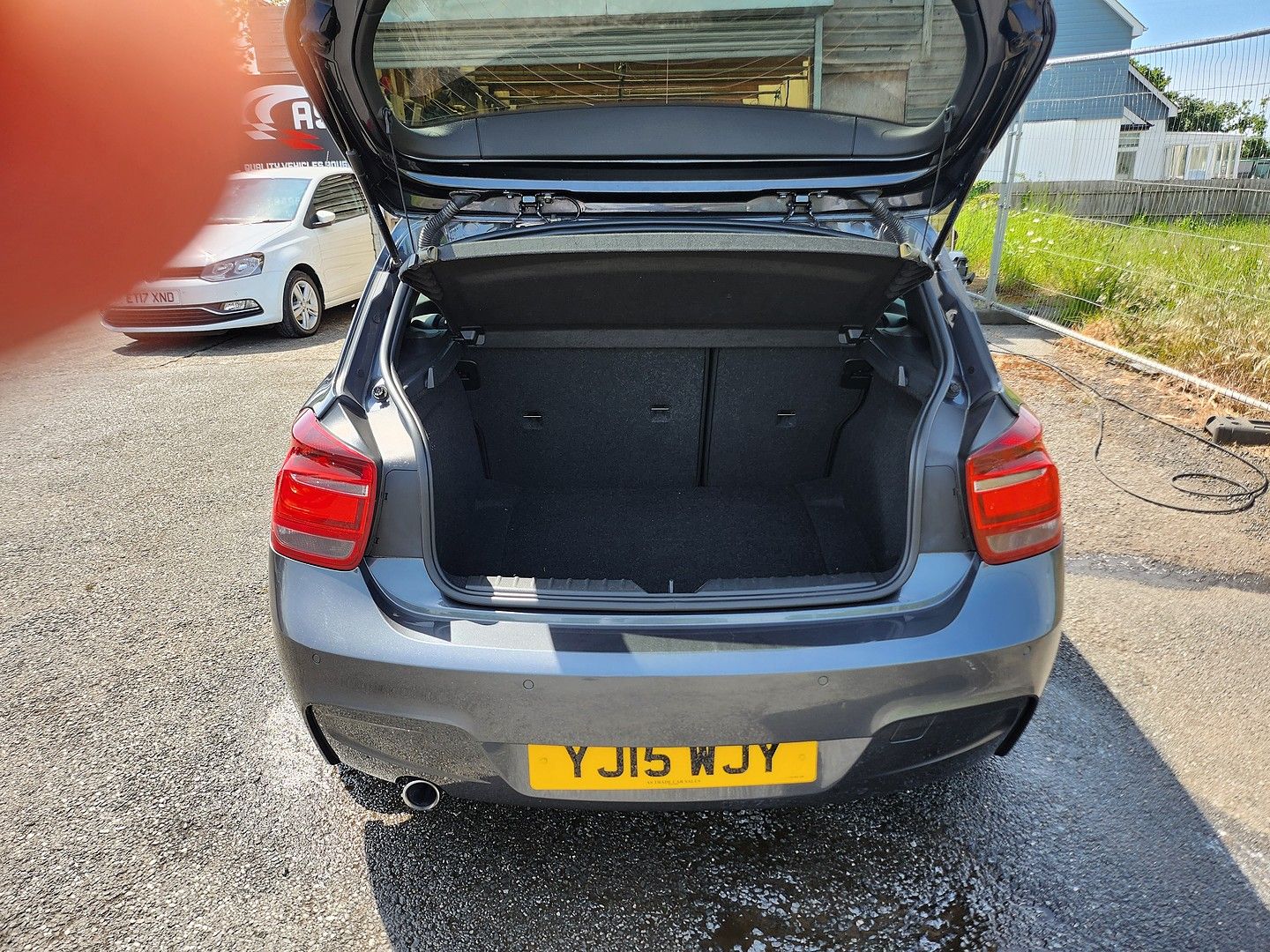

Load compartment capacity: 360 litres with rear seats up filled to lower edge of window, 1,200 litres with rear seats down filled to ceiling, 12.7 cu ft with rear seats up filled to lower edge of window and 42.4 cu ft with rear seats down filled to ceilin
Weights
Weights: Kerb weight (kg): 1,395, Kerb weight (lbs): 3,075, Kerb weight includes driver, Gross vehicle weight rating (kg): 1,850, Gross vehicle weight rating (lbs): 4,079, Gross trailer weight braked (kg): 1,200, Gross trailer weight braked (lbs): 2,646,

Exterior

Aerial
Diversity aerial
Bumpers
Painted front and rear bumpers
Day time running lights
Day time running lights
Door mirrors/cameras
Body colour power door mirrors ; heated with integrated indicator lights
Front fog lights
Front fog lights
Heated washers
Heated washers
LED lights
LED brake lights and side indicator lights
Non-corrosive body
Galvanised body
Paint
Gloss paint
Rear windscreen
Rear windscreen with intermittent wiper
Tinted glass
Tinted glass
Tyres
Front tyres: run flat, low rolling resistance, 18 inch diameter, 225mm wide, 40% profile, W rated (official data), rear tyres: run flat, low rolling resistance, 18 inch diameter, 245mm wide, 35% profile, W rated (official data)
Wheels

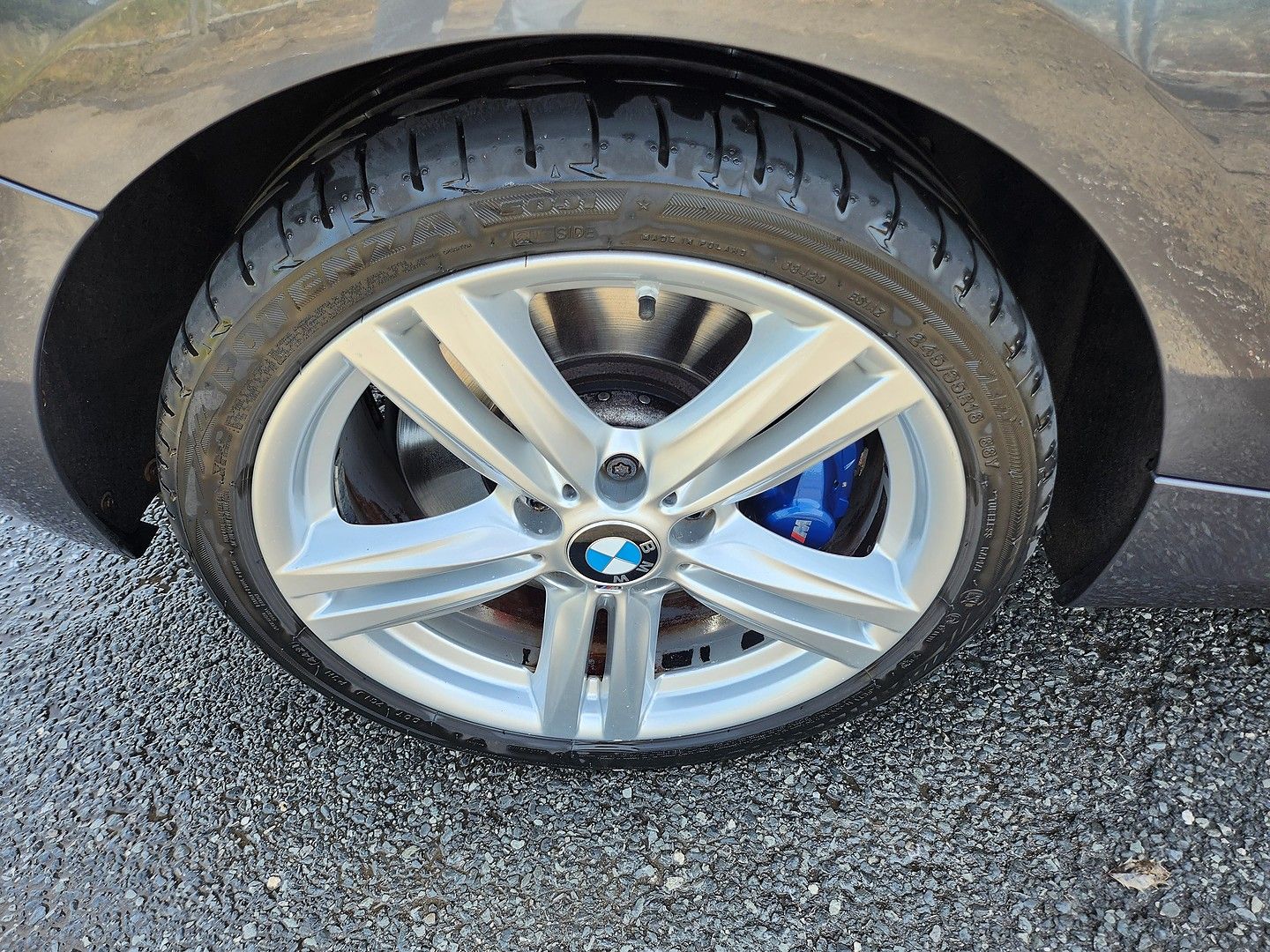

Front wheels: 18 inch alloy rims ; width: 7.5 inches, rear wheels: 18 inch alloy rims ; width: 8.5 inches
Windscreen wipers
Rain sensing windscreen wipers

Interior

12v power outlet
12v power outlet located in front section
Air conditioning

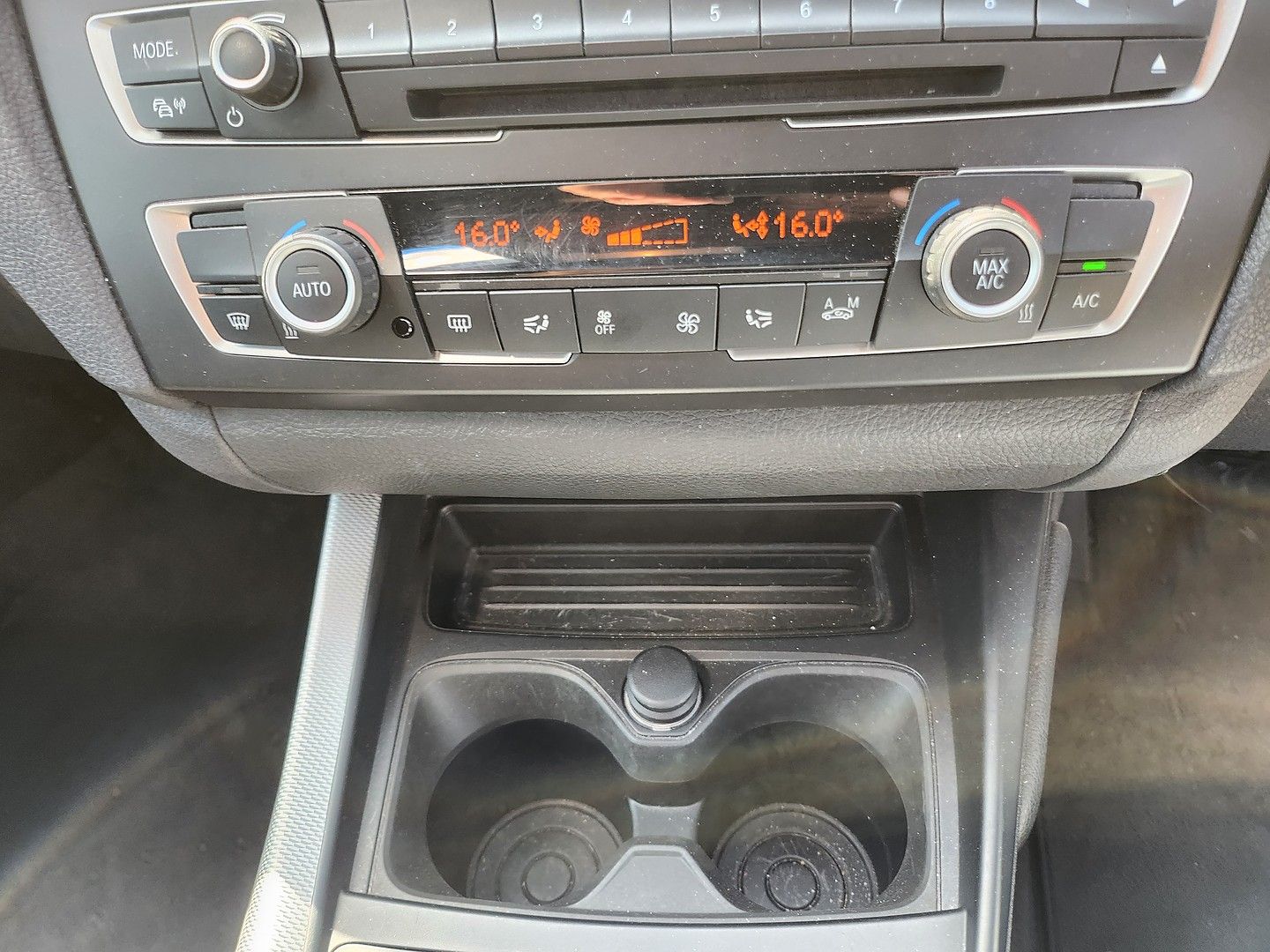

Automatic air conditioning with two climate control zones
Ashtray
Ashtray located in the front and rear
Audio player
Audio system with CD player that reads MP3 CDs ; radio receives AM/FM, digital and RDS
Bluetooth
Bluetooth includes phone connection and music streaming
Central door locking
Central door locking: Operated by remote Includes windows and dead bolt
Computer
Computer includes average speed, average fuel consumption, instantaneous fuel consumption and range for remaining fuel
Connection to ext.entertainment devices
Connections for USB (front) and auxiliary audio devices (front)
Console

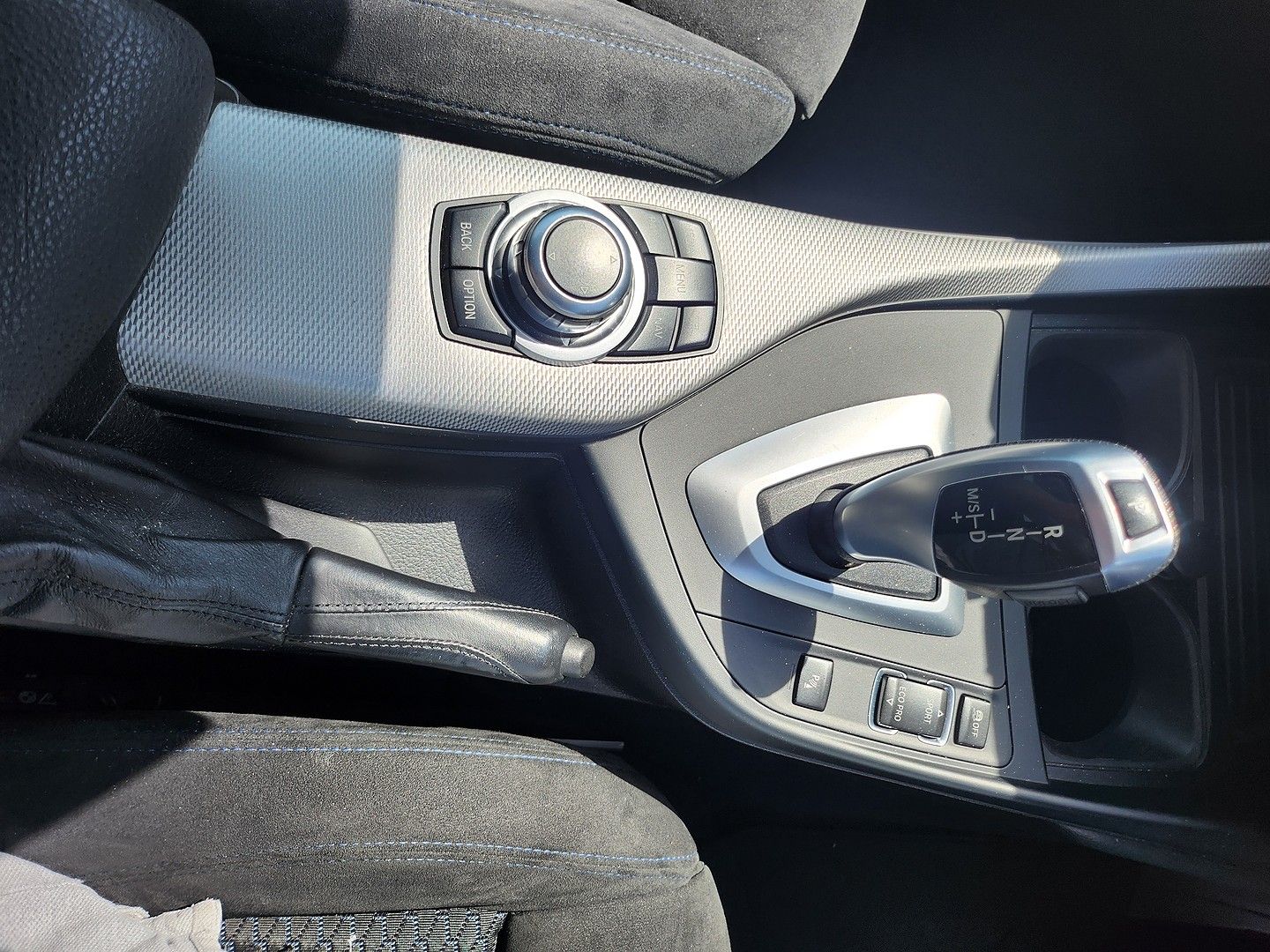

Floor console
Cup holders
Cup holders for front seats
Display screen

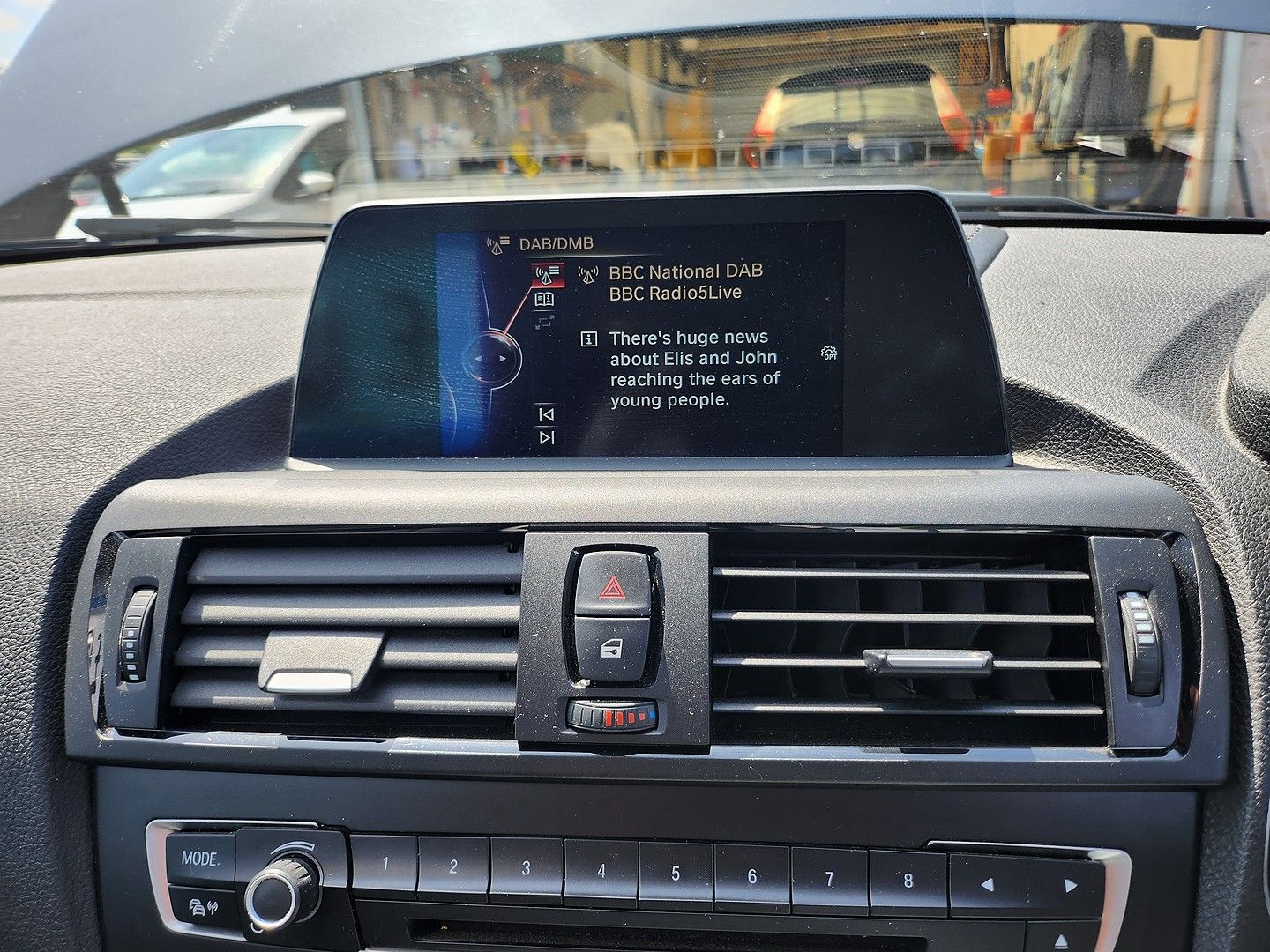

Single 6.5 inch multi-function display screen(s)
Doors
Front hinged drivers door and front passenger door
Driver modes
Selectable driving modes that affect steering, traction control, stability control and engine mapping
Electric windows
Front and rear electric windows with one-touch on two windows
External temperature
External temperature
Floor mats
Textile floor mats
Front seat

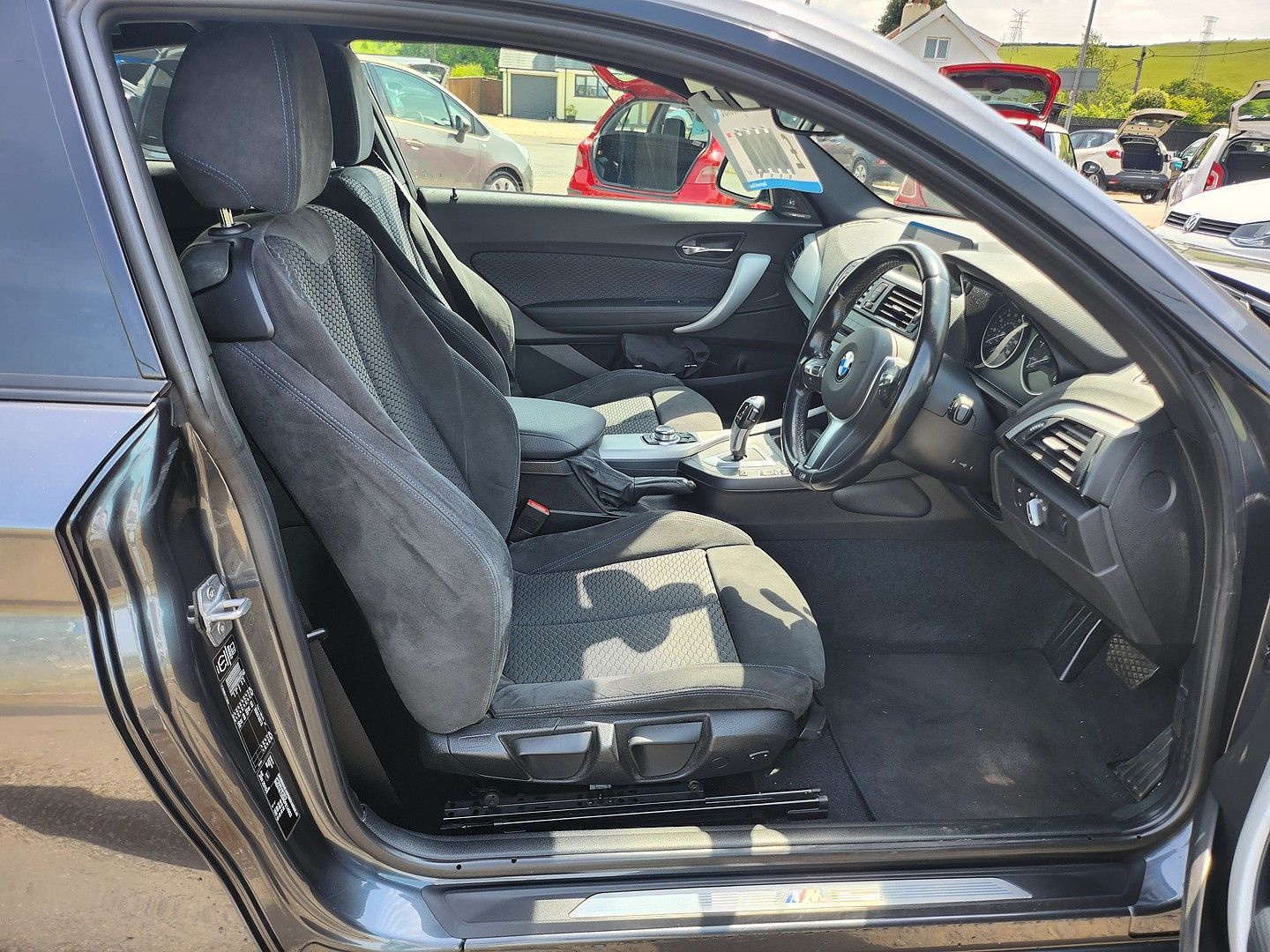

Driver and passenger seat: sports type, electrically adjustable, one electrical adjustment
Front seat centre armrest
Centre armrest between front seats
Instrument cluster

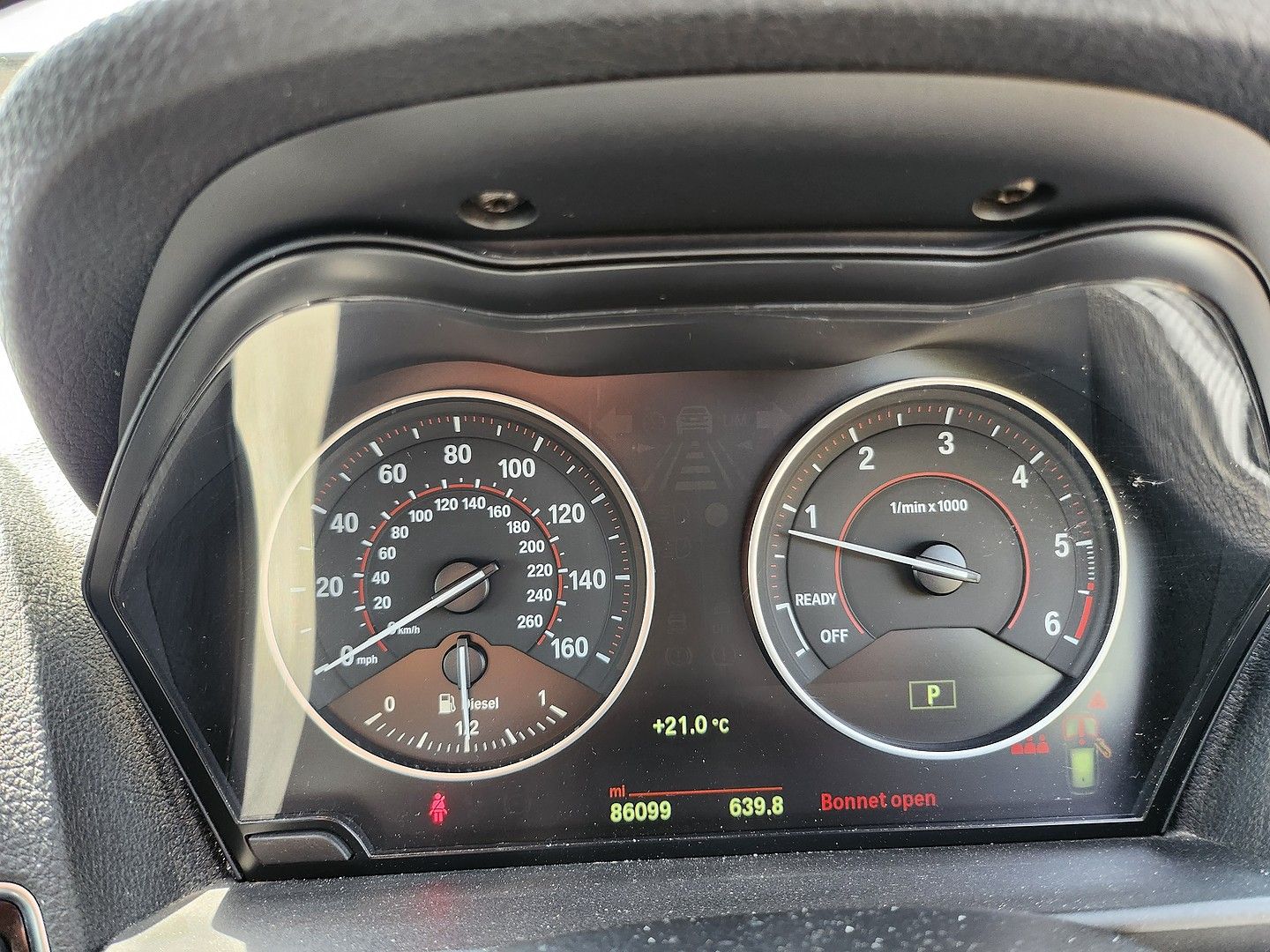

Analogue & digital dashboard
Instrument panel
Analogue & digital dashboard
Load area light
Load area light
Load restraint
Load restraint
Luxury trim

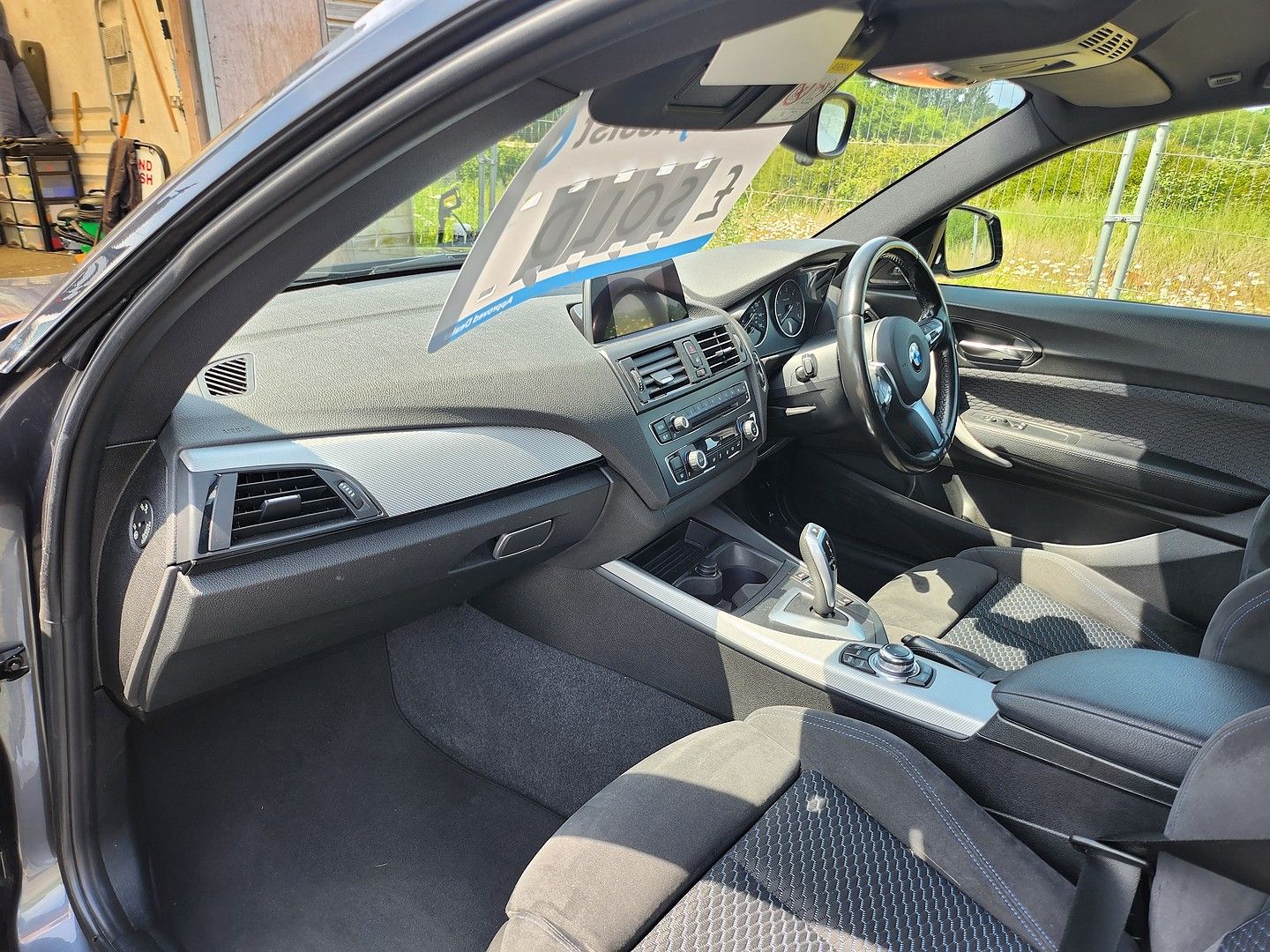

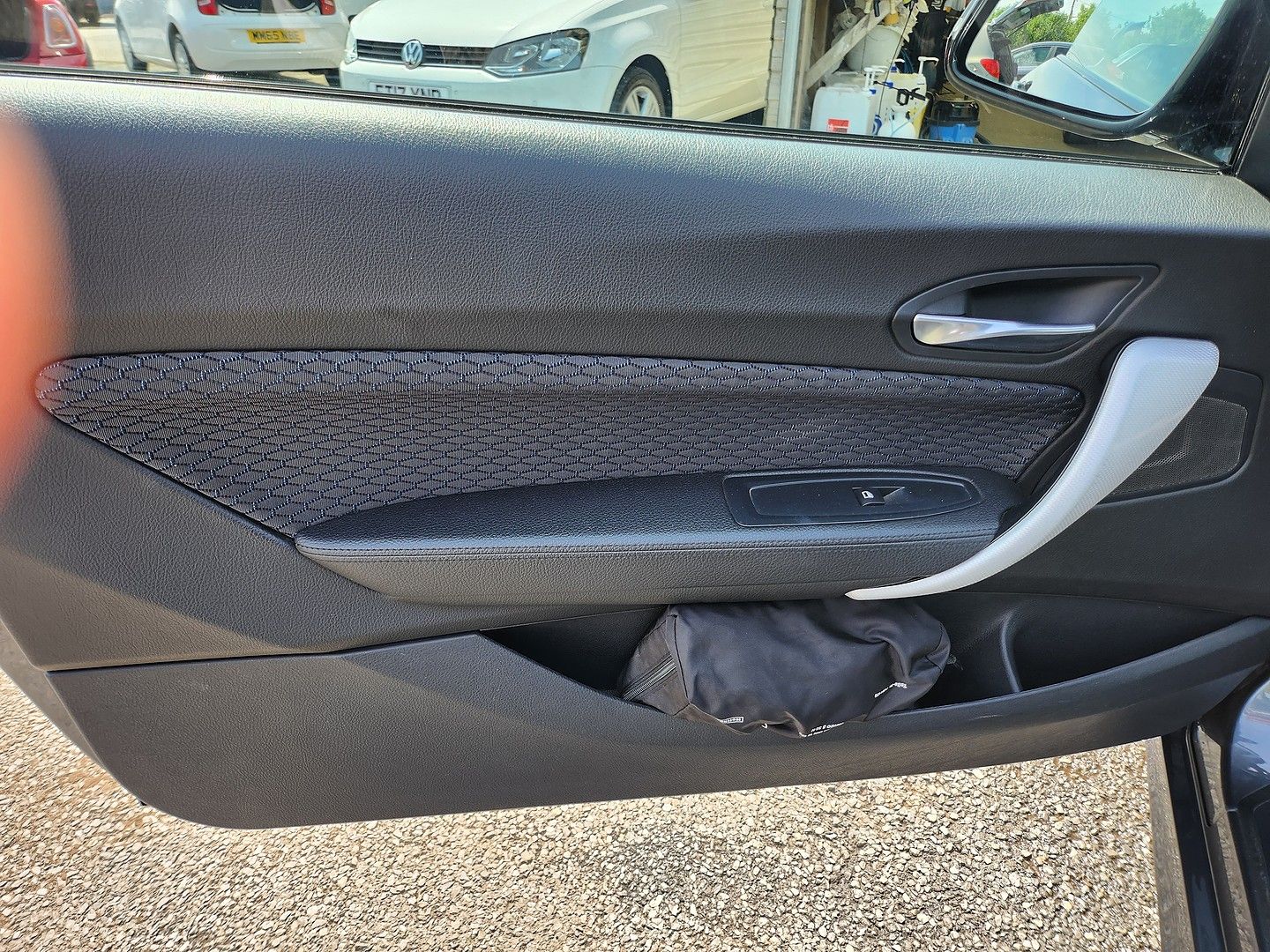

Alloy trim on dashboard, alloy trim on doors, alloy trim on centre console, alloy & leather gearknob and leather trim on handbrake
Multi-function display screen
Single 6.5 inch multi-function display screen(s)
Reading lights
Front and rear reading lights
Rear door

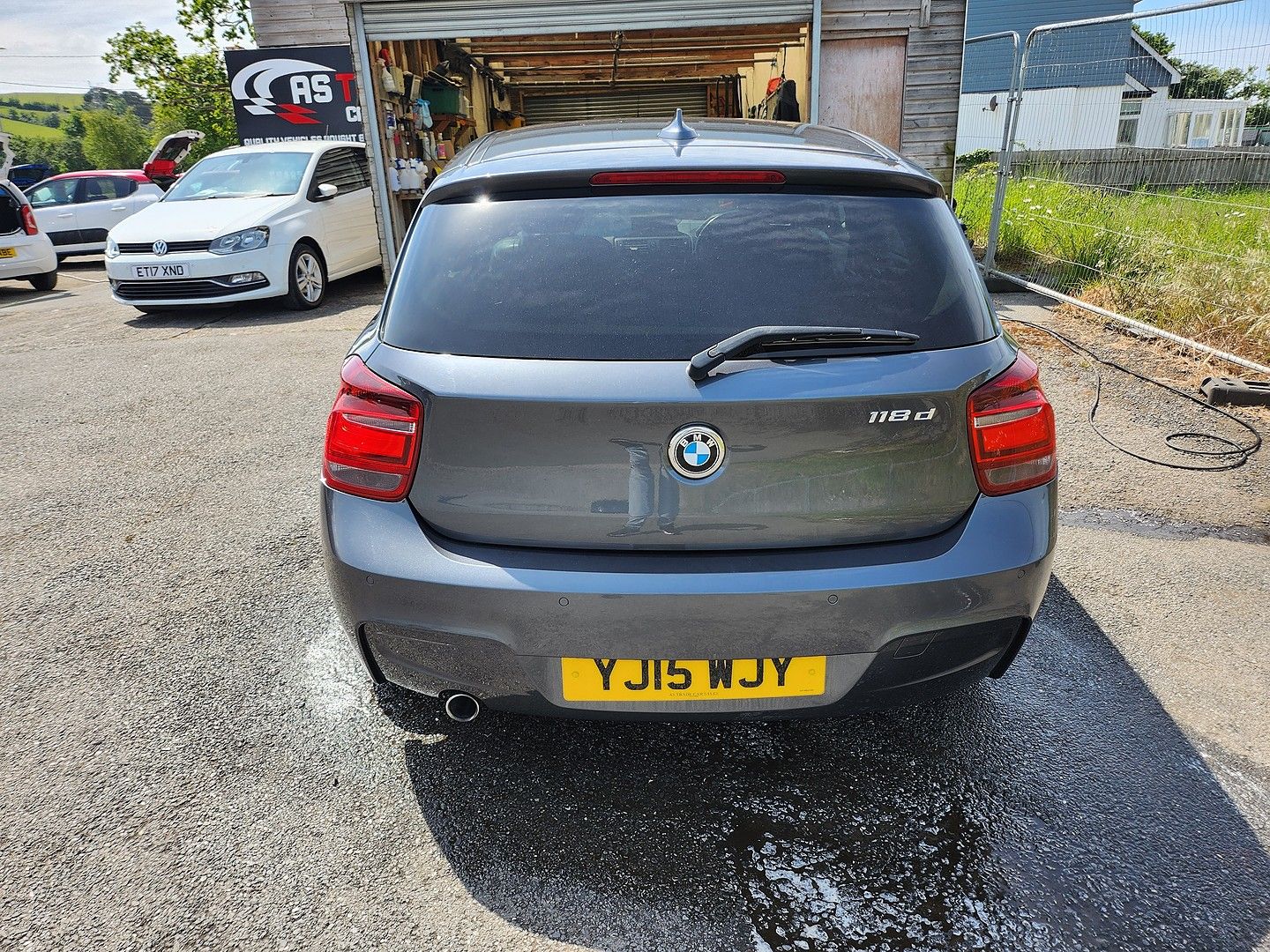

Lifting gate rear door
Rear seats
Asymmetrically folding rear seats: bench type with space for three people; folds flat to floor with zero electric adjustments
Rear view mirror
Rear view mirror
Rear view mirror/camera
Rear view mirror
Remote audio controls
Steering wheel mounted remote audio controls
Remote boot/hatch/rear door release
Remote controlled remote boot/hatch/rear door release

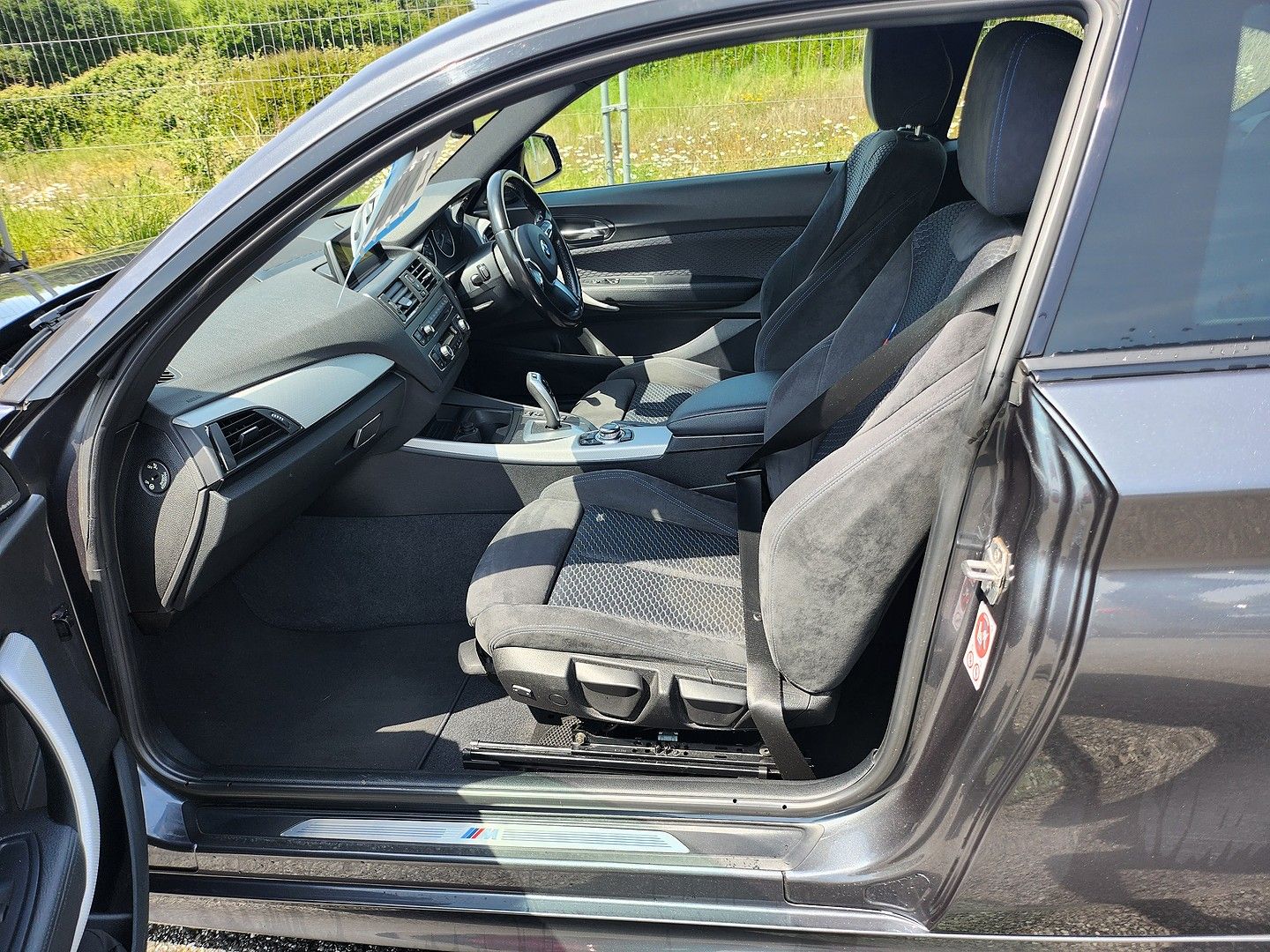

Seat upholstery
Seat upholstery: cloth and synthetic suede
Seating
Five seats configured 2+3
Secondary ventilation controls
Secondary ventilation controls with digital display for front passenger
Service interval indicator
Service interval indicator
Smart card / smart key
Automatic smart card/key includes keyless start
Speakers
Six speakers
Start/Stop
Engine start/stop

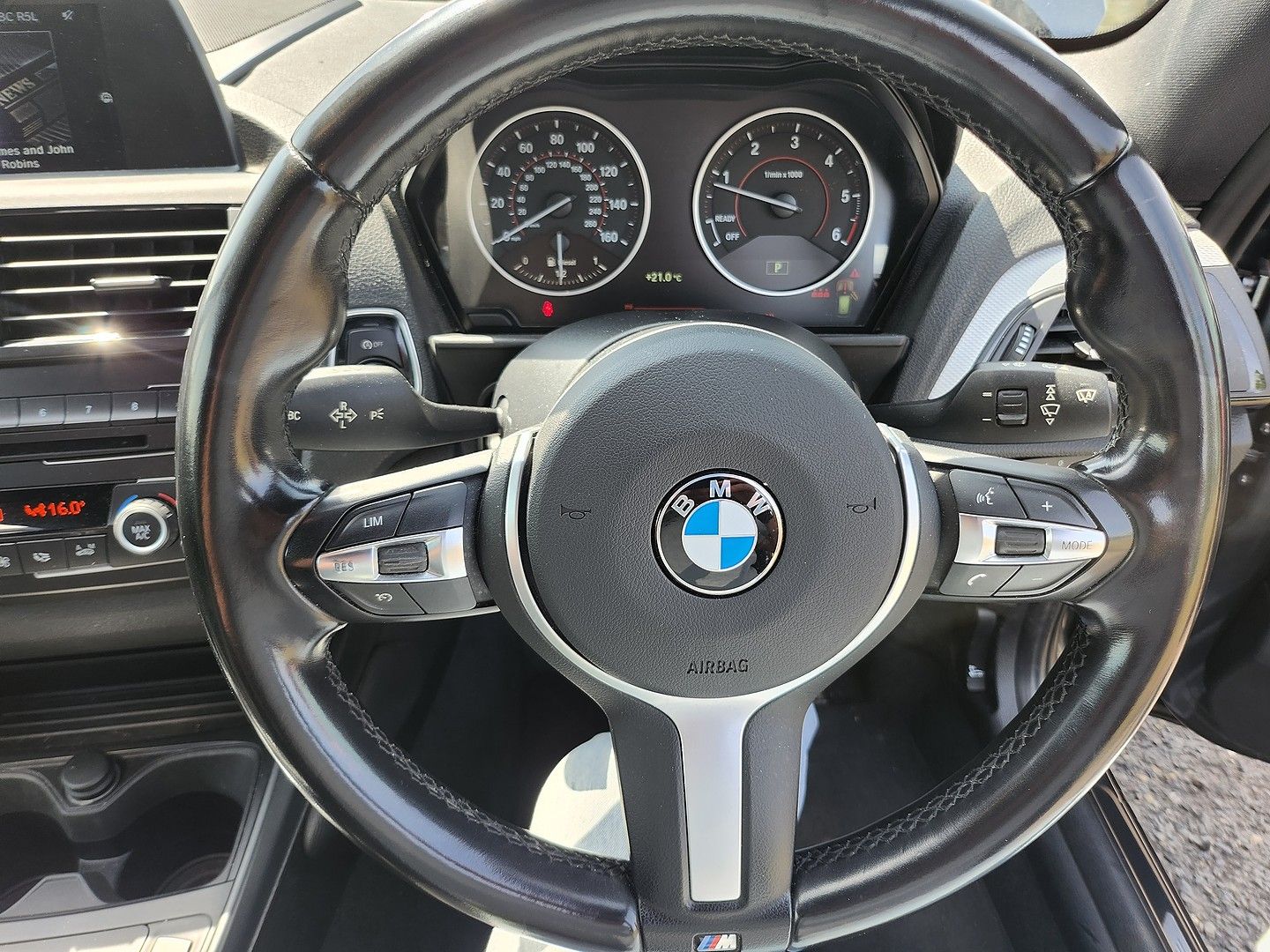

Steering wheel

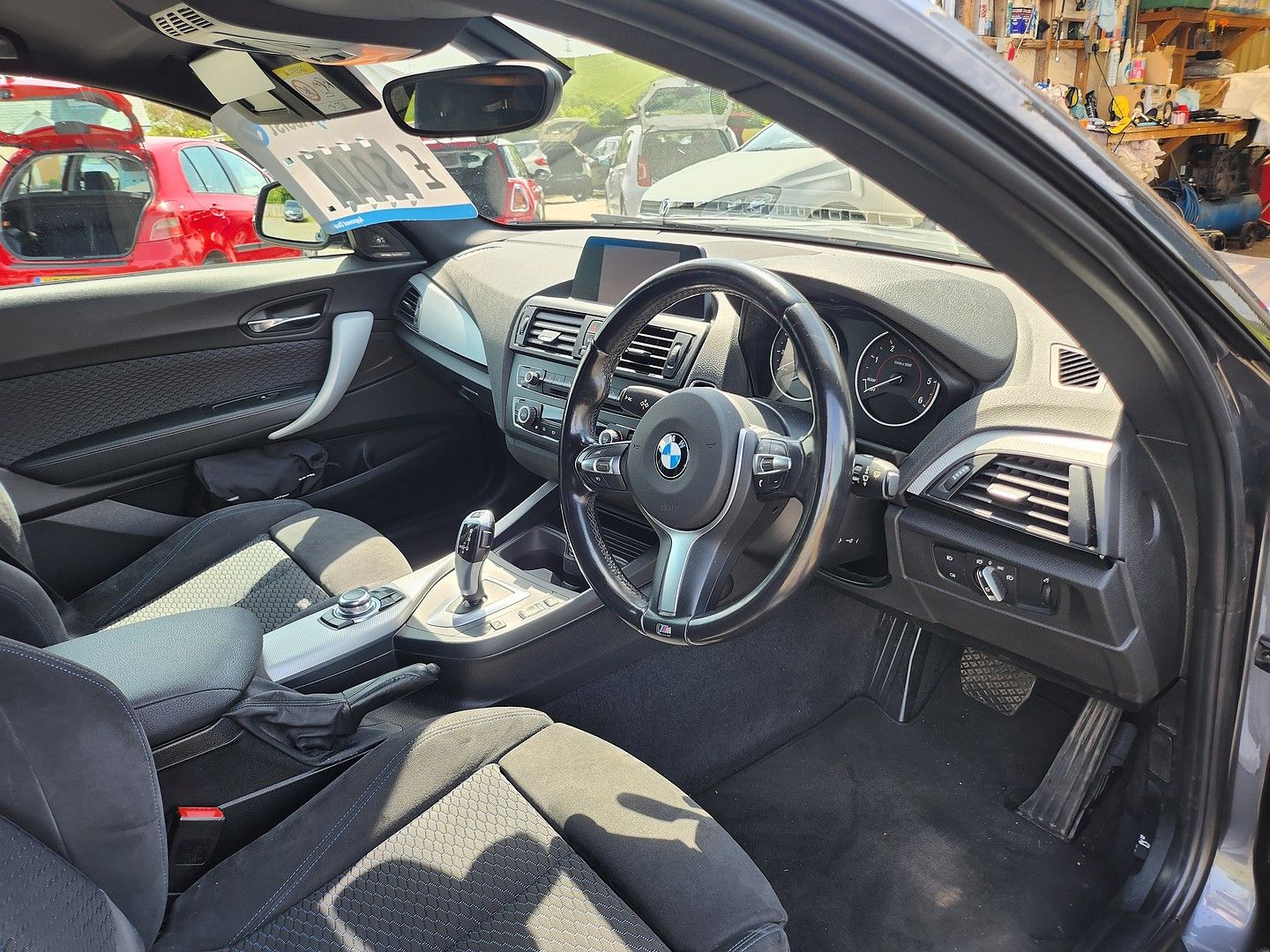

Alloy & leather multi-function steering wheel with tilt adjustment and telescopic adjustment
Tachometer
Tachometer
Telematics
Telematics with advanced automatic collision notification requires 0.00 includes 99 months subscription
Vanity mirror
Illuminated driver and passenger vanity mirror
Vehicle start button
Vehicle start button
Ventilation system
Ventilation system with digital display, air filter and active carbon filter

Others

Airbags
Six airbags
Body style

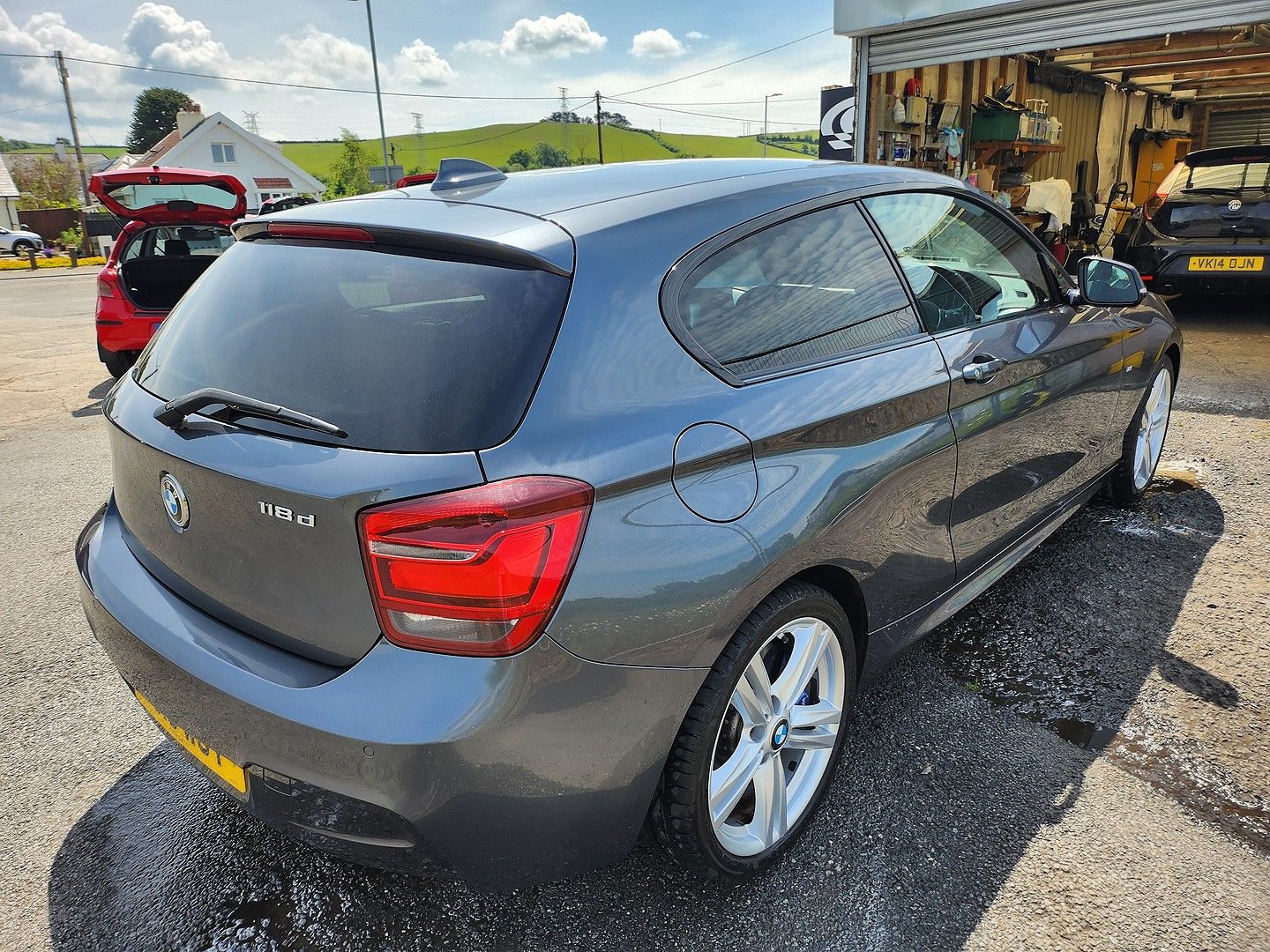

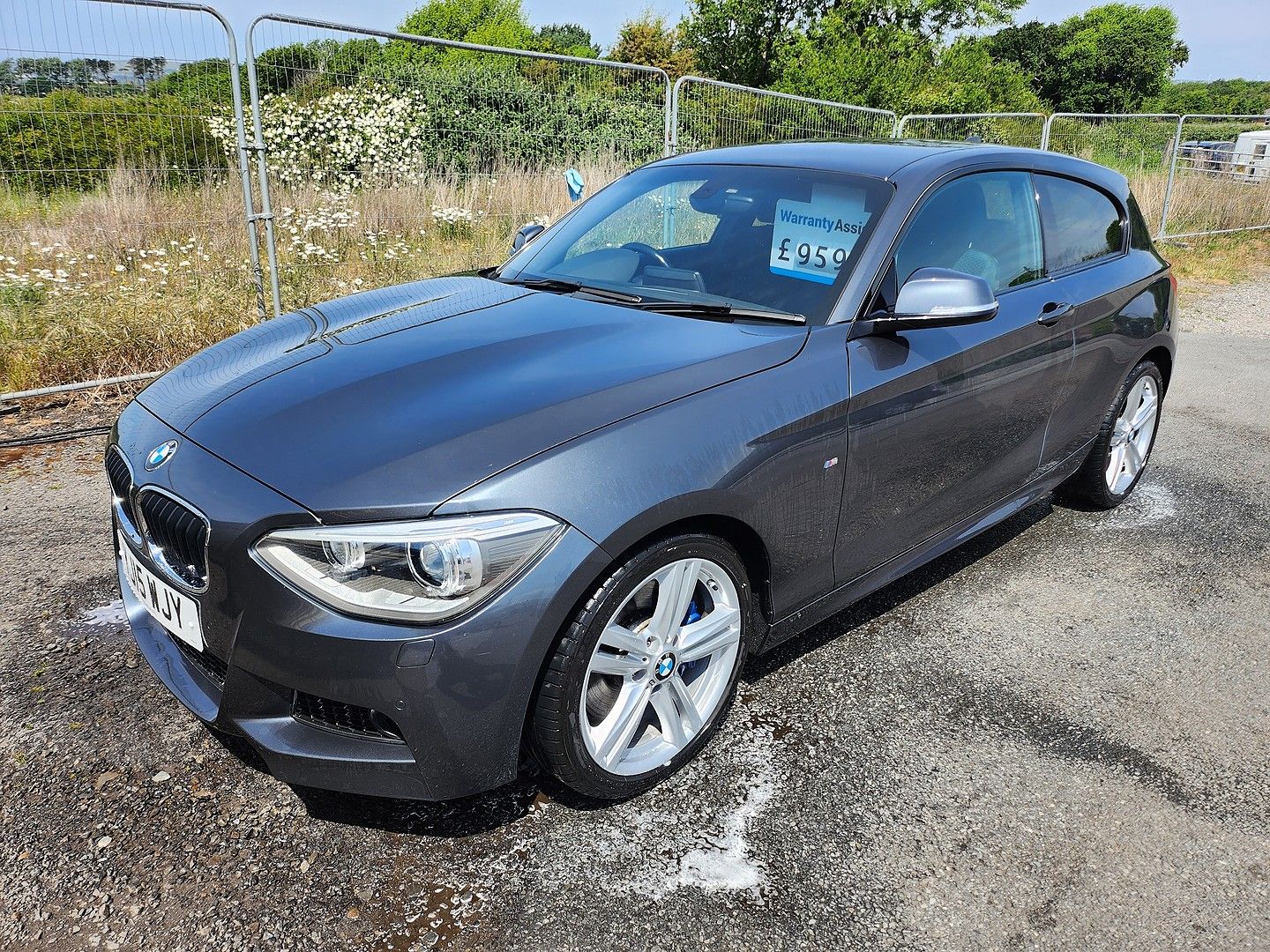

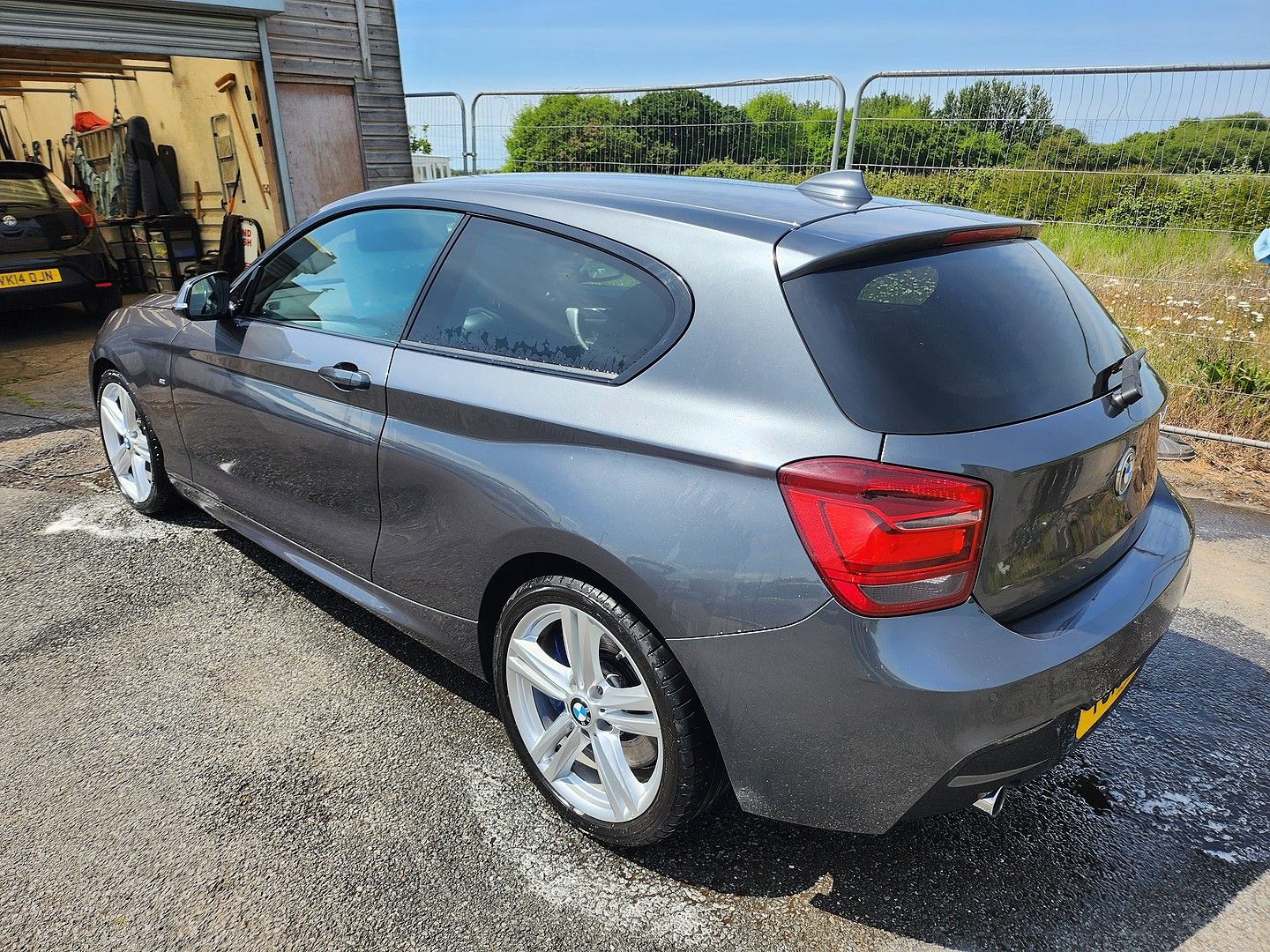

Three door hatchback ; Platform code: F20, Right hand drive
Cargo area cover/rear parcel shelf
Rigid cargo area cover/rear parcel shelf
Charges
Charges: VAT [20%] = 3,940.00, VED (Band C) = 30.00, FRF = 55.00, Showroom Tax = 0.00, Additional Charges (GB) = 25.00
Data completeness
Data completeness: up to date pricing data, up to date data for key leasing items, specifications data from official documentation, up to date colour & trim data, up to date option pricing data and up to date option content data
Date introduced
Date introduced: Model introduced 06 Jun 2011 and Version introduced 01 Jul 2012
Delivery charges
Fixed delivery charges: 700.00, 583.33 (excluding VAT) fuel included 0 litres
Global segment
Global segment
Insurance
Insurance: 20
Owner Transferable
Owner transferable warranty
Regional segment
Regional segment
Seat belt warning
Seat belt warning
Trim
M Sport trim level - JATO classification: S2
Warranty anti-corrosion
Anticorrosion warranty: 144 months, Unlimited miles, Unlimited km
Warranty paint
Paint warranty: 36 months, Unlimited miles, Unlimited km
Warranty powertrain - OEM
Manufacturers powertrain warranty: 36 months, Unlimited km, Unlimited miles
Warranty powertrain - Total
Powertrain warranty: 36 months, Unlimited miles, Unlimited km
Warranty roadside assistance
Road-side assistance warranty: 36 months, Unlimited miles, Unlimited km
Warranty whole vehicle - OEM
Manufacturers whole vehicle warranty: 36 months, Unlimited km, Unlimited miles
Warranty whole vehicle - Total
Vehicle warranty: 36 months, Unlimited miles, Unlimited km

Safety

ABS
ABS
Automatic hazard lights
Automatic hazard lights
Brake assist system
Brake assist system
Cornering brake control
Cornering brake control
Crash test results
Euro NCAP crash test results: Overall: 5.00, Adult occupant: 91.00, Child occupant: 83.00, Pedestrian: 63.00, Safety assist: 86.00, Version tested: BMW 116 5dr HA, Date tested: 26 Oct 2011
Disc brakes
Four disc brakes including two ventilated discs
Electronic brake distribution
Electronic brake distribution
Electronic traction control
Electronic traction control
Front airbag
Intelligent drivers airbag, intelligent passengers airbag with de-activation switch
Front seat belts
Seat belt with pre-tensioners on drivers seat and front passenger seat
Head restraints
Two head restraints on front seats with height adjustment, three head restraints on rear seats with height adjustment
Headlight control
Headlight controlsystems: dusk sensor and height adjustment
Headlights
Halogen headlights with complex surface lenses
Isofix preparation
Isofix preparation
Low tyre pressure indicator
Low tyre pressure indicator with rim mounted sensor displays pressure
Rear seat belts
Seat belt on driver side rear seat, seat belt on passenger side rear seat, 3-point seat belt on central rear seat
Side airbag
Front side airbag
Side curtain airbag
Front and rear side curtain airbags
Stability control
Stability controlsystem

Security

Anti-theft protection
Anti-theft protection with interior monitoring

Technical

Alternative suspension
Sports suspension
Compressor
Turbo-charger
Drive
Rear-wheel drive
Emission control level
Emissions: EU5 compliant and 115 g/km CO2 (max)
Energy recuperation
Regenerative brakes
Engine

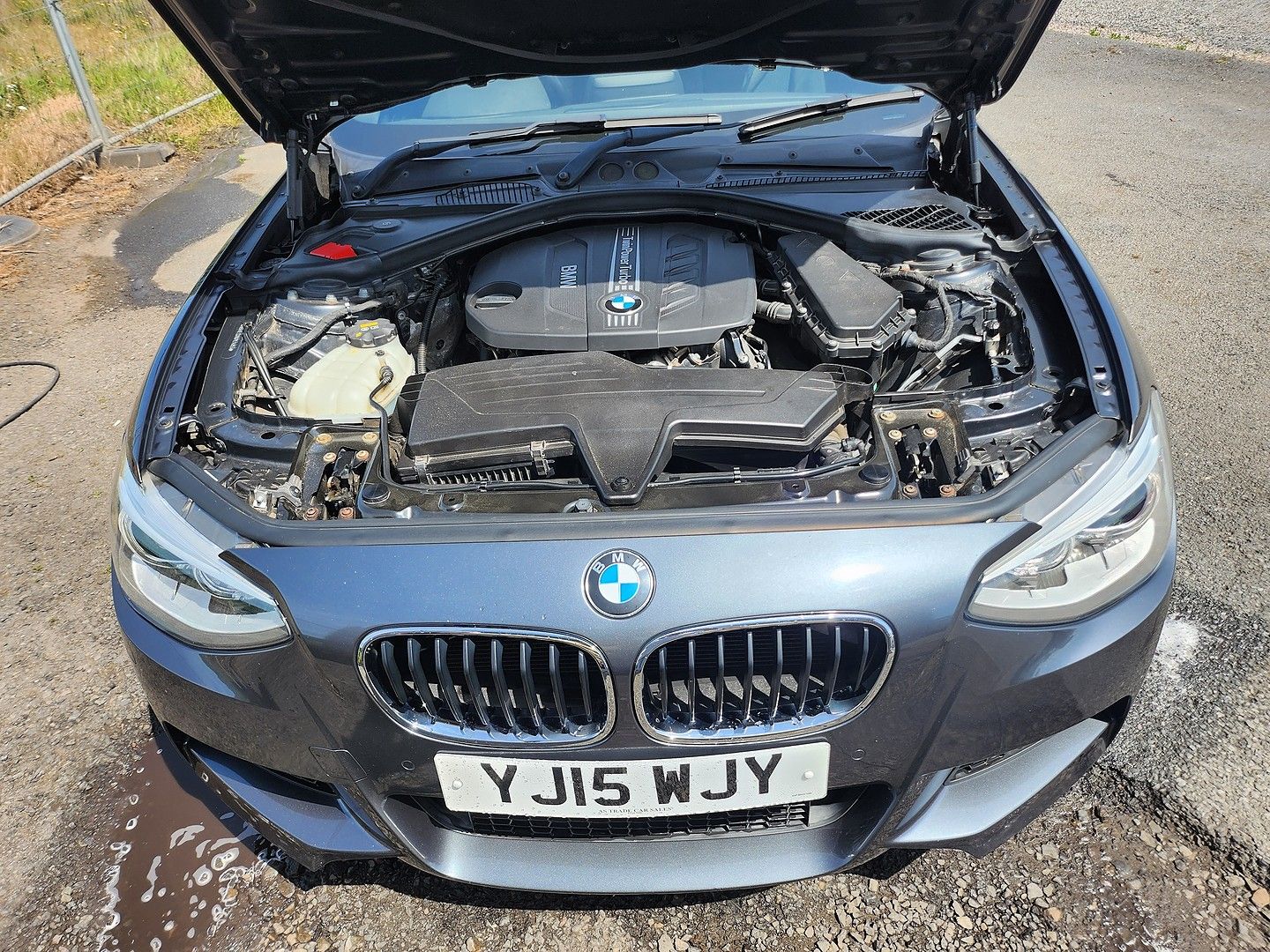

1,995 cc 2.0 litres in-line 4 engine with 84.0 mm bore, 90.0 mm stroke, 16.5 compression ratio, double overhead cam and four valves per cylinder Engine code: N47D20U0
Fuel
Primary fuel type: diesel
Fuel consumption
Fuel consumption: 5.4 l/100km (urban), 3.8 l/100km (country/highway), 4.4 l/100km (combined), 44 mpg (urban US), 62 mpg (country/highway US), 53 mpg (combined US), 18.5 km/l (urban), 26.3 km/l (country/highway), 22.7 km/l (combined), 52 mpg (urban UK), 74
Fuel system
Fuel system: common rail diesel
Hill holder
Hill holder
Limited slip differential
Rear electronic limited slip differential
Main service
Main service required after variable distance/period
Particle filter system
Particle filter system
Performance
Performance: maximum speed 132 mph, 212 km/h acceleration 8.9 seconds (0-100 km/h)
Power
Power: (from primary fuel) 105 kW , 143 HP EEC @ 4,000 rpm; , 320 Nm @ 1,750 rpm
Power steering
Power steering: type
Powertrain
Powertrain: internal combustion engine
Powertrain type
Powertrain: internal combustion engine
Speed limiter
Speed limiter
Suspension
Independent strut front suspension with anti-roll bar and coil springs, independent multi-link rear suspension with anti-roll bar and coil springs
Traffic light coding
Traffic light coding: efficiency label C
Transmission
Transmission: 6-speed manual featuring gear lever mounted on the floor
